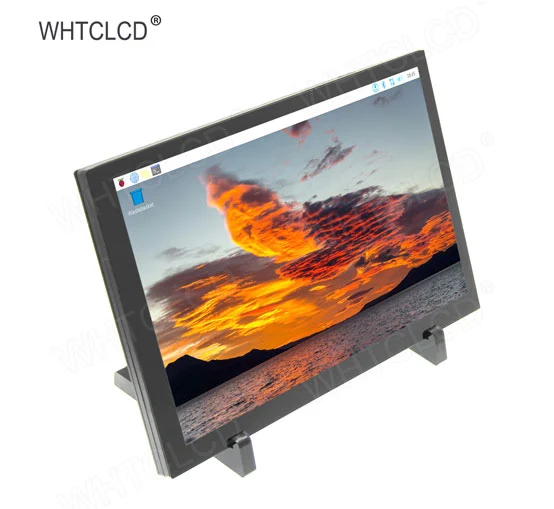

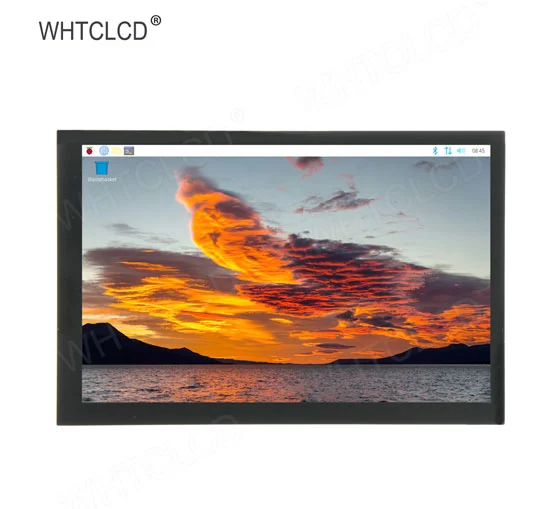

MPI1008 10.1 Raspberry Pi HDMI LCD Display

Parameters of 10.1 Inch Raspberry Pi LCD

Raspberry Pi HDMI LCD Display
Remark: All Models Support Capacitive or Resistive Touch Panel.
Size (inch)	Resolution	Model	View	Interface	Product Size (mm)	Active Area (mm)	Audio	Touch panel	Power	OP(℃)
10.1	1280*800	MPI1008	IPS	HDMI	239.4157.412.3	222.72*125.28	NC	CTP	MicroUSB	-20~60°C

SKU	MPI1008
Screen Type	IPS screen
Screen Size	10.1 inch
Resolution	1280 x 800
Backlight adjustment	Key switch adjustment
Touch Screen Type	Capacitive Touch Screen
Touch IC	GT911
Power	MicroUSB（5V）
Module overall power	5.2942W (100% brightness)
Video Input Interface	HDMI(up to 1080p)
Active Area	216.566*135.36 (mm)
Module Size (L x W x H)	239.4157.412.3 ±0.2 (mm)
Packaging Size (L x W x H)	29519570 (mm)
Product weight (including package)	892g

Features of 10.1 Raspberry Pi HDMI LCD Display

10.1inch IPS full Angle display

The viewing Angle is large

true color

picture quality is excellent

1280X800 resolution

HD vision

The display is very delicate

New touch panel

Tempered glass cover

Hardness up to 6H, more durable and more scratch resistant

High sensitivity capacitive touch screen

Accurate touch

Support up to 5 touch points

HDMI interface

HD input

Can be used as HDMI display

Support multiple device access

Can be connected to mainstream development boards such as raspberry pie, banana PI and BB black

Can be connected to PS4, XBOX360, switch and other mainstream game consoles

Can be connected to mainstream TV box and digital camera (display only)

Support multiple system display

Support raspbian, Kali Linux, Ubuntu, Kodi, win10 IOT and other systems, touch free drive

Support win7/8/10/11 and other systems, touch drive free

Passed CE and ROHS certification

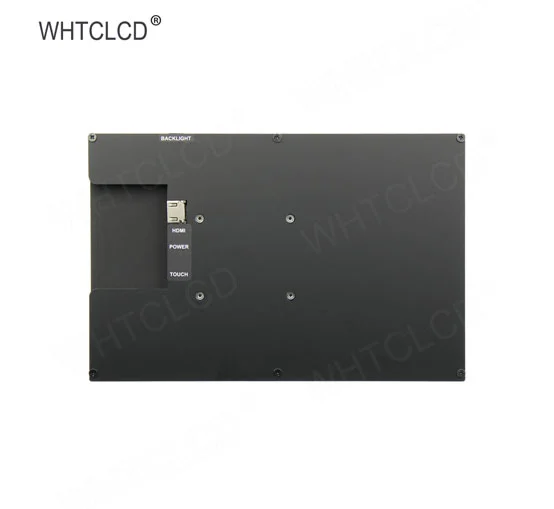

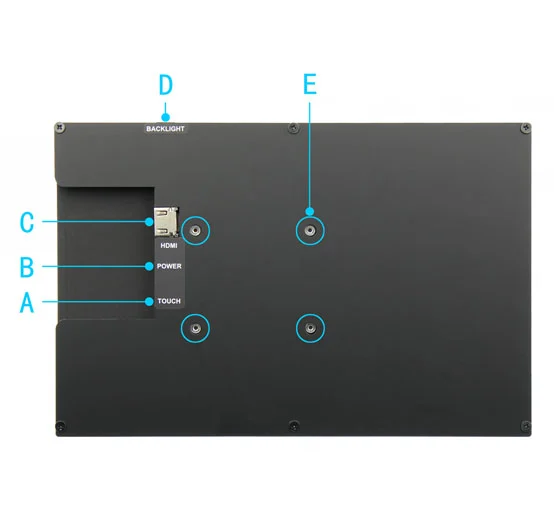

Hardware Description of 10.1 Raspberry Pi HDMI LCD Display

stm32 microcontroller board

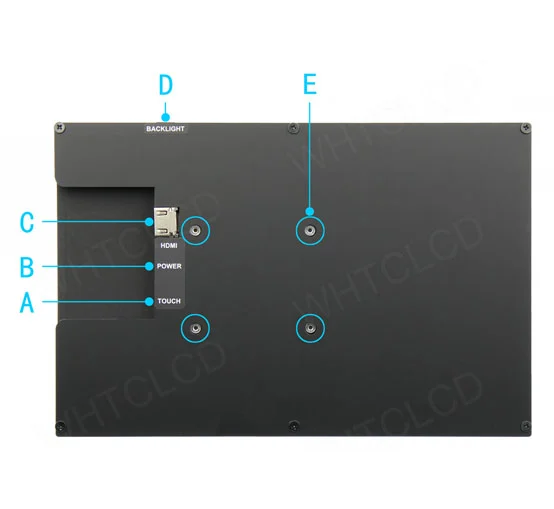

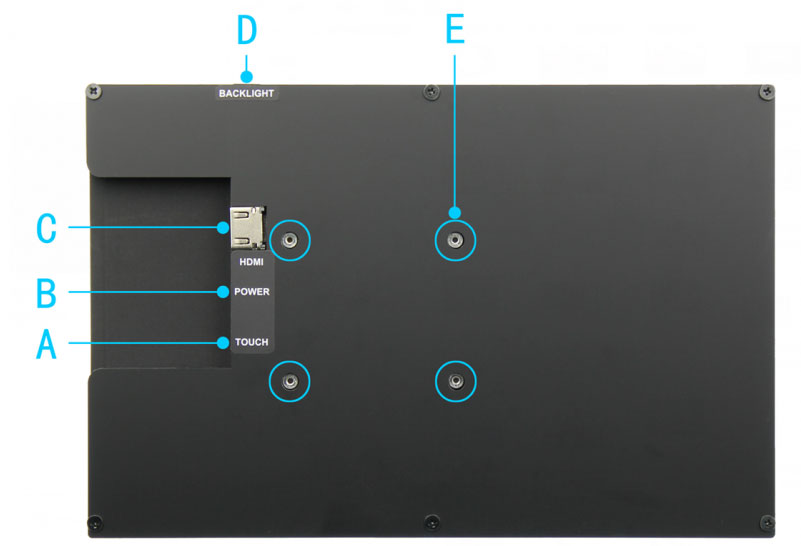

Hardware capabilities

KEY and Interface	DESCRIPTION
A: Touch touch interface	Micro USB cable is used to connect with the signal source device. This interface is used for touch and power supply
B: Power interface	Using micro USB cable and power connection, this interface is only used for power supply
C: HDMI interface	Use HDMI cable to connect with signal source equipment, and the maximum supported resolution is 1080p
D: Side key	It is used to adjust the brightness. Press once to increase the brightness by 10%. After reaching 100%, press once again to return to 10%; Press and hold for 3 seconds to turn off the backlight, and then press again to restore the original brightness

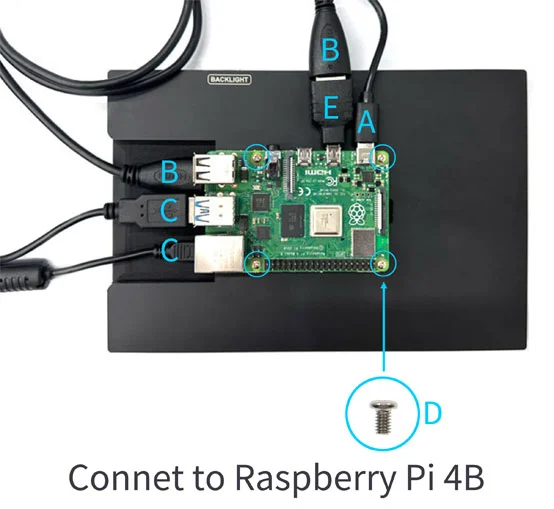

E: Copper pillar	Used to fix raspberry pie (M2.5)

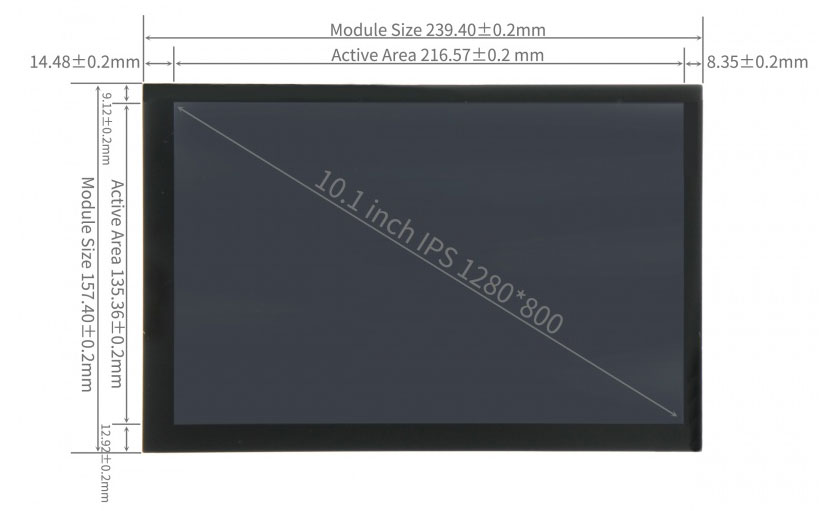

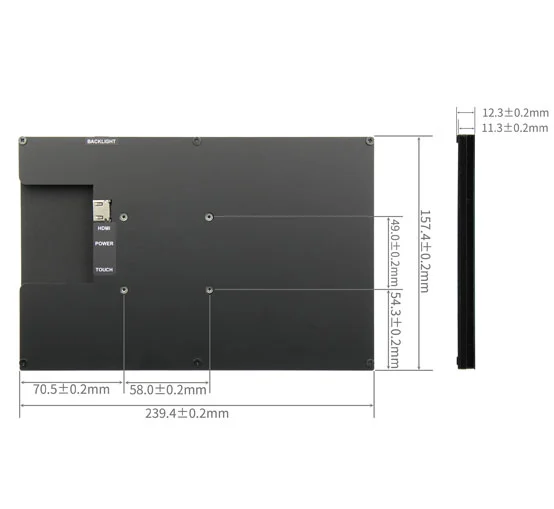

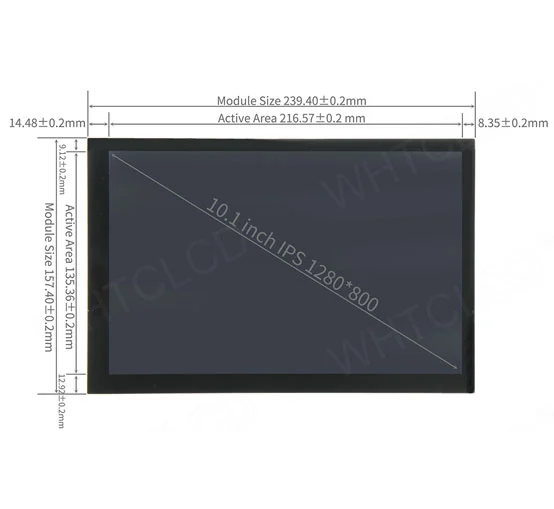

Product Size of 10.1 Raspberry Pi HDMI LCD Display

stm32 microcontroller development board
