W070P40H1MI-J03B0 7 Inch Sunlight Readable LCD Display

Name: W070P40H1MI-J03B0 7 Inch Sunlight Readable LCD Display
Brand: Shenzhen Wu He Tian Cheng Technology Co., Ltd.

W070P40H1MI is a transmissive type color active matrix liquid crystal display this product composedof a TFT LCD panel, a driver IC, a FPC, and a LED-backlight unit. The active display area is 154.21*85.92 and the native resolution is 1024*600 and can display up to 262K/16.7M colors, Applications: wire tester, sphygmomanometer, ECG machine, Robots,Handheld devices, Automotive instrument, recorder and industrial display.

Products

Parameters of 7 Inch Sunlight Readable LCD Display

Size(inch)	Resolution	Model	LCM Dimension(mm)	Active Area(mm)	View	Interface	Brightness(nits)	OP(℃)
7	1024*600	W070P40H1MI-J03B0	1641033.5	153.6*86.64	IPS	MiPi	260~1500	-20~70°C

General Specifications of 7 Inch Sunlight Readable LCD Display

W070P40H1MI-J03B0

Feature	Specifications	Unit
Size	7	inch
Technology Type	a-si TFT
Resolution	1024(RGB)x600
Pixel pitch	~	mm
Pixel arrangement	RGB-stripe
Color Depth	262K/16.7M
Display Mode	TFT,Transmissive,Normally black
Driver IC	~
Surface Treatment	`
Viewing Direction	IPS
Gray Viewing Direction	`

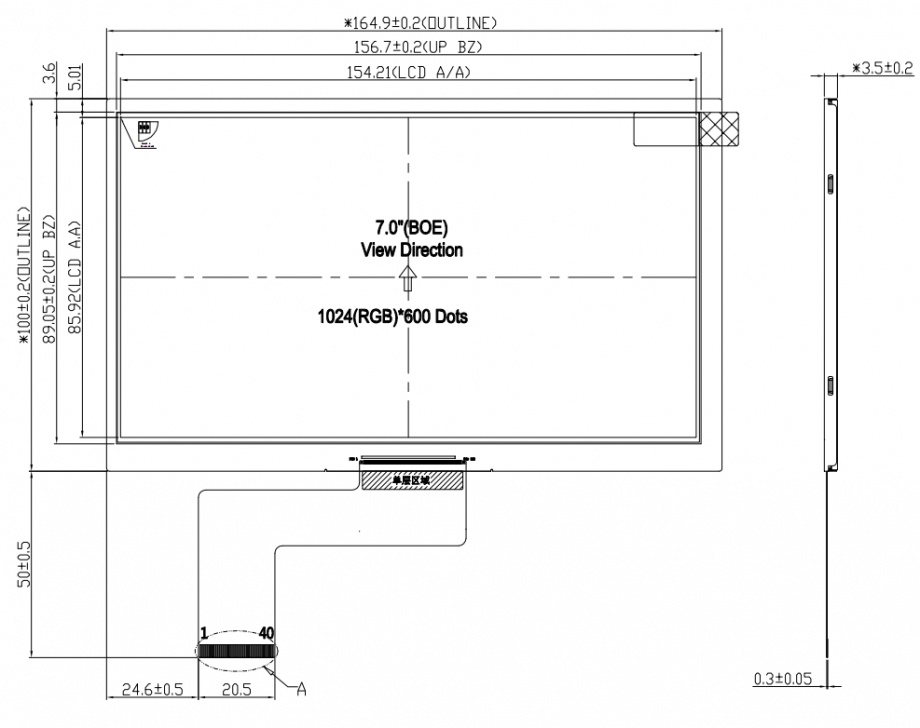

LCM (W x H x D) (mm)	165(W)x100(H)x3.5(T)	mm
Active Area(mm)	154.21 (W) x 85.92(H)	mm
Touch Panel	Support CTP/RTP
Brightness	300~1000	nits
Weight (g)	`	g
Interface	MiPi FPC 40pin
Operation Temperature	-20~70	℃
Storage Temperature	-30~85	℃
Module lifetime(Hours)	50,000-100,000	℃

No.	Item	Specification	Unit
1	Panel Size	7"	inch
2	Number of Pixels	1024(H)×3(RGB)×600(V)	pixels
3	Active Area	154.2144(H)×85.92(V)	mm
4	Pixel Pitch	0.0502 (H)×0.1432 (V)	mm
5	OutlineDimension	164.9(H)×100(V)×3.5(T)	mm
6	Pixel arrangement	RGB vertical stripe	-
7	Display Mode	Normally White
8	Viewing Direction	6 o'clock	-
9	Display Color	16.7M	-
10	Luminance(cd/m2)	250(TYP.)	nit
11	Contrast Ratio	800(TYP.)	-
12	Surface Treatment	Anti-Glare	-
13	nterface	MIPI	-
14	Backlight	White LED
15	OperationTemperature	-20-70	℃
16	StorageTemperature	-30-80	℃
