MRB3511 3.5 Inch Parallel-Port Display Module(CTP)

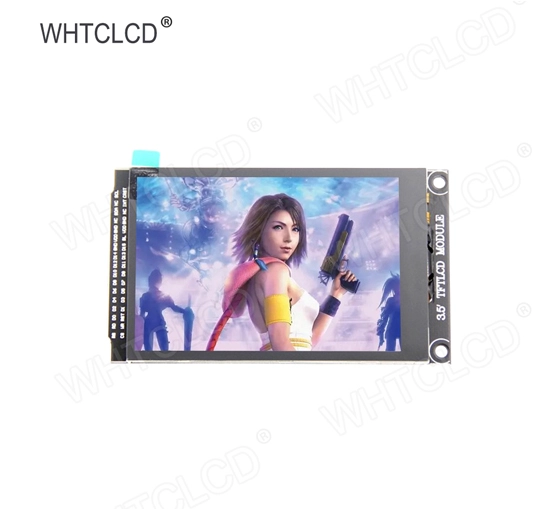

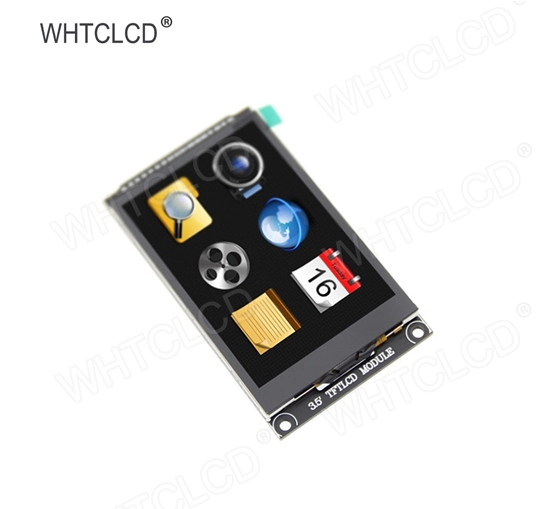

Name: MRB3511 3.5 Inch Parallel-Port Display Module(CTP)
Brand: Shenzhen Wu He Tian Cheng Technology Co., Ltd.

3.5-inch color screen, support 16BIT RGB 65K color display. 320x480 resolution for clear display. With capacitive touch screen for 5-point touch. Support 8-bit/16-bit parallel data bus mode switching (16 bits by default). Military-grade process standards, long-term stable work. Support punctual atom full range of development board inline, provide routines. Provide STM32/C51 source code, WIKI data online update. Provide underlying driver technical support.

Products

Parameters of 3.5 Inch Parallel-Port Display Module(CTP)

Size (inch)	Resolution	Model	View	Interface	Product Size (mm)	Active Area (mm)	Audio	Touch panel	Power	OP(℃)
3.5	320*480	MRB3511	IPS	parallel	56.4197.6010	48.96*73.44	NC	CTP	5V/3.3V	-20~60°C

Name	Parameter
Display Color	16BIT RGB 65K color
SKU	MRB3511
Screen Size	3.5(inch)
Screen Type	TFT
Driver IC	ILI9488
Resolution	320*480 (Pixel)
Module Interface	8Bit or 16Bit parallel interface
Active Area	48.96x73.44 (mm)
Touch Screen Type	Capacitive touch screen (maximum support for 5 touches)
Touch IC	GT911
Module PCB Size	56.41x97.60 (mm)
Operating Temperature	-10℃~60℃
Storage Temperature	-20℃~70℃
Operating Voltage	3.3V/5V
Power Consumption	TBD
Rough Weight	57g

Hardware Description of 3.5 Inch Parallel-Port Display Module(CTP)

transflective display raspberry pi

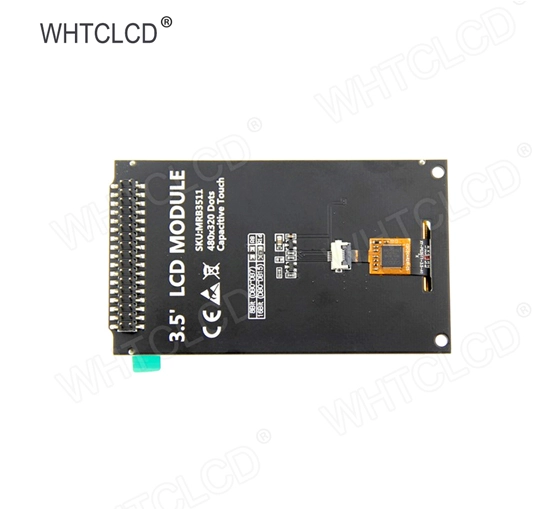

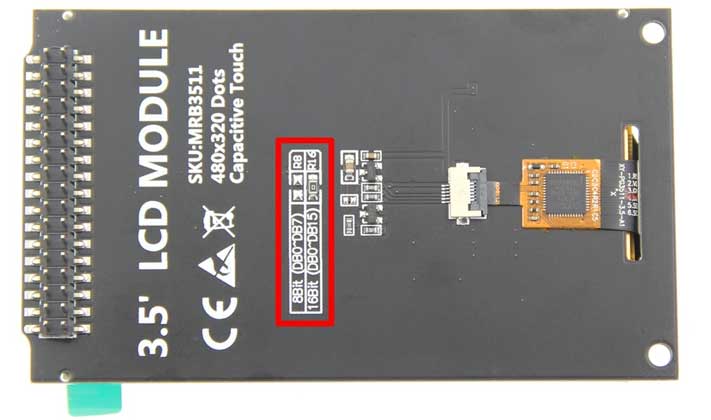

The module hardware supports 8-bit and 16-bit parallel port data bus mode switching (shown in red box in Picture 2), as follows:

Solder R16 with 0Ω resistor or short circuit directly, and disconnect R8: Select 16-bit parallel port data bus mode, use DB0~DB15 data pins(default)
Solder R8 with 0Ω resistor or short circuit directly, and disconnect R16: Select 8-bit parallel port data bus mode, use DB0~DB7 data pins

Number	Module Pin	Pin Description
1	CS	LCD reset control pin (low level enable)
2	RS	LCD register/data selection control pin (high level: register, low level: data)
3	WR	LCD write control pin
4	RD	LCD read control pin
5	RST	LCD reset control pin (low level reset)
6	DB0	LCD data bus low 8-bit pin
7	DB1
8	DB2
9	DB3
10	DB4
11	DB5
12	DB6
13	DB7
14	DB8	LCD data bus high 8-bit pin (When using the 8-bit parallel port data bus mode, the upper 8-bit pin is not used.)
15	DB9
16	DB10
17	DB11
18	DB12
19	DB13
20	DB14
21	DB15
22	GND	Module power ground pin
23	BL	LCD backlight control pin (High level light)
24	VDD	Module power positive pin (module has integrated voltage regulator IC, so the power supply can be connected to 5V or 3.3V)
25	VDD
26	GND	Module power ground pin
27	GND	Module power ground pin
28	NC	LCD backlight power positive pin (default shared onboard backlight power supply, this pin can not be connected)
29	NC	Not defined, no need to use
30	SDA	Capacitive touch screen IIC bus data pin
31	INT	Capacitive touch screen interrupt detection pin (low level when a touch occurs)
32	NC	Not defined, no need to use
33	CRST	Capacitive touch screen IC reset control pin (low level reset)
34	SCL	Capacitive touch screen IIC bus clock pin

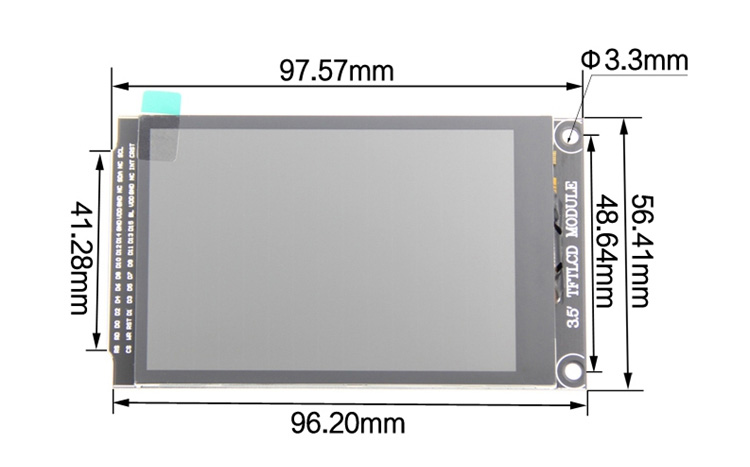

Product Size of 3.5 Inch Parallel-Port Display Module(CTP)
