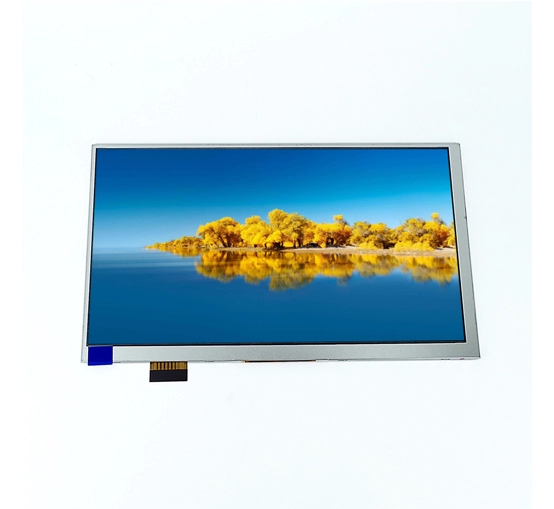

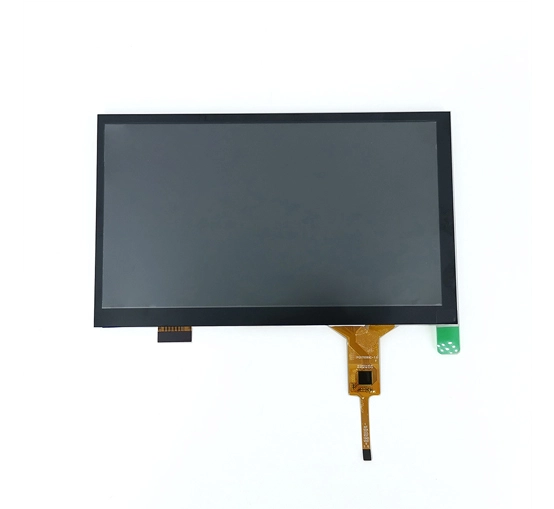

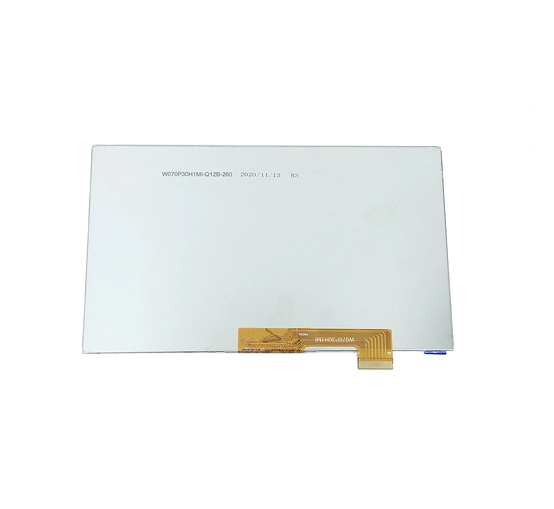

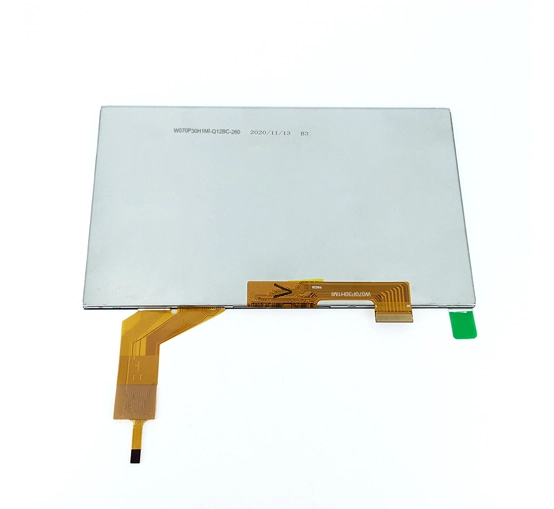

W070P30H1MI-J03B0 7.0 Inch IPS TFT LCD

Name: W070P30H1MI-J03B0 7.0 Inch IPS TFT LCD
Brand: Shenzhen Wu He Tian Cheng Technology Co., Ltd.

7.0 Inch IPS TFT LCD is a transmissive type color active matrix liquid crystal display this product composedof a TFT LCD panel, a driver IC, a FPC, and a LED-backlight unit. The active display area is 154.21 * 85.92 and the native resolution is 800*480 and can display up to 262K/16.7M colors, Applications: wire tester, sphygmomanometer, ECG machine, Robots,Handheld devices, Automotive instrument, recorder and industrial display.

Products

Parameters of 7.0 Inch IPS TFT LCD

Size(inch)	Resolution	Model	LCM Dimension(mm)	Active Area(mm)	View	Interface	Brightness(nits)	OP(℃)
7	1024*600	W070P30H1MI-J03B0	163.8972.6	154.21*85.92	IPS	MiPi	260~1500	-20~70°C

Interface signals of 7.0 Inch IPS TFT LCD

W070P30H1MI-J03B0

Pin No.	Symbol	Function	Remark
1--2	LED+	LED Anode
3	VGH	Gate ON Voltage
4	VGL	Gate OFF Voltage
5	UPDN	Gate Up or Down scan control
6	SHLR	Source Right or Left sequence
7--8	LED-	LED Cathode
9	AVDD	Power for Analog Circuit
10	GND	Ground
11	RXIN3P	MIPI Data lane3 input
12	RXIN3N	MIPI Data lane3 input
13	GND	Ground
14	RXIN2P	MIPI Data lane2 input
15	RXIN2N	MIPI Data lane2 input
16	GND	Ground
17	RXCLKP	MIPI CLK input
18	RXCLKN	MIPI CLK input
19	GND	Ground
20	RXIN1P	MIPI Data lane1 input
21	RXIN1N	MIPI Data lane1 input
22	GND	Ground
23	RXIN0P	MIPI Data lane0 input
24	RXIN0N	MIPI Data lane0 input
25	GND	Ground
26	STBYB	Standby mode
27	RESET	Global reset pin
28	VDD	Power Supply (1.8V)
29	VDD	Power Supply (1.8V)
30	VCOM	Common Voltage

General Specifications of 7.0 Inch IPS TFT LCD

W070P30H1MI-J03B0

Feature	Specifications	Unit
Size	7	inch
Technology Type	a-si TFT
Resolution	1024(RGB)x600
Pixel pitch	~	mm
Pixel arrangement	RGB-stripe
Color Depth	262K/16.7M
Display Mode	TFT,Transmissive,Normally black
Driver IC	~
Surface Treatment	`
Viewing Direction	IPS
Gray Viewing Direction	`
LCM (W x H x D) (mm)	163.8(W)×97(H)×2.6(D) mm	mm
Active Area(mm)	154.21(W)×85.92(H) mm	mm
Touch Panel	Support CTP/RTP
Brightness	300	nits
Weight (g)	`	g
Interface	MiPi FPC 30pin
Operation Temperature	-20~70	℃
Storage Temperature	-30~85	℃
Module lifetime(Hours)	50,000-100,000	℃

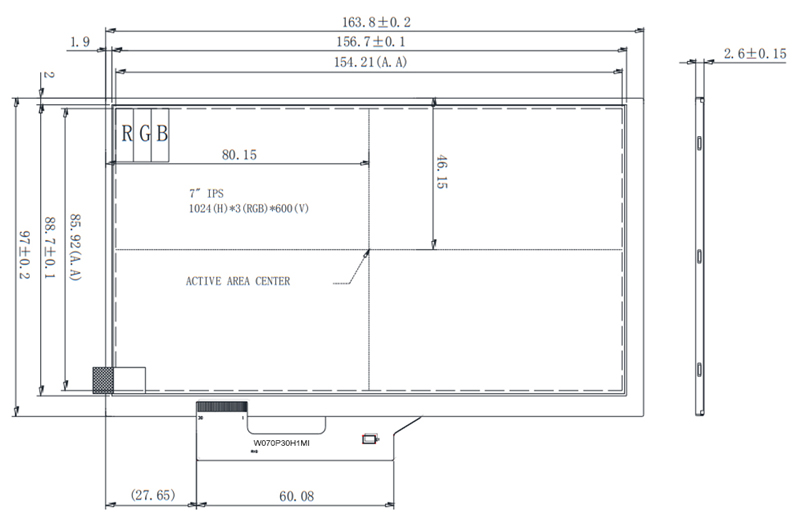

Structural Size of 7.0 Inch IPS TFT LCD

W070P30H1MI-J03B0

7.0 Inch IPS TFT LCD
