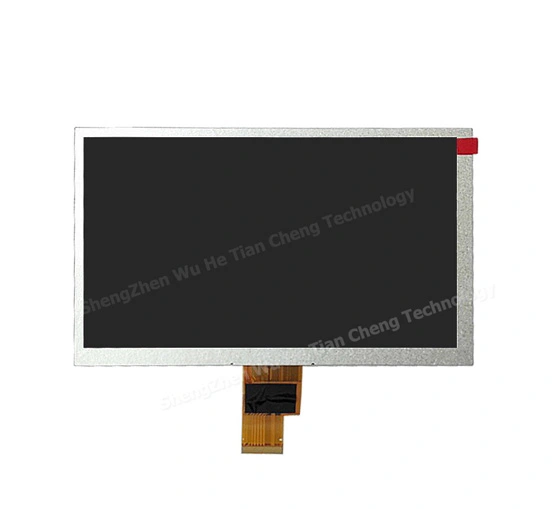

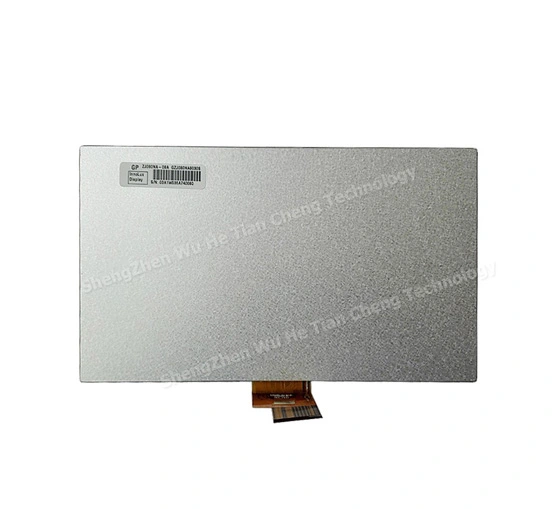

ZJ080NA-08A 8.0 Inch INNOLUX LCD Panel

Name: ZJ080NA-08A 8.0 Inch INNOLUX LCD Panel
Brand: Shenzhen Wu He Tian Cheng Technology Co., Ltd.

Innolux 8 inch tft lcd ips panel ZJ080NA-08A with 1024(RGB)x600 WVGA resolution, brightness 500 cd/m². This lcd display is working temperature is -20 ~ +70 (°C) and it's storage temperature is -30 ~ +85 (°C). Based on it's white LED backlight. This model is recommended for industrial use and Outdoor Highlight.

Compatible resistive touch and capacitive touch options are available. Additionally, we provide a matched LCD controller board.

Products

Parameters of ZJ080NA-08A 8.0 Inch INNOLUX LCD Panel

Size(inch)	Resolution	Model	LCM Dimension(mm)	Active Area(mm)	View	Interface	Luminance(cd/m2)	OP(℃)
8	1024*600	ZJ080NA-08A	192.8116.96.7	176.64*99.36	TN	LVDS	500	-20~70°C

General Specifications of ZJ080NA-08A 8.0 Inch INNOLUX LCD Panel

ZJ080NA-08A

Manufacturer	INNOLUX
Model Name	ZJ080NA-08A
Screen Size	8 inch
Pixel Number	1024(RGB)×600 , WVGA
Active Area(mm)	176.64 x 99.36 (H×V)
Outline(mm）	192.8 x 116.9 x 6.7 (H×V×D)
Pixel Pitch(mm)	0.1905 x 0.1905 (H×V)
Treatment	AG type, 3H hard coating
Luminance	500 cd/m² (Typ.)
Contrast Ratio	800 : 1 (Typ.) (TM)
Viewing Angle	89/89/89/89(CR≥10) Left / Right/UP /Down
Response time	13/12 (Typ.)(Tr/Td) ms
Display Mode	AAS , Normally black , Transmissive
Color Depth	262K/16.7M , 59% NTSC
Backlight	WLED , 50K hours , with LED Driver
Net Weight	196.0g
Touchscreen	without
Signal Type/interface Type	LVDS (1 ch, 6/8-bit) , 40 pins
Voltage Supply	+3.3 V
Max. Ratings	Storage Temp.: -30 ~ +85 (°C)
Max. Ratings	Operating Temp.: -30 ~ +80 (°C)
Package	InnoluxOriginal package;
Package	38 pcs/ctn
