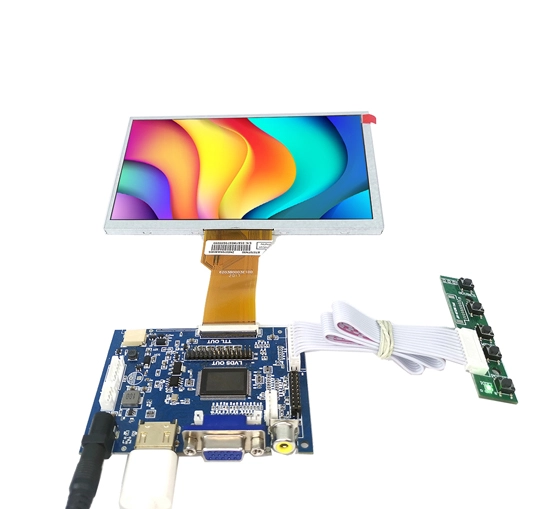

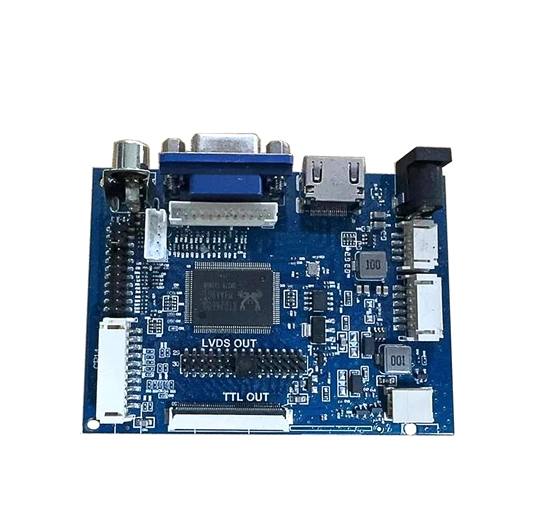

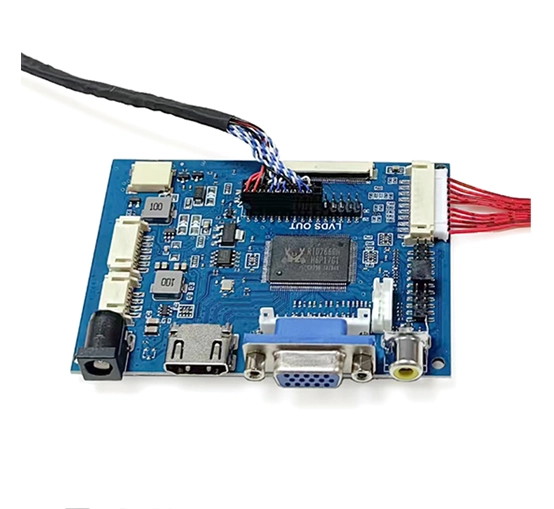

PCB800099-V.9 RGB TTL LCD Controller Board

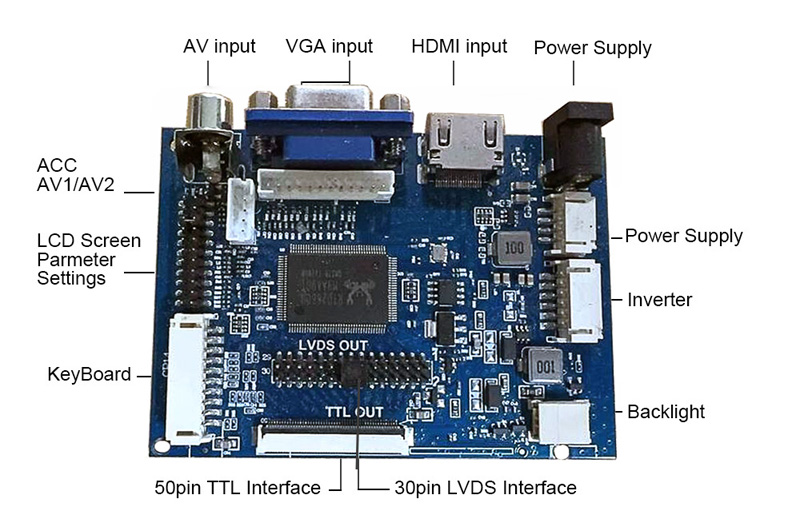

Parameters of PCB800099-V.9 RGB TTL LCD Controller Board

No.	Model	Parameter	interface	Touch	power supply
1	PCB800099-V.9	HDMI / VGA / AV Signal input; Supports multiple resolutions, Supports 5 / 7 / 8 / 9 / 10.1 / 10.4 / 15 inch LCD screen	RGB TTL 50pin/ LVDS 30pin	NO	DC12V

General Specifications of PCB800099-V.9 RGB TTL LCD Controller Board

Support more than 30 different LCD screen resolution Settings, the subsequent increase...

1,1 route of VGA signal input

2,2-way AV signal input

3,1 route HDMI signal input, and this IC supports HDMI 1.2

4,1-way reversing signal input

5, supports wide voltage input and can work normally between, 4.5V-20V,

6, standard backlight 6 PIN, interface, can be external high voltage board

7, drive board integrated LCD LED backlight drive board road,

8, standard LVDS signal output, can support single 6, single 8, double 6, double 8 and other standard LVDS signal LCD screen, but only support screen power supply for 3.3V LCD screen

9, standard keyboard interface, and support two-color LED indicator display

10, supporting the TTL signal output,

Support for AT070TN92,

AT065TN14

AT080TN52

AT090TN12

AT090TN10

AT070TN90

AT070TN93

AT070TN94 et al., universal 50 PIN interface TTL LCD screen

Cooperate with our company PCB800602 transfer board

Can effectively support, Chinese color, AUO, Tianma, BOE, Zhonghua and other general 60 PIN definition TTL interface

For example, HSD070IDW1, A070VW04, A080SN01, A104SN01, HSD084IDW1, etc.,

11. Use the LCD transfer panel of PCB800100 or PCB800185 to support the following LCD screen

EJ070NA01-1024X600 resolution

EJ080NA04B-1024X768 resolution

ZJ070NA01, Model of universal 40 PIN high score LCD screen

12, together with PCB800100, you can also support 4. 3,5,6,7 inch, 40 PIN universal screen, defined in AT0543TN24V, 1

13, the maximum output display resolution of this drive board is, 1920X1080 over, 1440X900 display resolution, depending on the working condition of the IC, add the heat sink to reduce the operating temperature of the IC)

14 This IC, support VGA, and HDMI port upgrade

15, This drive board can add remote control function (required through software)

16. This drive board can automatically detect and display the relevant input voltage information- - - - -note. This function is a customized function, and we need to contact the technical department of our company

17, this drive board can support the automatic detection signal switch function, - -this function is a custom function

18, this drive board can be added BNC interface- -need to be customized

19, support the reversing control, and display on the AV 2, the reversing voltage supports the voltage input within 50V

20, This drive plate positioning holes are four,

21, if special requirements, our company can provide other customized services

22, customers need to change the program, need to connect our company, buy the related program download board,

23, Using the company's USB interface program download board, you can add a LOGO on the BIN code

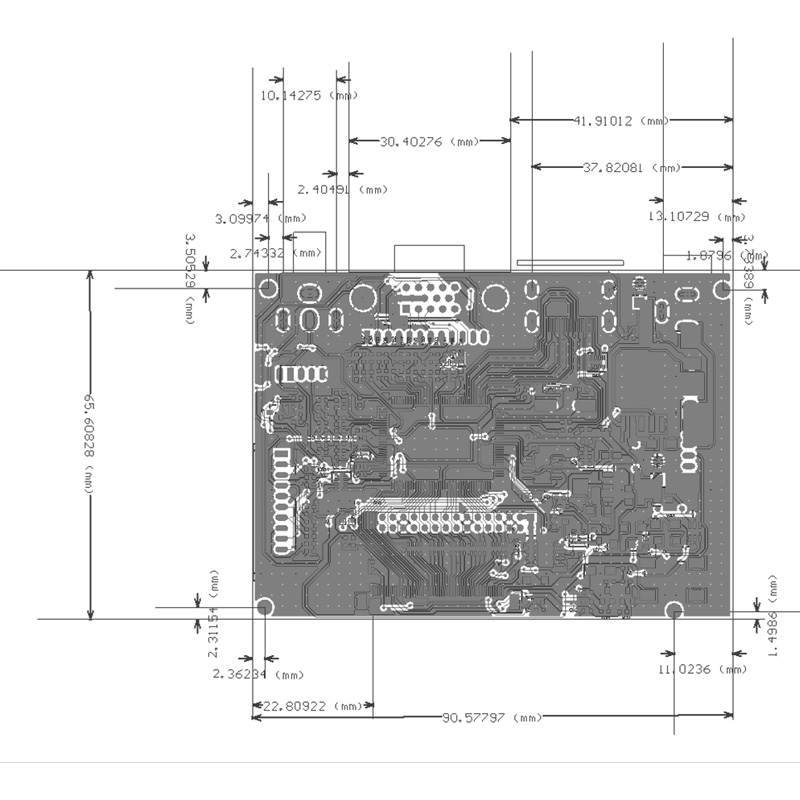

Structural Size of PCB800099-V.9 RGB TTL LCD Controller Board
