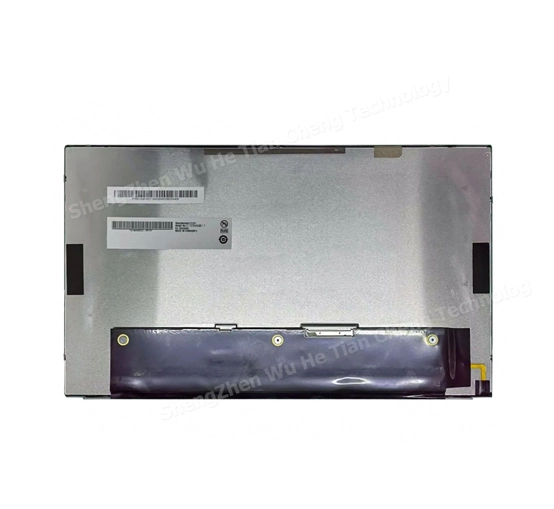

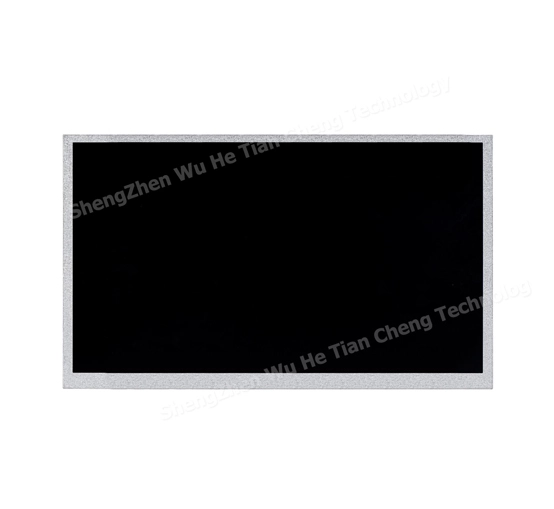

G133XTN01.0 13.3 AUO LCD Panel

Name: G133XTN01.0 13.3 AUO LCD Panel
Brand: Shenzhen Wu He Tian Cheng Technology Co., Ltd.

AUO 13.3 inch tft lcd ips panel G133HAN01.1 with 1920(RGB)x1080 FHD resolution, brightness 400 cd/m². This lcd display's working temperature is -20 ~ +70 (°C) and it's storage temperature is -20 ~ +70 (°C). Based on it's white LED backlight. This model is recommended for industrial, medical imaging and gaming use.

Compatible resistive touch and capacitive touch options are available. Additionally, we provide a matched LCD controller board.

Products

Parameters of G133XTN01.0 13.3 AUO LCD Panel

Size(inch)	Resolution	Model	LCM Dimension(mm)	Active Area(mm)	View	Interface	Luminance(cd/m2)	OP(℃)
13.3	1366*768	G133XTN01.0	306.3197.23	293.42*164.97	IPS	LVDS	300	-20~60°C

General Specifications of G133XTN01.0 13.3 AUO LCD Panel

Manufacturer	AUO
Model Name	G133HAN01.1
Screen Size	13.3 inch
Pixel Number	1920(RGB)×1080 , FHD
Active Area(mm)	293.472 × 165.078 (H×V)
Outline(mm）	309.7(W) × 184.1(H) × 10.1 (H×V×D)
Bezel Area(mm)	295.07(W) × 166.68 (H×V)
Treatment	Anti-glare
Luminance	400 cd/m² (Typ.)
Contrast Ratio	800 : 1 (Typ.) (TM)
Viewing Angle	85/85/85/85 (CR≥10)
Viewing Angle	Left/Right/UP/Down
Response	25 (Typ.)(Tr+Td) ms
Work Mode	AHVA , Normally black , Transmissive
Color Depth	16.7M , 90% NTSC
Backlight	WLED , 50K hours , with LED Driver
Net Weight	500g (Typ.)
Touchscreen	without
Signal Type/interface Type	LVDS (1 ch, 6/8bit) , 20 pins
Voltage Supply	+3.3 V (Typ./Max.)
Max. Ratings	Storage Temp.: -20 ~ +70 (°C)
Max. Ratings	Operating Temp.: -20 ~ +70 (°C)
Package	AUO Original package;
	20 pcs/ctn;
	weight : 10.5Kgs;
	size : 480(L) x 275(W) x 450(H)mm
