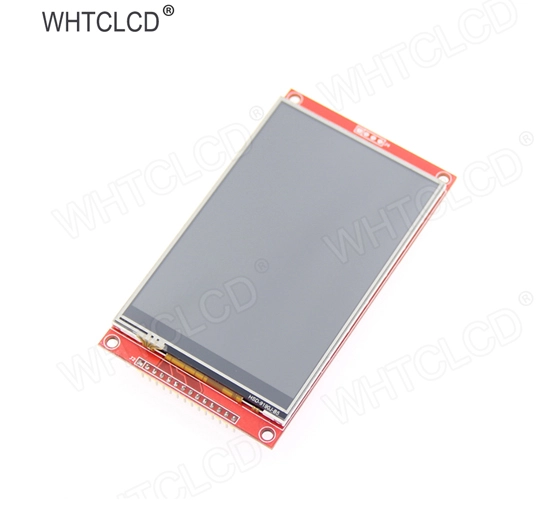

MSP4022 4.0 Inch SPI Disaply LCD Module

Name: MSP4022 4.0 Inch SPI Disaply LCD Module
Brand: Shenzhen Wu He Tian Cheng Technology Co., Ltd.

4.0-inch color screen,support 65K color display,display rich colors. 480X320 resolution, optional touch function. Using the SPI serial bus, it only takes a few IOs to illuminate the display. Easy to expand the experiment with SD card slot. Provide a rich sample program. Military-grade process standards, long-term stable work. Provide underlying driver technical support.

Products

Parameters of 4.0 Inch SPI Disaply LCD Module

Size (inch)	Resolution	Model	View	Interface	Product Size (mm)	Active Area (mm)	Audio	Touch panel	Power	OP(℃)
4	320*480	MSP4022	TN	SPI	61.74108.046	55.68*83.52	NC	NC / RTP	5V/3.3V	-20~60°C

Name	Parameter
Display Color	RGB 65K color
SKU	have touch screen: MSP4022
SKU	have no touch screen: MSP4023
Screen Size	4.0(inch)
Screen Type	TFT
Driver IC	ILI9486
Resolution	480*320 (Pixel)
Module Interface	4-wire SPI interface
Active Area (AA area)	55.68x83.52 (mm)
Module PCB Size	61.74x108.04(mm)
Touch Screen Type	resistive touch screen
Touch IC	XPT2046
VCC power voltage	3.3V~5V
Power Consumption	TBD
Rough Weight(Package containing)	have touch screen: 71g
Rough Weight(Package containing)	have no touch screen: 58g

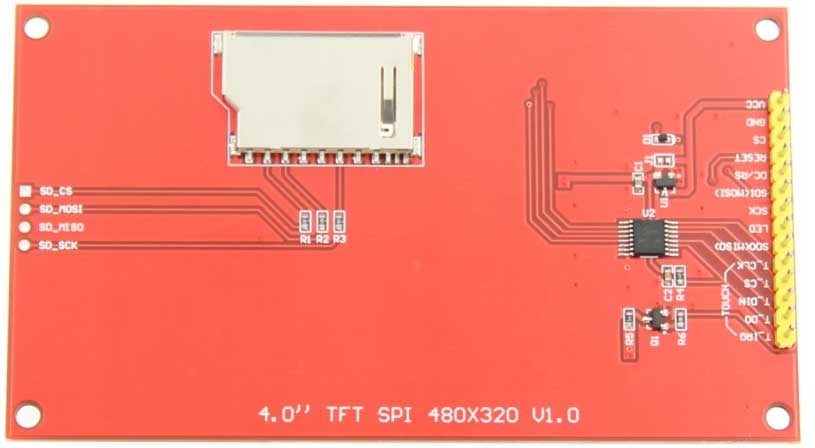

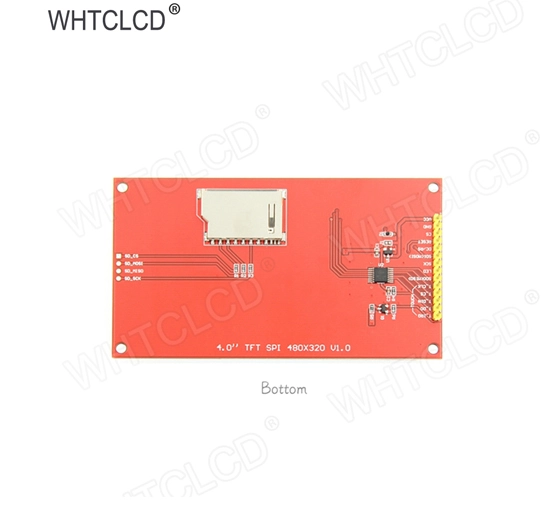

Hardware Description of 4.0 Inch SPI Disaply LCD Module

lcd display using arduino

Number	Pin Label	Description
1	VCC	5V/3.3V power input
2	GND	Ground
3	CS	LCD chip select signal, low level enable
4	RESET	LCD reset signal, low level reset
5	DC/RS	LCD command/data selection signal, high level: command, low level: data
6	SDI(MOSI)	LCD SPI bus write data signal
7	SCK	LCD SPI bus clock signal
8	LED	Backlight control, high level lighting, if not controlled, connect 3.3V always bright
9	SDO(MISO)	SPI bus read data signal, if you do not need to the read function, you can not connect it
(The following is the touch screen signal line wiring, if you do not need to touch function or the module itself does not have touch function, you can not connect them)
10	T_CLK	Touch SPI bus clock signal
11	T_CS	Touch screen chip select signal, low level enable
12	T_DIN	Touch SPI bus input
13	T_DO	Touch SPI bus output
14	T_IRQ	Touch screen interrupt signal, low level when touch is detected

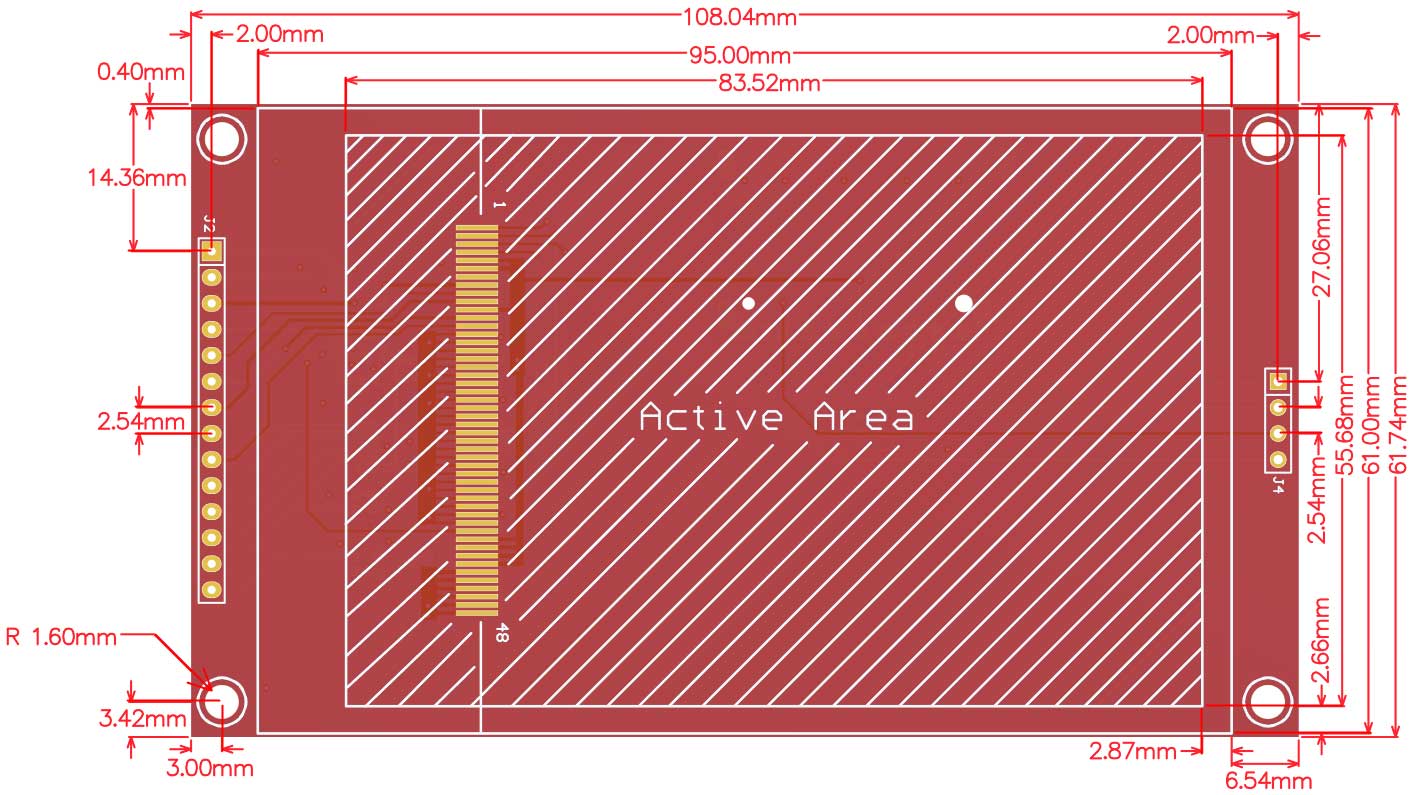

Product Size of 4.0 Inch SPI Disaply LCD Module

lcd display using arduino uno
