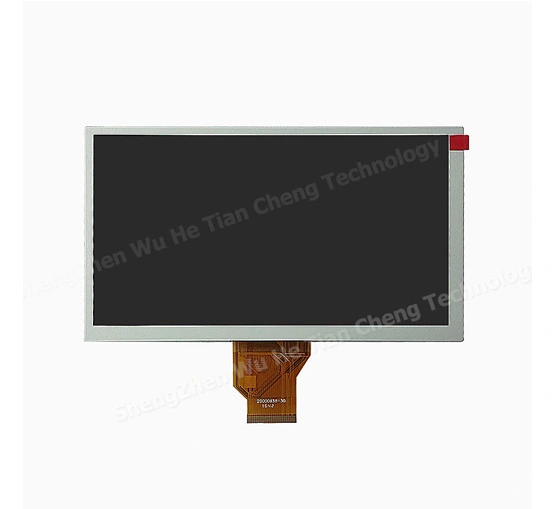

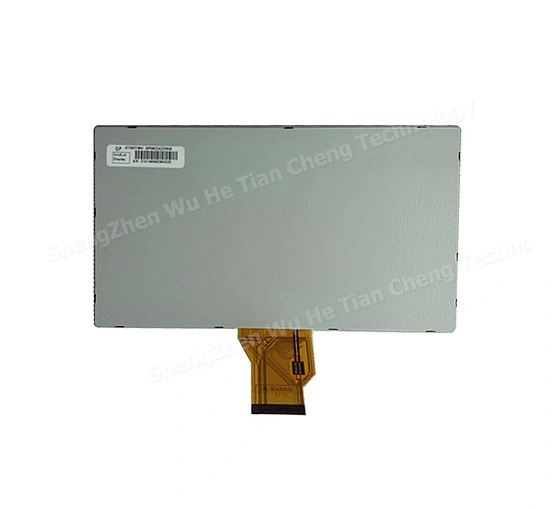

AT080TN64 8.0 Inch INNOLUX LCD Panel

Name: AT080TN64 8.0 Inch INNOLUX LCD Panel
Brand: Shenzhen Wu He Tian Cheng Technology Co., Ltd.

Innolux 8 inch tft lcd panel AT080TN64 with 800(RGB)x480 WVGA resolution, brightness 450 cd/m². This lcd display is working temperature is -30 ~ +85 (°C) and its storage temperature is -30 ~ +85 (°C). Based on its white LED backlight.This model is recommended for industrial use.

Compatible resistive touch and capacitive touch options are available. Additionally, we provide a matched LCD controller board.

Products

Parameters of AT080TN64 8.0 Inch INNOLUX LCD Panel

Size(inch)	Resolution	Model	LCM Dimension(mm)	Active Area(mm)	View	Interface	Luminance(cd/m2)	OP(℃)
8	800*480	AT080TN64	192.8116.96.4	176.64*99.36	TN	RGB	450	-30~85°C

General Specifications of AT080TN64 8.0 Inch INNOLUX LCD Panel

AT080TN64

Manufacturer	INNOLUX
Model Name	AT080TN64
Screen Size	8 inch
Pixel Number	800(RGB)×480 , WVGA
Active Area(mm)	176.64 x 99.36 (W×H)
Outline(mm）	192.8 x 116.9 x 6.4 (W×H×D)
Pixel Pitch(mm)	0.0736 x 0.2070 (W×H)
Treatment	Anti-Glare
Luminance	450 cd/m² (Typ.)
Contrast Ratio	500 : 1 (Typ.) (TM)
Viewing Angle	70/70/50/70(CR≥10) Left / Right/UP /Down
Response	10/15 (Typ.)(Tr/Td) ms
Work Mode	TN , Normally white, Transmissive
Color Depth	262K/16.7M , 50% NTSC
Backlight	WLED , 20K hours, without Driver
Net Weight	245g
Touchscreen	without
Signal Type/interface Type	Parallel RGB (1 ch, 6/8-bit) , FPC , 50 pins
Voltage Supply	+3.3V
Max. Ratings	Storage Temp.: -30 ~ +85 (°C)
Max. Ratings	Operating Temp.: -30 ~ +85 (°C)
Package	Innolux original package;
Package	30 pcs/ctn
