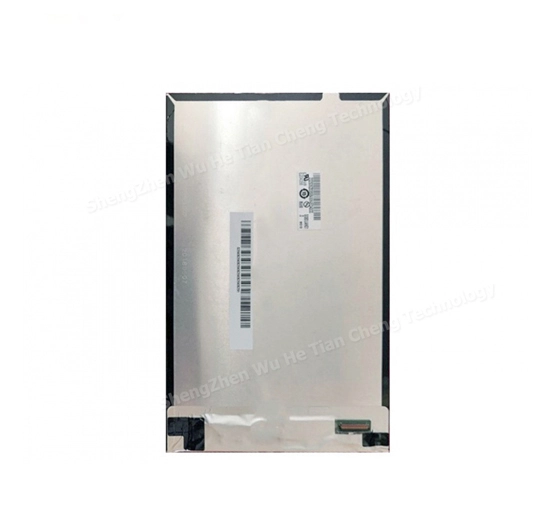

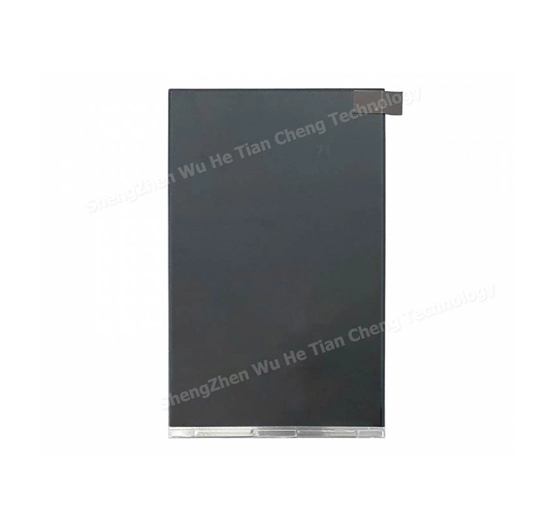

G080UAN01.0 8.0 AUO LCD Panel

Name: G080UAN01.0 8.0 AUO LCD Panel
Brand: Shenzhen Wu He Tian Cheng Technology Co., Ltd.

AUO 8 inch tft lcd ips panel G080UAN01.0 with 1200(RGB)x1920 WUXGA resolution, brightness 500 cd/m². This lcd display's working temperature is -10 ~ +60 (°C) and it's storage temperature is -20 ~ +70 (°C). Based on it's white LED backlight. This model is recommended for industrial use.

Compatible resistive touch and capacitive touch options are available. Additionally, we provide a matched LCD controller board.

Products

Parameters of G080UAN01.0 8.0 AUO LCD Panel

Size(inch)	Resolution	Model	LCM Dimension(mm)	Active Area(mm)	View	Interface	Luminance(cd/m2)	OP(℃)
8	1200*1920	G080UAN01.0	114.8184.3263.95	107.64*172.224	IPS	MIPI	500	-10~50°C

General Specifications of G080UAN01.0 8.0 AUO LCD Panel

Manufacturer	AUO
Model Name	G080UAN01.0
Screen Size	8 inch
Pixel Number	1200(RGB)×1920 , WUXGA
Active Area(mm)	107.64 x 172.224 (H×V)
Outline(mm）	114.8 x 184.3 x 3.95 (H×V×D)
Pixel Pitch(mm)	0.0897 x 0.0897 (H×V)
Treatment	(Haze 25%)，Hard coating (3H)
Luminance	500 cd/m² (Typ.)
Contrast Ratio	1000 : 1 (Typ.) (TM)
Viewing Angle	89/89/89/89 (CR≥10) Left / Right/UP /Down
Response time	27 (Typ.)(Tr/Td) ms
Display Mode	AHVA , Normally black , Transmissive
Color Depth	16.7M , 60% NTSC
Backlight	WLED, 20K hours , without Driver
Net Weight	80.0g
Touchscreen	without
Signal Type/interface Type	MIPI (4 data lanes) , 45 pins
Voltage Supply	+3.3 V
Max. Ratings	Storage Temp.: -20 ~ +70 (°C)
Max. Ratings	Operating Temp.: -10 ~ +60 (°C)
Package	AUO Original package;
Package	40 pcs/ctn
