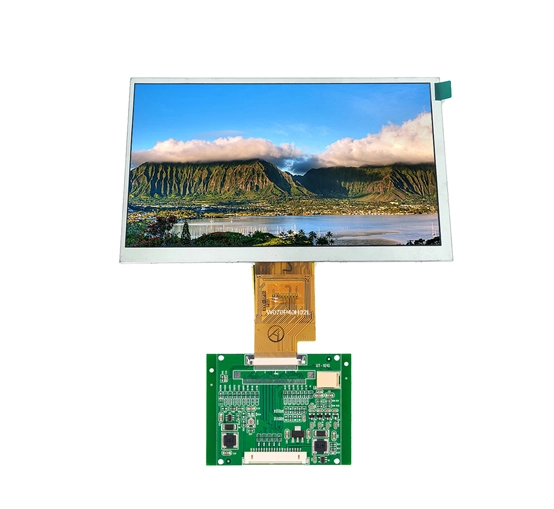

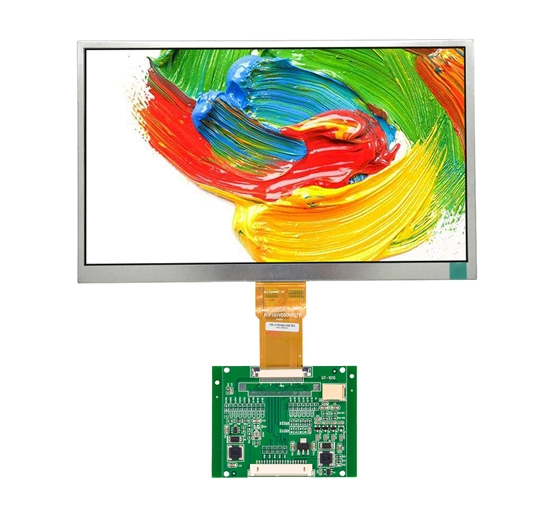

UT-101G LVDS LCD Controller Board

Parameters of UT-101G LVDS LCD Controller Board

No.	Model	Parameter	interface	Touch	power supply
16	UT-101G	20pin LVDS to LVDS 40pin	LVDS 40pin	NO	3.3 / 5V

General Specifications of UT-101G LVDS LCD Controller Board

Model: UT-TCON-N1.1 (40PIN)

LVDS to RGB

1 24bit LVDS input to LVDS 40pin

2 Single 8-bit LVDS signal to 40p-LVDS signal driving TFT LCD screen(The LVDS outout resolution of the motherboard needs to be set according to the driver screen resolution)

3 Equipped with LCD backlight driver circuit

Application scope: Industrial control/instrumentation/human-machine interface/portable/handheld devices/car navigation systems/smart homes/medical displays

A screen that can be driven	7 inch	EJ070NA-01J	800*480	8 inch	EJ080NA-04C	1024*768
		HJ070IA-02C	800*480		TM080TDH01_V2.0	1024*768
		AT070TNA2	800*480		HJ080NA-04L	1024*768
		HJ070NA-13A	800*480		HJ080IA-01F	1024*768
		ZJ070NA-01P	800*480		W080P40H1LN	1024*600
		N070LGE-L41	800*480	9 INCH	W090P40H1LI	1024*600
		N070LGE-L21	1024*600
		TM070JDHG30	800*480	10.1 inch	EJ101A-0G	1280*800
		W070P40H4LI	1024*600	10.1 inch	W101P40H1LI	1024*600

Structural Size of UT-101G LVDS LCD Controller Board

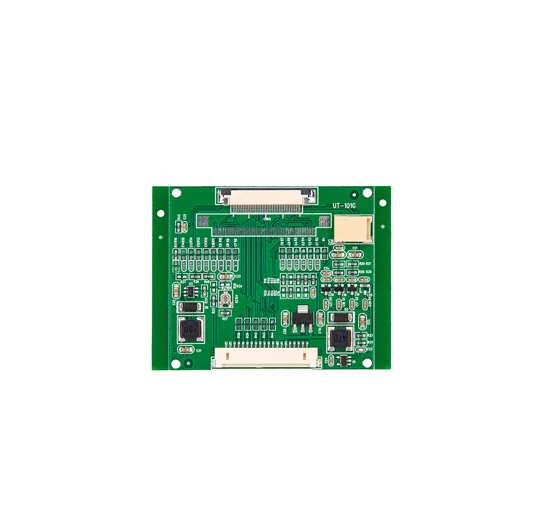

UT-101G LVDS LCD Controller Board
