EJ080NA-05B 8.0 Inch INNOLUX LCD Panel

Name: EJ080NA-05B 8.0 Inch INNOLUX LCD Panel
Brand: Shenzhen Wu He Tian Cheng Technology Co., Ltd.

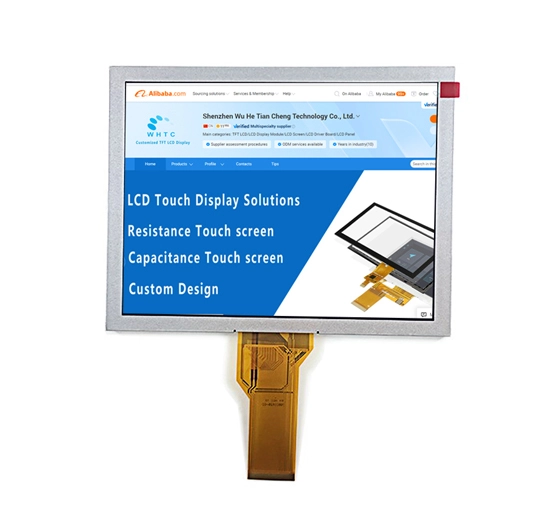

Innolux 8 inch tft lcd panel EJ080NA-05B with 800(RGB)x600 SVGA resolution, brightness 250 cd/m². This lcd display is working temperature is -20 ~ +70 (°C) and it's storage temperature is -30 ~ +85 (°C). Based on it's white LED backlight. This model is recommended for industrial use.

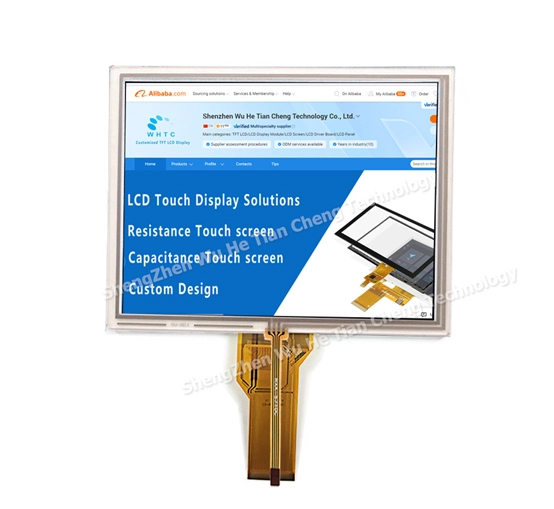

Compatible resistive touch and capacitive touch options are available. Additionally, we provide a matched LCD controller board.

Products

Parameters of EJ080NA-05B 8.0 Inch INNOLUX LCD Panel

Size(inch)	Resolution	Model	LCM Dimension(mm)	Active Area(mm)	View	Interface	Luminance(cd/m2)	OP(℃)
8	800*600	EJ080NA-05B	1831415.6	162*121.5	TN	RGB	250	-30~85°C

General Specifications of EJ080NA-05B 8.0 Inch INNOLUX LCD Panel

EJ080NA-05B

Manufacturer	Innolux
Model Name	EJ080NA-05B
Screen Size	8 inch
Pixel Number	800(RGB)×600 , SVGA
Active Area(mm)	162.0(W) x 121.5(H)
Outline(mm）	183.0(W) x 141.0(H) x 5.6(D)
Treatment	Anti-Glare
Luminance	250 cd/m²
Contrast Ratio	500:01:00
Viewing Angle	70/70/50/70 (Typ.)
Response	10/15ms
Work Mode	TN , Normally White , Transmissive
Color Depth	262K/16.7M , 50% NTSC
Backlight	WLED , 20k hours , without driver
Net Weight	241.0g
Touchscreen	without
Signal Type/interface Type	Parallel RGB (1 ch, 6/8-bit) , FPC , 50 pins
Voltage Supply	+3.3 V
Temperature	Storage Temp.: -30 ~ +80 (°C)
Temperature	Operating Temp.: -20 ~ +70 (°C)
Package	Innolux original package;
Package	30 pcs/carton
