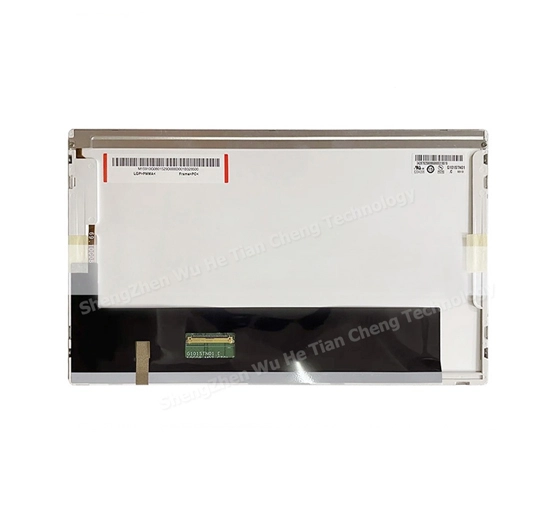

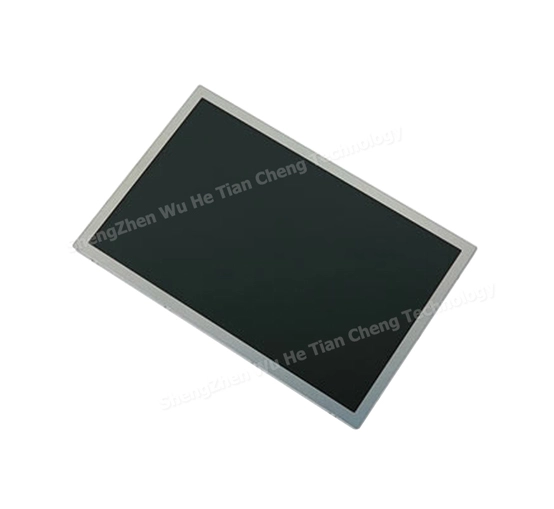

G101STN01.C 10.1 AUO LCD Panel

Name: G101STN01.C 10.1 AUO LCD Panel
Brand: Shenzhen Wu He Tian Cheng Technology Co., Ltd.

AUO 10.1 inch tft lcd panel G101STN01.C with 1024(RGB)x600 WSVGA resolution, brightness 500 cd/m², LVDS 40pin. This lcd display's working temperature is -30 ~ +80 (°C) and it's storage temperature is -30 ~ +80 (°C). Based on it's white LED backlight. This model is recommended for Industrial use.

Compatible resistive touch and capacitive touch options are available. Additionally, we provide a matched LCD controller board.

Products

Parameters of G101STN01.C 10.1 AUO LCD Panel

Size(inch)	Resolution	Model	LCM Dimension(mm)	Active Area(mm)	View	Interface	Luminance(cd/m2)	OP(℃)
10.1	1024*600	G101STN01.C	2351435.2	222.72*125.28	TN	LVDS	500	-30~85°C

General Specifications of G101STN01.C 10.1 AUO LCD Panel

Manufacturer	AUO
Model Name	G101STN01.C
Screen Size	10.1 inch
Pixel Number	1024(RGB)×600 , WSVGA
Active Area(mm)	222.72 × 125.28 (H×V)
Outline(mm）	235 × 143 × 5.2 (H×V×D)
Bezel Area(mm)	226.43 × 128.1
Treatment	AG , 3H
Luminance	500 cd/m² (Typ.)
Contrast Ratio	500 : 1 (Typ.) (TM)
Viewing Angle	70/70/60/60 (CR≥10)
Viewing Angle	Left/Right/UP/Down
Response	20 (Typ.)(Tr+Td) ms
Work Mode	TN , Normally white , Transmissive
Color Depth	262K/16.7M , 45% NTSC
Backlight	WLED , 50K hours , with LED Driver
Net Weight	180g (Typ.)
Touchscreen	without
Signal Type/interface Type	LVDS (1 ch, 6/8-bit) , 40 pins
Voltage Supply	+3.3 V (Typ./Max.)
Max. Ratings	Storage Temp.: -30 ~ +80 (°C)
Max. Ratings	Operating Temp.: -30 ~ +80 (°C)
Package	AUO Original package;
	35 pcs/ carton;
	weight : 9.9Kgs;
	size : 528(L) x 348(W) x 252(H)mm
