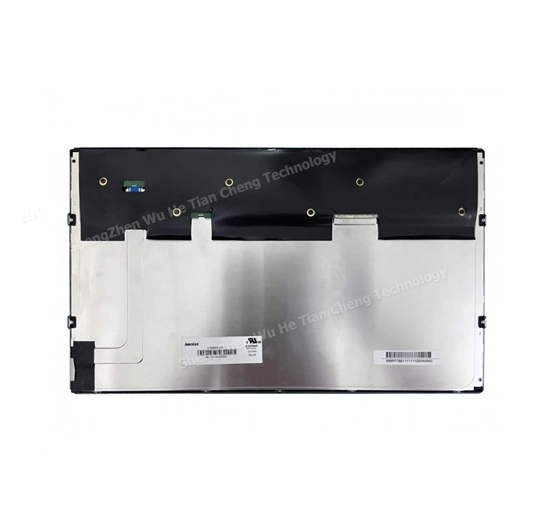

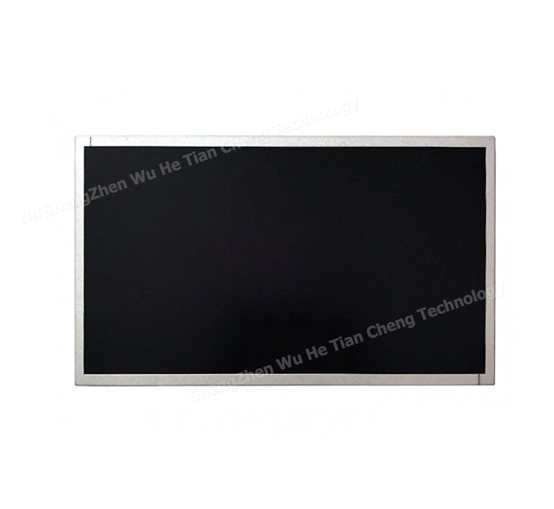

G156BGE-L03 15.6 Inch INNOLUX LCD Panel

Name: G156BGE-L03 15.6 Inch INNOLUX LCD Panel
Brand: Shenzhen Wu He Tian Cheng Technology Co., Ltd.

Innolux 15.6 inch IPS TFT LCD Panel G156BGE-L03 with 1366(RGB)x768 WXGA resolution, brightness 500 cd/m². This lcd display is working temperature is -10 ~ +60 (°C) and it's storage temperature is -20 ~ +60 (°C). Based on it's white LED backlight. This model is recommended for industrial use.

Compatible resistive touch and capacitive touch options are available. Additionally, we provide a matched LCD controller board.

Products

Parameters of G156BGE-L03 15.6 Inch INNOLUX LCD Panel

Size(inch)	Resolution	Model	LCM Dimension(mm)	Active Area(mm)	View	Interface	Luminance(cd/m2)	OP(℃)
15.6	1366*768	G156BGE-L03	363.8215.989.3	344.232*193.536	IPS	LVDS	500	-20~70°C

General Specifications of G156BGE-L03 15.6 Inch INNOLUX LCD Panel

G156BGE-L03

Manufacturer	INNOLUX
Model Name	G156BGE-L03
Screen Size	15.6 inch
Pixel Number	1366(RGB)×768 , WXGA
Active Area(mm)	344.232 x 193.536 (H×V)
Outline(mm）	363.8 x 215.98 x 9.3 (H×V×D)
Pixel Pitch(mm)	0.252 x 0.252 (H×V)
Treatment	AG type, 3H hard coating
Luminance	500 cd/m² (Typ.)
Contrast Ratio	600 : 1 (Typ.) (TM)
Viewing Angle	80/80/80/80(CR≥10) Left / Right/UP /Down
Response time	3/8 (Typ.)(Tr/Td) ms
Display Mode	TN , Normally white , Transmissive
Color Depth	16.7M , 63% NTSC
Backlight	WLED , 50K hours , with LED Driver
Net Weight	755g
Touchscreen	without
Signal Type/interface Type	LVDS (1 ch, 8-bit) , 30 pins
Voltage Supply	+5.0 V
Max. Ratings	Storage Temp.: -20 ~ +60 (°C)
Max. Ratings	Operating Temp.: -10 ~ +60 (°C)
Package	Innolux Original package;
	13 pcs/ctn;
	weight : 12.0Kgs;
	size : 465 (L) x 362 (W) x 314 (H) mm
