W035P54S1RN-H03I0 3.5 Inch Sunlight Readable LCD Display

Name: W035P54S1RN-H03I0 3.5 Inch Sunlight Readable LCD Display
Brand: Shenzhen Wu He Tian Cheng Technology Co., Ltd.

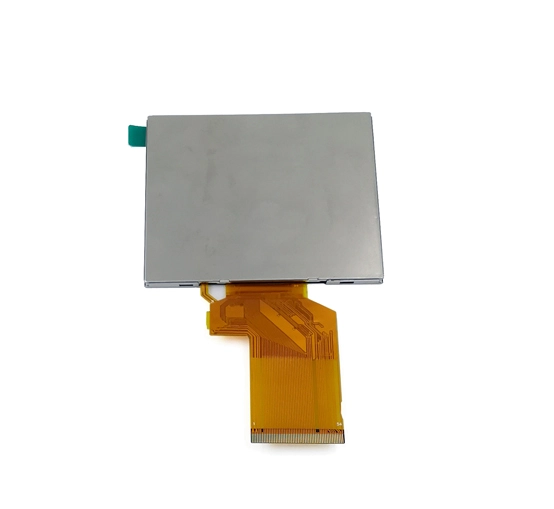

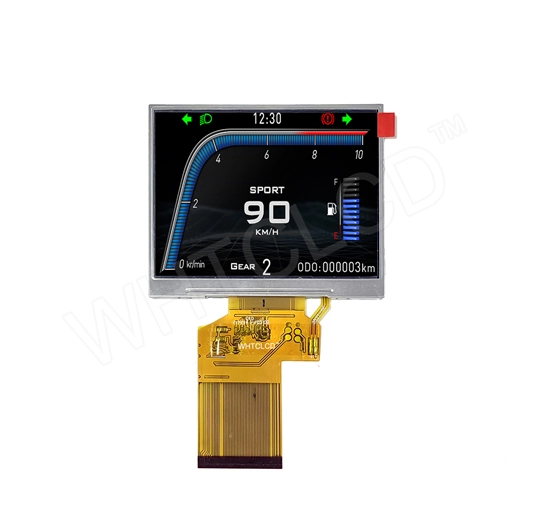

W035P54S1RN is a transmissive type color active matrix liquid crystal display this product composedof a TFT LCD panel, a driver IC, a FPC, and a LED-backlight unit. The active display area is 70.08*52.56 and the native resolution is 320*240, Applications: digital watches，wire tester，sphygmomanometer, ECG machine，Handheld devices.

Products

Parameters of 3.5 Inch Sunlight Readable LCD Display

Size(inch)	Resolution	Model	LCM Dimension(mm)	Active Area(mm)	View	Interface	Brightness(nits)	OP(℃)
3.5	320*240	W035P54S1RN-H03I0	76.7863.743.20	70.08*52.56	TN	RGB	300~1500	-30~80°C

Feature and Specifications of 3.5 Inch Sunlight Readable LCD Display

W035P54S1RN-H03I0

Feature	Specifications	Unit
Size	3.5	inch
Technology Type	a-si TFT
Resolution	320(RGB)x240
Pixel pitch	~	mm
Pixel arrangement	RGB-stripe
Color Depth	262K
Display Mode	TFT,Transmissive,Normally black
Driver IC	8238
Surface Treatment	`
Viewing Direction	TN
Gray Viewing Direction	`
LCM (W x H x D) (mm)	76.9(W)×63.9(H)×3.5(D) mm	mm
Active Area(mm)	70.08(W)×52.56(H) mm	mm
Touch Panel	Support CTP/RTP
Brightness	300	nits
Weight (g)	16	g
Interface	FPC 54pin
Operation Temperature	-20~70	℃
Storage Temperature	-30~80	℃
Module lifetime(Hours)	50,000-100,000	℃

General Specifications of 3.5 Inch Sunlight Readable LCD Display

W035P54S1RN-H03I0

Feature		Spec
Characteristics	LCD Size	3.5inch
	Display Format	320(RGB)×240
	Interface	24-bit RGB/SERIAL RGB/CCIR656/CCIR601
	Color Depth	16.7M
	Technology type	a-Si
	Display Spec	0.073x0.219
	Display Mode	Normally White
	Driver IC	HX8238D
	Surface Treatment	Haze 20%
	Viewing Direction	12 O'clock
	Gray Viewing Direction	6O'clock
Mechanical	LCM(WxHxD)(mm)	76.9063.93.26
	Active Area(mm)	70.08x52.56
	With /Without TSP	Without TSP
	Weight (g)	TBD
	LED Numbers	6 LEDs
Note 1:Viewing direction is following the data which measured by optics equipment. Note 2:Requirements on Environmental Protection:RoHS Note 3:LCM weight tolerance:+/-5%

Input/Output Terminals of 3.5 Inch Sunlight Readable LCD Display

W035P54S1RN-H03I0

No.	Symbol	Description
12	VBL-	Backlight LED Cathode
34	VBL+	Backlight LED Anode.
5	YU	Touch panel up side
6	XR	Touch panel right side
7	NC	NC
8	RESET	Reset Signal pin("Low"is enable)
9	SPENB	Chip select
10	SPCK	Serial Clock.
11	SPDA	Serial Data
12-19	B0~B7	Data bus
20-27	G0~G7	Data bus
28-35	RO~R7	Data bus
36	HSYNC	Line Synchronous Signal
37	VSYNC	Frame Synchronous Signal
38	DOTCLK	Dot-clock signal and oscillator source
39-40	NC	NC
41-42	VDD	Power supply for logic operation
43	YD	Touch panel bottom side
44	XL	Touch panel left side
45-47	NC
48	IF2	Control the input data format/floating
49	IF1	Control the input data format
50	IF0	Control the input data format
51	NC	NC
52	DEN	Display enable signal
53-54	GND	System Ground
