W080C40H1MI-J02B0 8 Inch Sunlight Readable LCD Display

W080C40H1MI is a transmissive type color active matrix liquid crystal display this product composedof a TFT LCD panel, a driver IC, a FPC, and a LED-backlight unit. The active display area is 109*176.3 and the native resolution is 800*1280 and can display up to 262K/16.7M colors, Applications: wire tester, sphygmomanometer, ECG machine, Robots,Handheld devices, Automotive instrument, recorder and industrial display.


Products

Parameters of 8 Inch Sunlight Readable LCD Display

Size(inch)ResolutionModelLCM Dimension(mm)Active Area(mm)ViewInterfaceBrightness(nits)OP(℃)
8800*1280W080C40H1MI-J02B0114.60*184.10*2.65107.64*172.23IPSMIPI240~1500-20~70°C


General Specifications of 8 Inch Sunlight Readable LCD Display

W080C40H1MI-J02B0

FeatureSpecificationsUnit
Size8inch
Technology Typea-si TFT
Resolution800(RGB)x1280
Pixel pitch~mm
Pixel arrangementRGB-stripe
Color Depth262K/16.7M
Display ModeTFT,Transmissive,Normally black
Driver IC~
Surface Treatment`
Viewing DirectionIPS
Gray Viewing Direction`

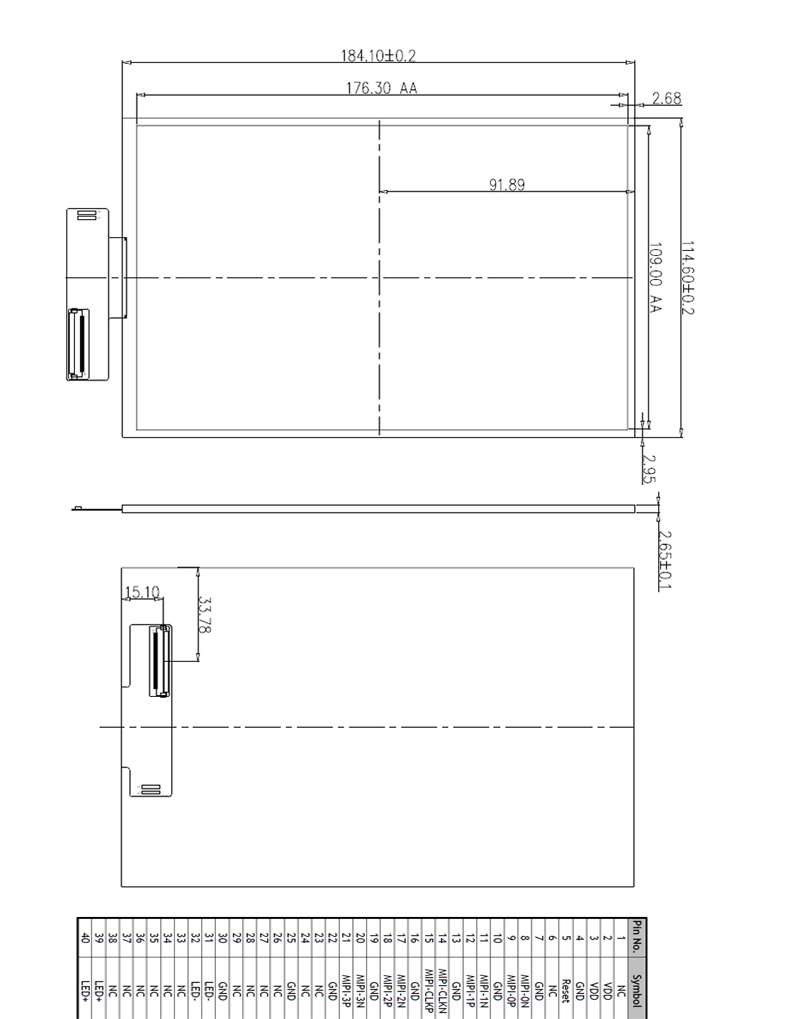

LCM (W x H x D) (mm)114.6(W)×184.1(H)×2.6(D) mmmm
Active Area(mm)109(W)×176.3(H) mmmm
Touch PanelSupport  CTP/RTP
Brightness250nits
Weight (g)`g
InterfaceMiPi  40pin Connector
Operation Temperature-20~70℃
Storage Temperature-30~85℃
Module lifetime(Hours)50,000-100,000℃

8 Inch Sunlight Readable LCD Display
