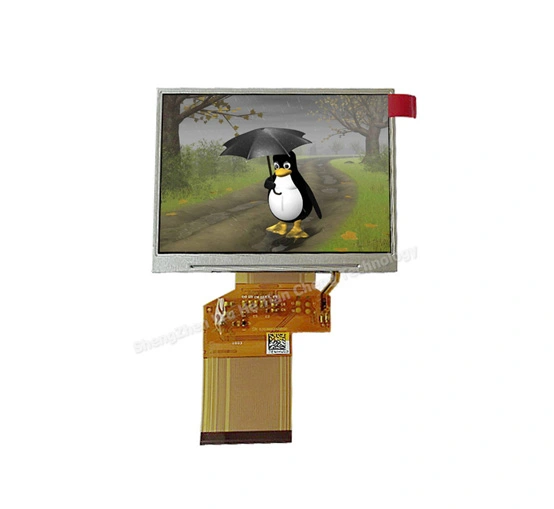

LQ35NC111 3.5 Inch INNOLUX LCD Panel

Name: LQ35NC111 3.5 Inch INNOLUX LCD Panel
Brand: Shenzhen Wu He Tian Cheng Technology Co., Ltd.

Innolux 3.5-inch TFT LCD panel model LQ035NC111 presents a 320(RGB)x240 QVGA resolution and a brightness of 300 cd/m². The operating temperature range of this LCD display is -20 to +70 degrees Celsius, while the storage temperature range is -30 to +80 degrees Celsius. It is underpinned by white LED backlighting. This model is recommended for industrial applications.

Compatible resistive and capacitive touch options are available. Additionally, we offer a matched HDMI driver board.

The original Innolux TFT LCD display, measuring 3.5 inches, with a 320x240 QVGA LCD screen, RGB module, and a 54-pin FPC, model LQ035NC111, exhibits a brightness of 300 nits and a refresh rate of 60Hz.

Products

Parameters of LQ35NC111 3.5 Inch INNOLUX LCD Panel

Size(inch)	Resolution	Model	LCM Dimension(mm)	Active Area(mm)	View	Interface	Luminance(cd/m2)	OP(℃)
3.5	320*240	LQ35NC111	76.963.93.46	70.08*52.56	TN	RGB	300	-20~70°C

General Specifications of LQ35NC111 3.5 Inch INNOLUX LCD Panel

Manufacturer	INNOLUX
Model Name	LQ035NC111
Screen Size	3.5 inch
Pixel Number	320(RGB)×240 , QVGA
Active Area(mm)	70.08 x 52.56 (H×V)
Outline(mm）	76.9 x 63.9 x 3.3 (H×V×D)
Pixel Pitch(mm)	73 x 219 (H×V)
Treatment	Anti-glare
Luminance	300 cd/m² (Typ.)
Contrast Ratio	400 : 1 (Typ.) (TM)
Viewing Angle	60/60/50/55(CR≥10) Left / Right/UP /Down
Response time	10/15 (Typ.)(Tr/Td) ms
Display Mode	TN, Normally white, Transmissive
Color Depth	16.7M, 60% NTSC
Backlight	WLED, 10K hours, without driver
Net Weight	30.0g
Touchscreen	without
Signal Type/interface Type	Digital RGB (8/24-bit) + SPI, CCIR601/656 , FPC , 54 pins
Voltage Supply	+3.3 V
Max. Ratings	Storage Temp.: -30 ~ +80 (°C)
Max. Ratings	Operating Temp.: -20 ~ +70 (°C)
Package	INNOLUX Original package
