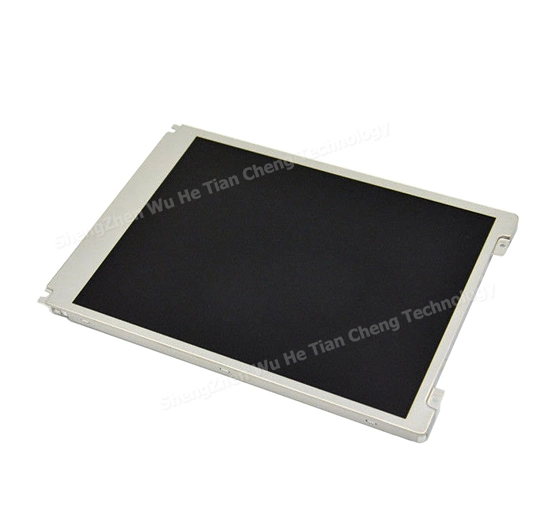

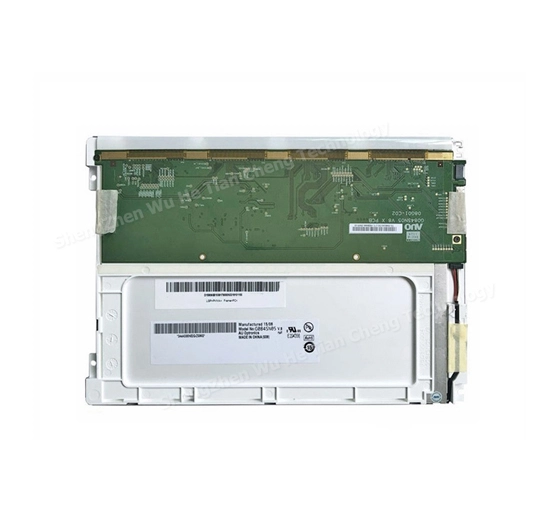

G084SN05 V9 8.4 AUO LCD Panel

AUO 8.4 inch tft lcd panel G084SN05 V9 with 800(RGB)x600 SVGA resolution, brightness 450 cd/m², LVDS 20pin. This lcd display's working temperature is -30 ~ +85 (°C) and it's storage temperature is  - 30 ~ +85 (°C). Based on it's white LED backlight. This model is recommended for industrial use.

Compatible resistive touch and capacitive touch options are available. Additionally, we provide a matched LCD controller board.


Products

Parameters of G084SN05 V9 8.4 AUO LCD Panel

Size(inch)ResolutionModelLCM Dimension(mm)Active Area(mm)ViewInterfaceLuminance(cd/m2)OP(℃)
8.4800*600G084SN05 V9203*142.5*8170.4*127.8IPSLVDS450-30~85°C



General Specifications of G084SN05 V9 8.4 AUO LCD Panel

G084SN05 V9

ManufacturerAUO
Model NameG084SN05 V9
Screen Size8.4 inch
Pixel Number800(RGB)×600 , SVGA
Active Area(mm)170.4(H) x 127.8(V)
Outline(mm）203.0(W) x 142.5(H) x 8.0(D)
Pixel Pitch(mm)0.213 x 0.213
TreatmentAnti-glare , Hardness 3H
Luminance450 cd/m² (Typ.)
Contrast Ratio600: 1 (Typ.) (TM)
Viewing Angle80/80/80/60 (CR≥10) Left / Right/UP /Down
Response20/10 (Typ.)(Tr/Td) ms
Work ModeTN , Normally white , Transmissive
Color Depth262K/16.2M , 45% NTSC
BacklightWLED , 50K hours , with LED Driver
Net Weight250g (Typ.)
Touchscreenwithout
Signal Type/interface TypeLVDS (1 ch, 6/8-bit) , 20 pins
Voltage Supply+3.3 V (Typ./Max.)
Max. RatingsStorage Temp. : -30 ~ +85 (°C)
Operating Temp. : -30 ~ +85 (°C)
PackageAUO original package;
30 pcs/ carton;
weight : 12.0kgs;
size : 405(L) x 328(W) x 301(H) mm
