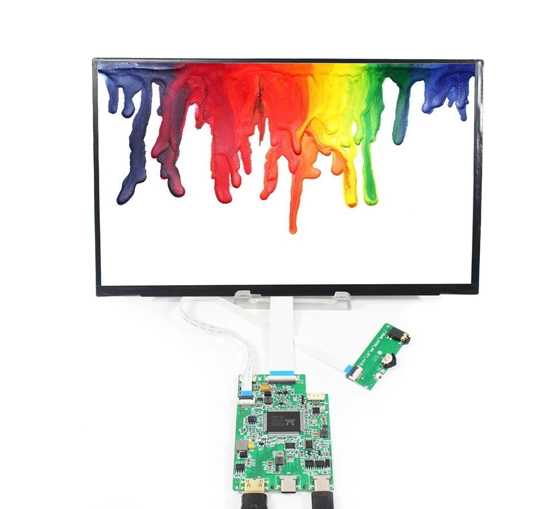

WH-RTD2556 EDP LCD Controller Board

Parameters of WH-RTD2556 EDP LCD Controller Board

No.	Model	Parameter	interface	Touch	power supply
4	WH-RTD2556	Type-C / HDMI Signal input; Supports multiple resolutions, sound output, TOUCH PANEL Supports 10.1~18 inch LCD screen	EDP 30pin / 40pin	YES	DC+5V

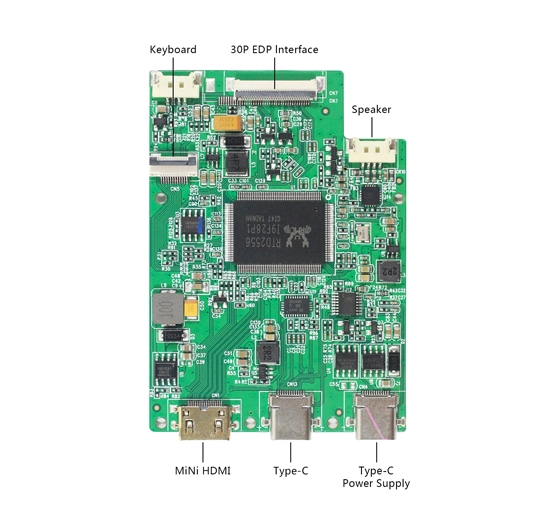

General Specifications of WH-RTD2556 EDP LCD Controller Board

1. Type-C USB-5V voltage input,

2. 3.5 Earphone Stand for Audio Output

3. Supports HDMI signal input and uses MINIHDMI socket for HDMI 1.4

4. The thickness of the drive board has been controlled to 5MM

5. The potentiometer adopts a wave wheel button, three in one function, menu, add, subtract, and compound brightness and volume

6. The touch interface is defined as 1.25-4P

7. Firmware upgrade using HDMI port

8. 2x2W amplifier outputs dual channels with a spacing of 1.25-4P defined

9. The LCD screen interface is a dual interface defined as EDP 30pin and EDP 40pin

10. Equipped with touch screen interface, supporting capacitive touch screen

11. Driver board HDMI and Type-C, automatic recognition, automatic conversion, based on the signal received in the future,

12. This driver board can support

EDP 30pin supports 2-channel signals with resolution below 1920x1200 for EDP

EDP 40pin supports 4-channel signals with resolutions below 2560x1600

13. This driver board adopts fully surface mounted components, with production design standards of industrial grade and shipping standards of civilian grade. The relevant working temperature needs to be tested by oneself

14. Aging mode: When there is a signal, press and hold the MENU button for at least 6 seconds to display the factory menu. Open the BRIN and set it to ON to exit the menu. After the signal is cut off, it will automatically display. When powered on again, it will automatically exit,

16. The menu has built-in EXIT, which is used to exit the menu and return to the previous menu
