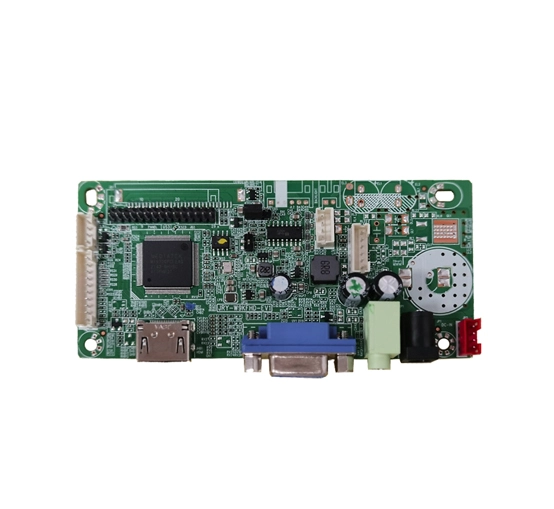

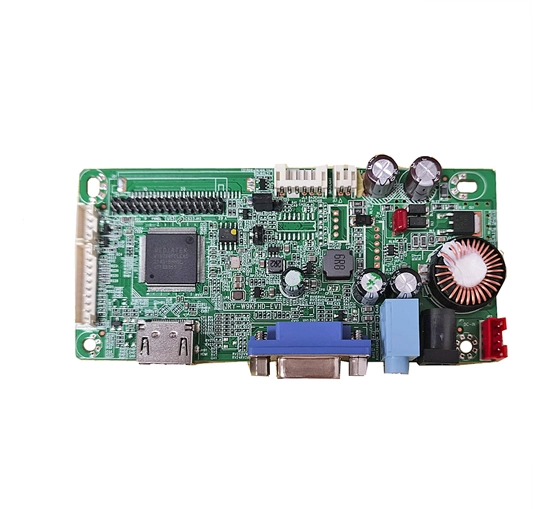

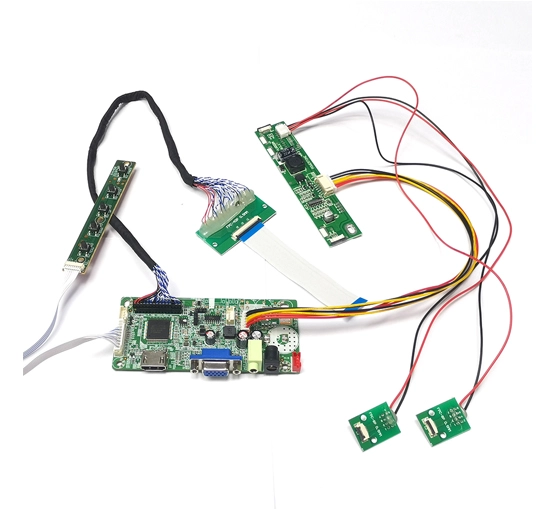

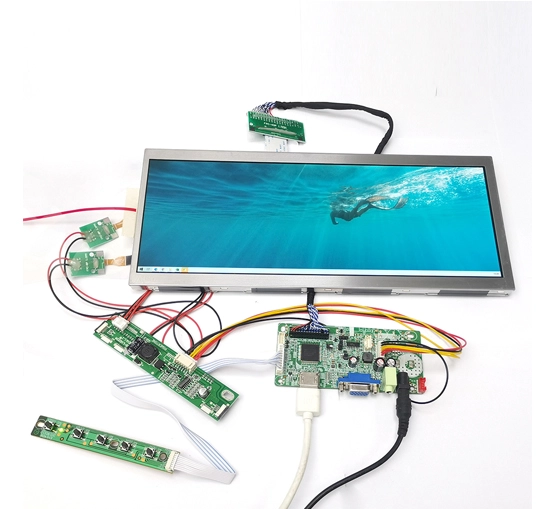

JRY-W9KFHD-EV1 LVDS LCD Controller Board

Parameters of JRY-W9KFHD-EV1 LVDS LCD Controller Board

No.	Model	Parameter	interface	Touch	power supply
13	JRY-W9KFHD-EV1	VGA / HDMI Signal input; Supports multiple resolutions, sound output, Supports 7~ 32 inch LCD screen	LVDS 30pin	NO	DC12V

General Specifications of JRY-W9KFHD-EV1 LVDS LCD Controller Board

Model: JRY-W9KFHD-EV1 (30pin)

1 HDMI VGA signal input

2 signal output supports LVDS 30pin Single/Double 6/8-bit interface LCD screen

3 Power input: DC+12V

4 Multi functional OSD Operations

5 with remote control function (optional)

Model	JRY-W9KFHD-EV1
Signal	HDMI VGA signal
output interface	30pin LVDS Connector(Single/Double 6/8-bit)
supported resolution	19201080 19201200（60~75Hz）
Power input	DC +12V
Function	Multi functional OSD operation with remote control function (optional)
Operation Temperature	-10℃～+60℃
Working humidity	90%RH
Storage temperature	-20℃～+70℃
Save humidity	90%RH
screen size	15 inch~65 inch
A screen that can be driven	15 inch~65 inch LVDS Connector(Single/Double 6/8-bit)
