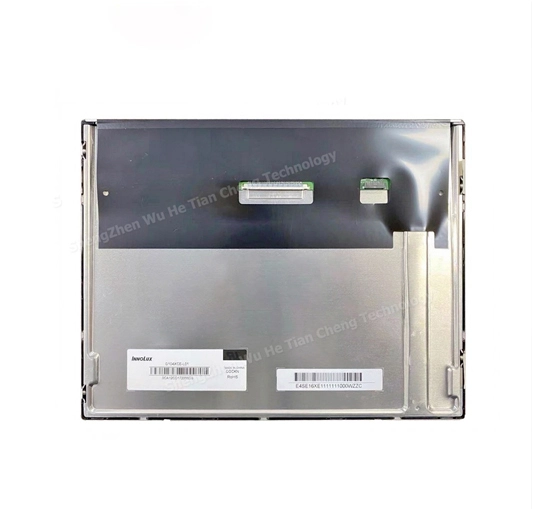

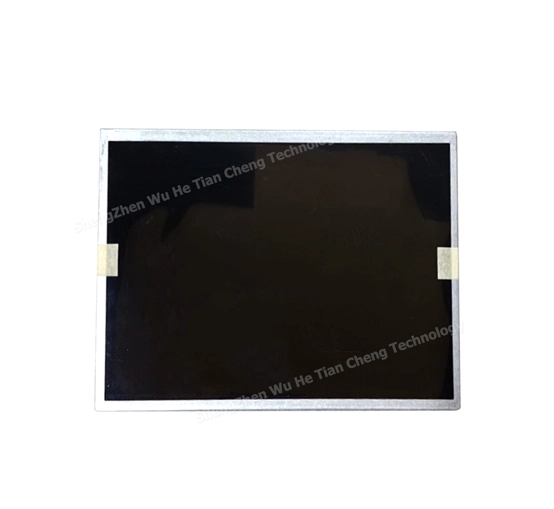

G104XCE-L01 10.4 Inch INNOLUX LCD Panel

Name: G104XCE-L01 10.4 Inch INNOLUX LCD Panel
Brand: Shenzhen Wu He Tian Cheng Technology Co., Ltd.

Innolux 10.4 inch TFT LCD IPS Panel G104XCE-L01 with 1024(RGB)x768 XGA resolution, brightness 500 cd/m², LVDS 30pins And Controller Board. This lcd display is working temperature is -30 ~ +85 (°C) and its storage temperature is -30 ~ +85 (°C). Based on its white LED backlight.This model is recommended for industrial use.

Compatible resistive touch and capacitive touch options are available. Additionally, we provide a matched LCD controller board.

Products

Parameters of G104XCE-L01 10.4 Inch INNOLUX LCD Panel

Size(inch)	Resolution	Model	LCM Dimension(mm)	Active Area(mm)	View	Interface	Luminance(cd/m2)	OP(℃)
10.4	1024*768	G104XCE-L01	225.5176.38.7	210.4*157.8	IPS	LVDS	500	-30~85°C

General Specifications of 10.4 Inch INNOLUX LCD Panel

G104XCE-L01

Manufacturer	INNOLUX
Model Name	G104XCE-L01
Screen Size	10.4 inch
Pixel Number	1024(RGB)×768 , XGA
Active Area(mm)	210.4 x 157.8 (H×V)
Outline(mm）	225.5 x 176.3 x 8.7 (H×V×D)
Pixel Pitch(mm)	0.0685 x 0.2055 (H×V)
Treatment	Anti Glare
Luminance	500 cd/m² (Typ.)
Contrast Ratio	1000: 1 (Typ.) (TM)
Viewing Angle	88/88/88/88(CR≥10) Left / Right/UP /Down
Response time	13/12 (Typ.)(Tr/Td) ms
Display Mode	AAS , Normally black, Transmissive
Color Depth	262K/16.7M , 72% NTSC
Backlight	WLED , 50K hours, with LED Driver
Net Weight	335g
Touchscreen	without
Signal Type/interface Type	LVDS (1 ch, 6/8-bit) , 30 pins
Voltage Supply	+3.3V
Max. Ratings	Storage Temp.: -30 ~ +85 (°C)
Max. Ratings	Operating Temp.: -30 ~ +85 (°C)
Package	Innolux Original package;
Package	24 pcs/ctn
