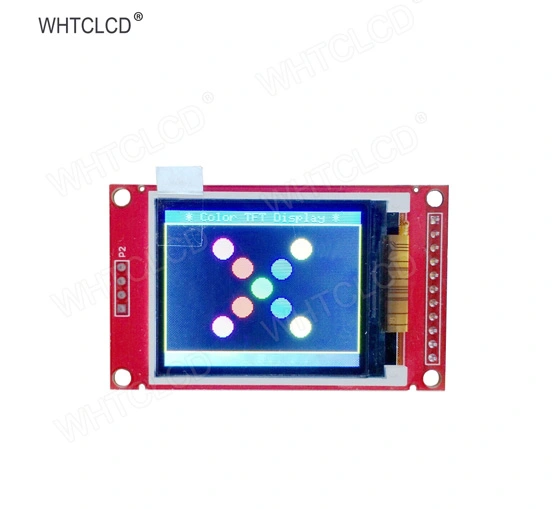

MAR1801 1.8 SPI LCD Disaply Module

Name: MAR1801 1.8 SPI LCD Disaply Module
Brand: Shenzhen Wu He Tian Cheng Technology Co., Ltd.

1.8-inch color screen, support 65K color display, display rich colors. 128X160 resolution, clear display. Using the SPI serial bus, it only takes a few IOs to illuminate the display. With SD card slot for convenient function expansion. Provide underlying libraries and rich sample programs for Arduino, C51, and STM32 platforms. Military-grade process standards, long-term stable work. Provide underlying driver technical support.

Products

Parameters of 1.8 SPI LCD Disaply Module

Size (inch)	Resolution	Model	View	Interface	Product Size (mm)	Active Area (mm)	Audio	Touch panel	Power	OP(℃)
1.8	128*160	MAR1801	TN	SPI	38.3062.486	28.03*35.04	NC	NC	5V/3.3V	-20~60°C

Name	Parameter
Display Color	16BIT RGB 65K color
SKU	MAR1801
Screen Size	1.8(inch)
Type	TFT
Driver IC	ST7735S
Resolution	128*160 (Pixel)
Module Interface	4-wire SPI interface
Backlight	2 White Led
Active Area	28.03x35.04 (mm)
Module PCB Size	38.30x62.48 (mm)
Operating Temperature	-20℃~60℃
Storage Temperature	-30℃~70℃
Operating Voltage	5V/3.3V
Power Consumption	TBD
Rough Weight(Package containing)	18 (g)

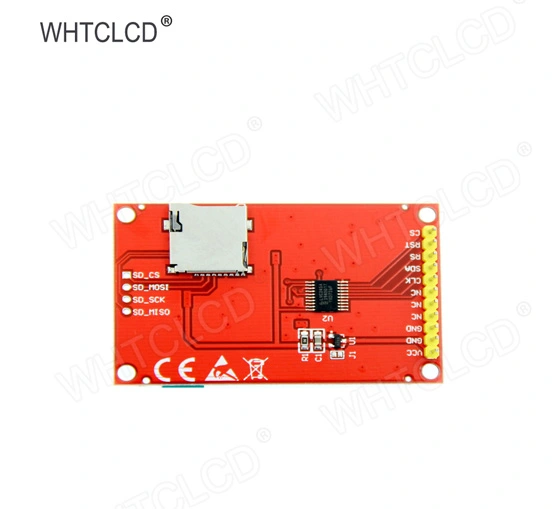

Hardware Description of 1.8 SPI LCD Disaply Module

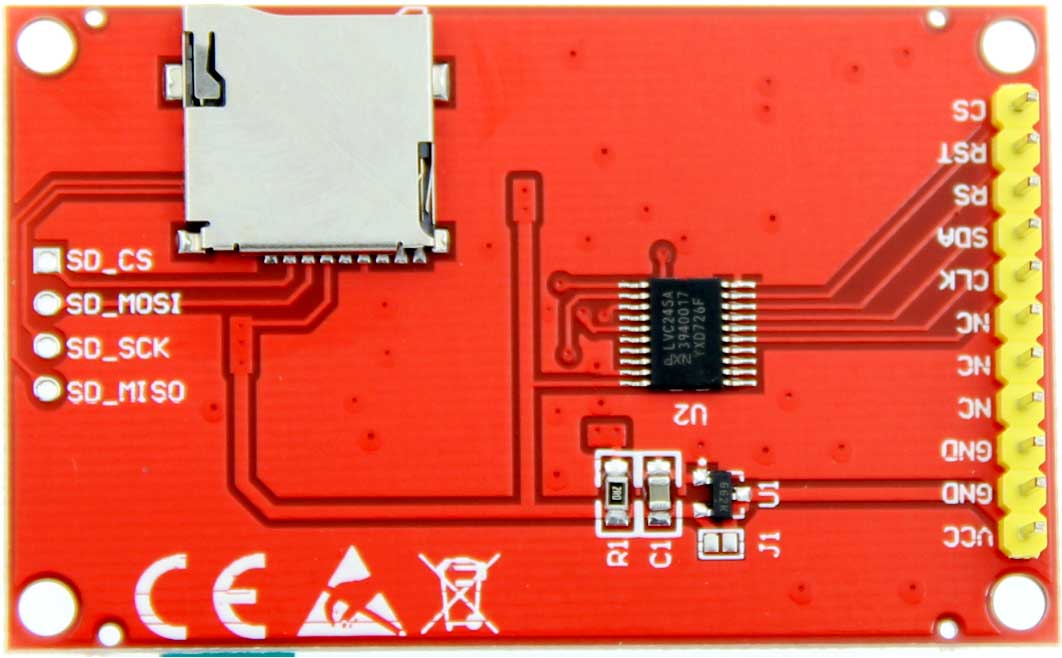

resistive multi touch

Number	Pin Label	Description
1	VCC	LCD Power positive (3.3V~5V)
2	GND	LCD Power ground
3	GND	LCD Power ground
4	NC	Not defined, reserved
5	NC	Not defined, reserved
6	NC	Not defined, reserved
7	CLK	LCD SPI bus clock signal
8	SDA	LCD SPI bus write data signal
9	RS	LCD register / data selection signal, high level: register, low level: data
10	RST	LCD reset signal, low level reset
11	CS	LCD chip select signal, low level enable

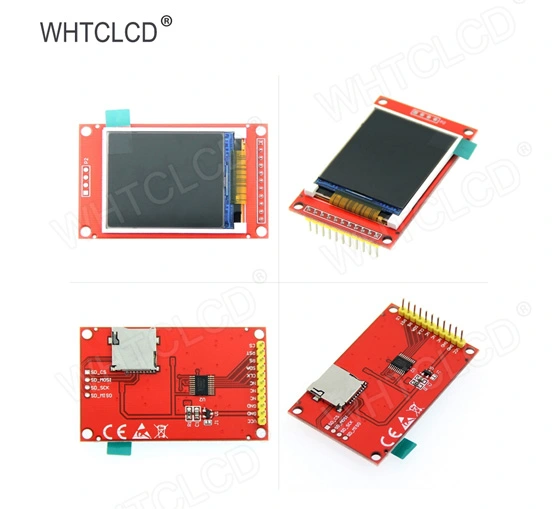

Product Size of 1.8 SPI LCD Disaply Module

resistive multi touch screen
