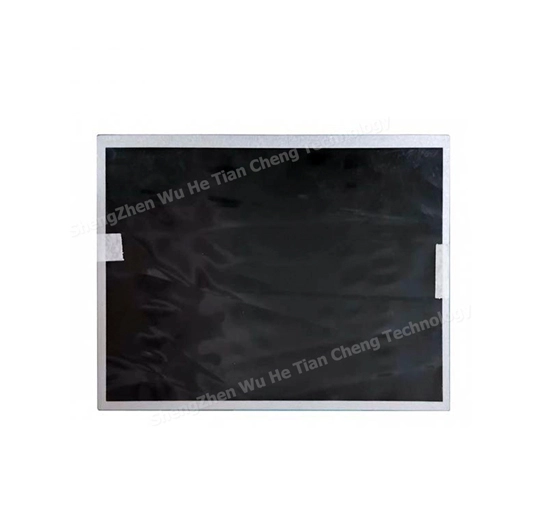

G121ACE-LH2 12.1 Inch INNOLUX LCD Panel

Name: G121ACE-LH2 12.1 Inch INNOLUX LCD Panel
Brand: Shenzhen Wu He Tian Cheng Technology Co., Ltd.

Innolux 12.1 inch TFT LCD IPS Panel G12ACE-LH1 with 800(RGB)x600 SVGA resolution, brightness 450 cd/m². This lcd display is working temperature is -30 ~ +85 (°C) and it's storage temperature is -30 ~ +85 (°C). Based on its white LED backlight. This model is recommended for industrial use.

Compatible resistive touch and capacitive touch options are available. Additionally, we provide a matched LCD controller board.

Products

Parameters of G121ACE-LH2 12.1 Inch INNOLUX LCD Panel

Size(inch)	Resolution	Model	LCM Dimension(mm)	Active Area(mm)	View	Interface	Luminance(cd/m2)	OP(℃)
12.1	800*600	G121ACE-LH2	260.52048.4	246*184.5	IPS	LVDS	450	-30~85°C

General Specifications of G121ACE-LH2 12.1 Inch INNOLUX LCD Panel

G121ACE-LH2

Manufacturer	Innolux
Model Name	G121ACE-LH1
Screen Size	12.1 inch
Pixel Number	800(RGB)×600 , SVGA
Active Area(mm)	246.0 x 184.5 (H×V)
Outline(mm）	260.5 x 204.0 x 8.4 (H×V×D)
Pixel Pitch(mm)	0.3075 x 0.3075 (H×V)
Treatment	AG type, 3H hard coating
Luminance	450 cd/m² (Typ.)
Contrast Ratio	1000 : 1 (Typ.) (TM)
Viewing Angle	88/88/88/88
Response time	13/12 (Typ.)(Tr/Td) ms
Display Mode	AAS , Normally black , Transmissive
Color Depth	262K/16.7M , 72% NTSC
Backlight	WLED , 50K hours , with LED Driver
Net Weight	490g
Touchscreen	without
Signal Type/interface Type	LVDS (1 ch, 6/8-bit) , 30 pins
Voltage Supply	+5.0 V
Max. Ratings	Storage Temp.: -30 ~ +85 (°C)
Max. Ratings	Operating Temp.: -30 ~ +85 (°C)
Package	Innolux Original package;
Package	18 pcs/ctn
