MRG7101 7.0 Inch RGB Display Module(TN-NC)

Name: MRG7101 7.0 Inch RGB Display Module(TN-NC)
Brand: Shenzhen Wu He Tian Cheng Technology Co., Ltd.

7.0-inch color screen, support 24BIT RGB 16.7M color display, display rich colors. Support 800x480 and 1024x600 resolution screen switching, the display effect is very clear. Support 24 bit RGB parallel bus transmission. Compatible with RGB interface connection of punctual atomic development board and wildfire development board. Use capacitive touch screen to support 5 touch points. Provides a rich sample program for STM32 platforms. Military-grade process standards, long-term stable work. Provide underlying driver technical support.

Products

Parameters of 7.0 Inch RGB Display Module(TN-NC)

Size (inch)	Resolution	Model	View	Interface	Product Size (mm)	Active Area (mm)	Audio	Touch panel	Power	OP(℃)
7	800*480	MRG7101	TN	RGB	164.90124.2710	154.08 * 85.92	NC	NC	MicroUSB	-20~60°C

Name	Parameter
Display Color	RGB888 16.7M (compatible with rgb5665k) color
SKU	800x480: MRG7101(no touch), MRG7111(have touch) 1024x600: MRG7102(no touch), MRG7122(have touch)
Screen Size	7.0(inch)
Type	TFT
Driver IC	None
Resolution	800*480 or 1024x600 (Pixel)
Module Interface	24Bit RGB parallel interface
Touch Screen Type	Capacitive touch screen
Touch IC	FT5426
Active Area	800x480: 153.84x85.63(mm) 1024x600: 154.21x85.92(mm)
Module PCB Size	164.90x124.27(mm)
Operating Temperature	-10℃~60℃
Storage Temperature	-20℃~70℃
Input Voltage	5V
IO Voltage	3.3V
Power Consumption	800x480: 67mA(The backlight is off), 467mA(The backlight is the brightest) 1024x600: 104mA(The backlight is off), 310mA(The backlight is the brightest)
Rough Weight(Net weight)	236(g)

Hardware Description of 7.0 Inch RGB Display Module(TN-NC)

hd44780 raspberry

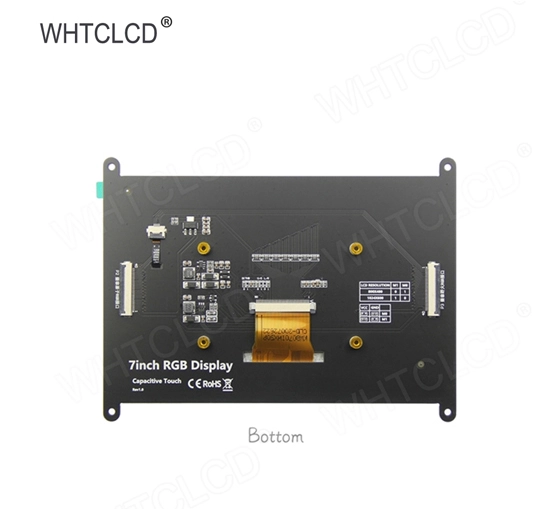

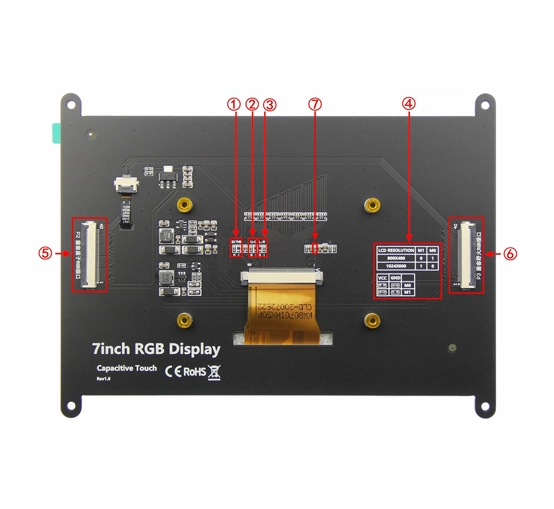

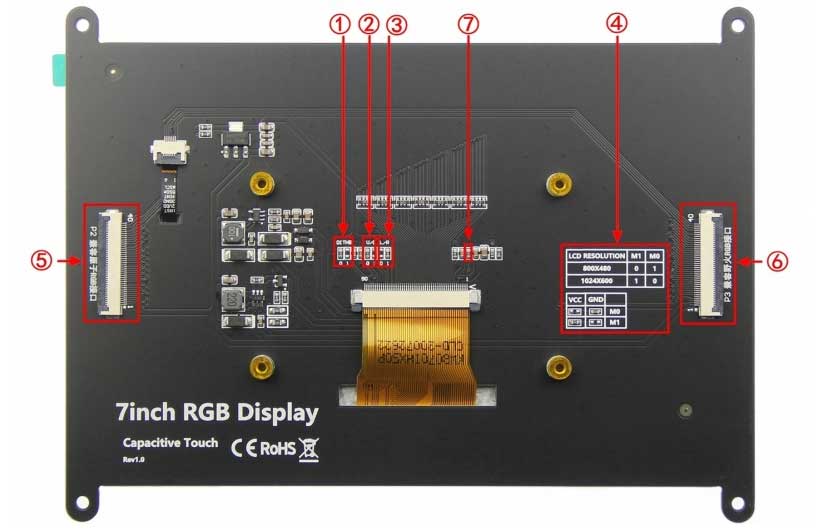

①--DITHB selection circuit

②--U/D selection circuit

③--L/R selection circuit

④--Screen resolution selection circuit

⑤--P2 interface (compatible with atomic RGB interface)

⑥--P3 interface (compatible with wildfire RGB interface)

⑦--B7 Data line pull resistance (required to define module ID, applicable to atomic program)

1. Screen internal Dithering display function settings

Weld the 0 position resistance of DITHB and disconnect the 1 position resistance to enable the internal Dithering display function of the display panel;
Weld the 1 position resistance of DITHB, disconnect the 0 position resistance, and turn off the internal Dithering display function of the screen;
Default welding 0 position resistance, disconnect 1 position resistance.

2. Screen display up and down flip settings

Weld the resistance at position 0 of U / D, disconnect the resistance at position 1, and the screen will turn down;
Weld the resistance at position 1 of U / D, disconnect the resistance at position 0, and the screen will turn upward;
Default welding 0 position resistance, disconnect 1 position resistance.

3. Screen display left and right flip settings

Weld the resistance at position 0 of L / R, disconnect the resistance at position 1, and the screen will turn to the left;
Weld the resistance at position 1 of L / R, disconnect the resistance at position 0, and the screen will turn right;
Default welding 1 position resistance, disconnect 0 position resistance.

4. Screen resolution selection

As shown in the screen resolution selection circuit, the module supports screen switching of 800x480 and 1024x600 resolutions.
Weld M0 resistance to GND, M1 resistance to VCC, select 1024x600 resolution;
Weld M0 resistance to VCC, M1 resistance to GND, and select 800x480 resolution;

5. Precautions for connecting to wildfire development board

If connected to wildfire i When using the MX6ULL ARM Linux development board, it is necessary to remove the pull resistance;
on the B7 data line referred to by label 7 and the M0 and M1 resistance referred to by label 4, otherwise the development board will not run.

6. P2 and P3 interface pins are described as follows:

P2 interface (compatible with atomic RGB interface) pin description

Number	Pin name	Description
1	VCC5	Power input pin (connect to 5V)
2	VCC5	Power input pin (connect to 5V)
3~10	R0~R7	8-bit RED data pin
11	GND	power ground pin
12~19	G0 ~ G7	8-bit GREEN data pin
20	GND	power ground pin
21~28	B0 ~ B7	8-bit GREEN data pin
29	GND	power ground pin
30	PCLK	Pixel clock control pin
31	VSYNC	Vertical synchronous signal control pin
32	HSYNC	Horizontal synchronous signal control pin
33	DE	Data enable signal control pin
34	BL	LCD backlight control pin
35	TP_CS	Capacitor touch screen reset pin (resistance touch screen chip selection pin)
36	TP_MOSI	Data pin of IIC bus of capacitance touch screen (write data pin of SPI bus of resistance touch screen)
37	TP_MISO	Resistance touch screen SPI bus read data pin (capacitance touch screen not used)
38	TP_CLK	IIC bus clock control pin of capacitive touch screen (SPI bus clock control pin of resistance touch screen)
39	TP_PEN	Touch screen interrupt control pin (low level when touch is generated)
40	RST	LCD reset control pin (effective at low level)

P3 interface (compatible with wildfire RGB interface) pin description

Number	Pin name	Description
1	VCC5	Power input pin (connect to 5V)
2	VCC5	Power input pin (connect to 5V)
3	VCC3.3	Power input pin (connect to 3.3V)
4	VCC3.3	Power input pin (connect to 3.3V)
5	GND	power ground pin
6~13	R0 ~ R7	8-bit RED data pin
14~21	G0 ~ G7	8-bit GREEN data pin
22~29	B0 ~ B7	8-bit BLUE data pin
30	PCLK	Pixel clock control pin
31	HSYNC	Horizontal synchronous signal control pin
32	VSYNC	Vertical synchronous signal control pin
33	DE	Data enable signal control pin
34	DISP	LCD display enable pin (enable at high level)
35	BL	LCD backlight control pin
36	GND	power ground pin
37	TP_RST	Capacitor touch screen reset pin(enable at low level)
38	TP_PEN	Touch screen interrupt control pin (low level when touch is generated)
39	TP_SDA	Data pin of IIC bus of capacitance touch screen
40	TP_SCL	IIC bus clock control pin of capacitive touch screen

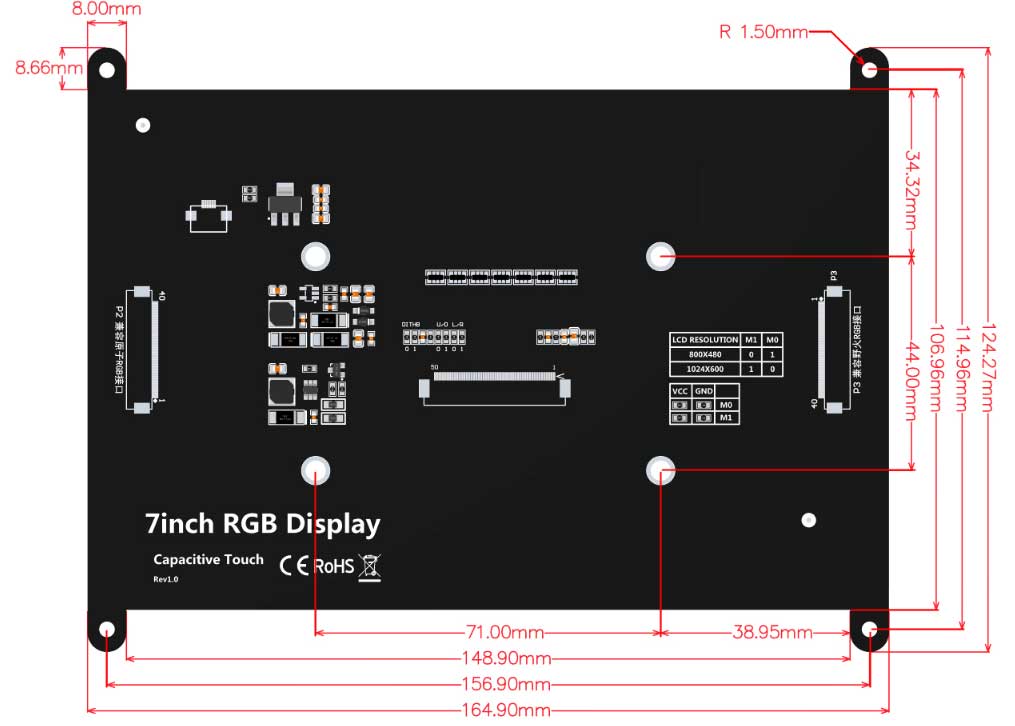

Product Size of 7.0 Inch RGB Display Module(TN-NC)

hd44780 raspberry pi
