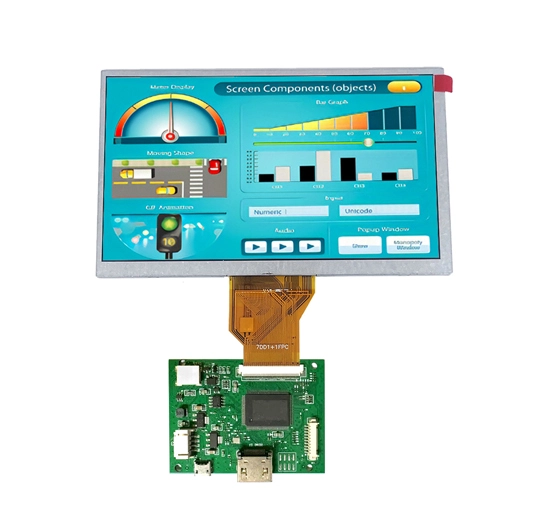

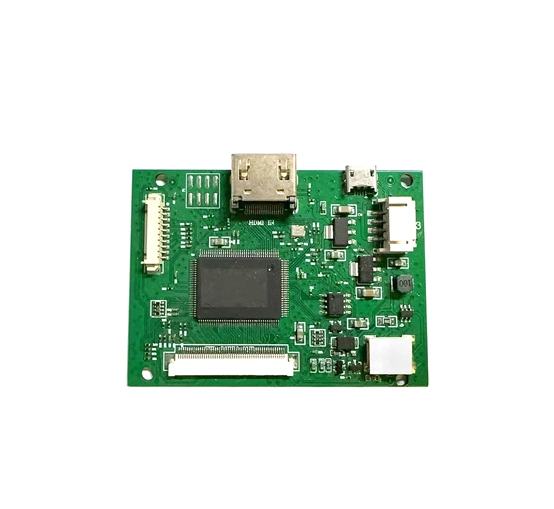

PCB800168 RGB TTL LCD Controller Board

Parameters of PCB800168 RGB TTL LCD Controller Board

No.	Model	Parameter	interface	Touch	power supply
2	PCB800168	HDMI Signal input; Supports multiple resolutions, Supports 5 / 7 / 8 / 9 / 10.1 inch LCD screen	RGB TTL 50pin	NO	USB +5V

General Specifications of PCB800168 RGB TTL LCD Controller Board

1. One HDMI signal input, and this IC supports HDMI 1.2 and HDMI 1080P display

2. Supports 5V DC voltage input and can also be powered by USB or a portable power bank, but the positive and negative poles must not be reversed to avoid damaging the circuit board,

4. The driver board integrates the LCD screen LED backlight driver circuit,

5. Standard keypad interface and support dual color LED indicator display

6. Supports RGB TTL 50 pin signal output,

Support AT070TN92,

AT065TN14

AT080TN52

AT090TN12

AT090TN10

AT070TN90

AT070TN93

AT070TN94 and other TTL LCD screens with a universal 50PIN interface

7. In conjunction with our company's PCB800100 LCD screen adapter board, the following LCD screens can be supported

EJ070NA01-1024x600 resolution

EJ080NA04B-1024x768 resolution

ZJ070NA01, a universal 40pin high-resolution LCD screen model

8. In conjunction with PCB800100, it can also support 4. 3, 5, 6, 7 inch, 40 pin universal screen, as defined in AT043TN24V, 1

9. This driver board supports remote control function and requires coordination with a designated remote control

10. This driver board can automatically detect and display relevant input voltage information. Note that this function is customized and requires contact with our company's technical department

11. This driver board can support automatic detection signal on/off function, which is a customized function

12. There are four positioning holes on this drive board,

13. If there are special requirements, our company can provide other customized services

14. The customer needs to modify the program and needs to connect to our company to purchase the relevant program download board,

15. Using our company's USB interface program download board, you can add logos to the bin code by yourself
