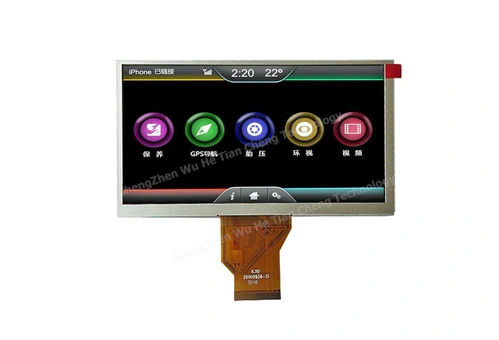

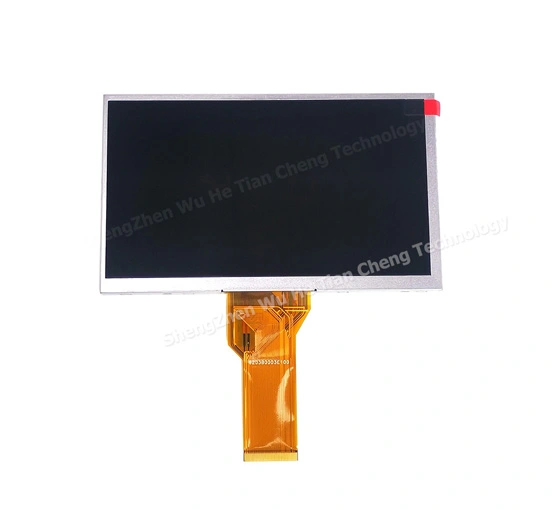

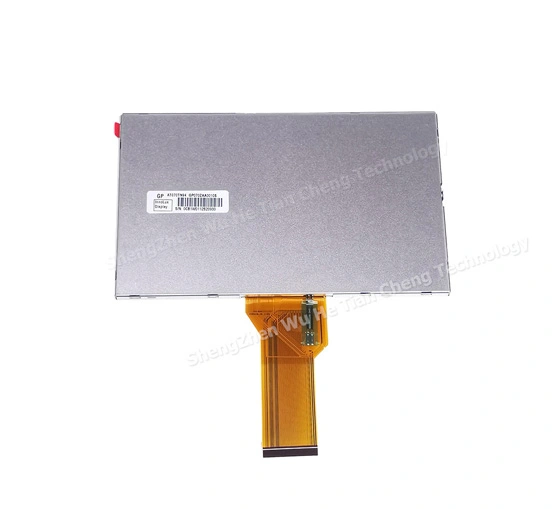

AT070TN94 7.0 Inch INNOLUX LCD Panel

Name: AT070TN94 7.0 Inch INNOLUX LCD Panel
Brand: Shenzhen Wu He Tian Cheng Technology Co., Ltd.

Innolux 7 inch tft lcd panel AT070TN94 with 800(RGB)x480 WVGA resolution, brightness 400 cd/m². This lcd display is working temperature is -30 ~ +85 (°C) and its storage temperature is -30 ~ +85 (°C). Based on its white LED backlight.This model is recommended for industrial use.

Original Innolux 7 Inch 800x480 WVGA TFT LCD Panel RGB LCD Screen For vehicle AT070TN94 With 400nit.

Compatible resistive touch and capacitive touch options are available. Additionally, we provide a matched LCD controller board.

Products

Parameters of AT070TN94 7.0 Inch INNOLUX LCD Panel

Size(inch)	Resolution	Model	LCM Dimension(mm)	Active Area(mm)	View	Interface	Luminance(cd/m2)	OP(℃)
7	800*480	AT070TN94	164.91005.7	154.08*85.92	TN	RGB	400	-30~85°C

General Specifications of AT070TN94 7.0 Inch INNOLUX LCD Panel

AT070TN94

Manufacturer	Innolux
Model Name	AT070TN94
Screen Size	7 inch
Screen Type	LCM, a-Si TFT-LCD
Pixel Number	800(RGB)×480 , WVGA
Active Area(mm)	154.08 x 85.92 (H×V)
Outline(mm）	164.9 x 100 x 5.7 (H×V×D)
Bezel Area(mm)	156.7 × 89.1 (H×V)
Treatment	Anti-glare , Hard coating (2H) , Anti-reflection
Luminance	400 cd/m² (Typ.)
Contrast Ratio	500 : 1 (Typ.) (TM)
Viewing Angle	70/70/50/70 (Typ.)(CR≥10) Left / Right / Up / Down
Response	10/15(Typ.)(Tr/Td) ms
Good View at	6 O’CLOCK
Work Mode	TN , Normally White , Transmissive
Color Depth	262K/16.7M , 50%
Backlight	WLED , 20K hours , without Driver
Net Weight	154.0g (Typ.)
operating frequency	60Hz
Touchscreen	without
Signal Type	Parallel RGB (1 ch, 6/8-bit) , 50 pins , FPC
Voltage Supply	+3.3 V
Max. Ratings	Storage Temp.: -30 ~ +85 (°C)
Max. Ratings	Operating Temp.: -30 ~ +85 (°C)
Package	Innolux original package;
Package	50 pcs/carton
