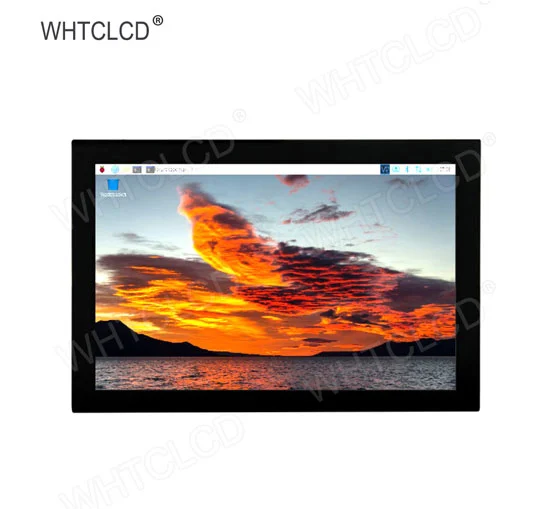

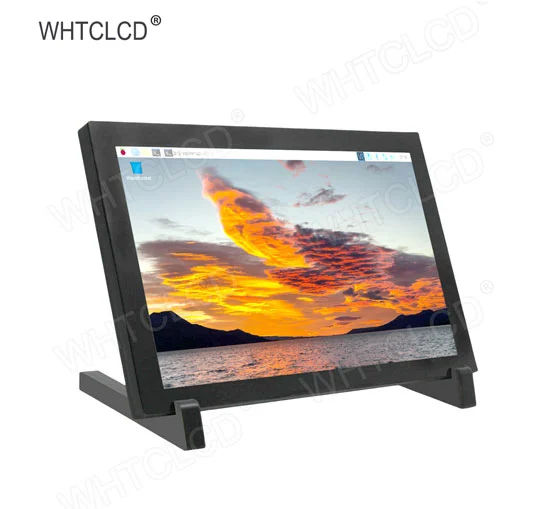

MPI8008 8 Inch Raspberry Pi HDMI LCD Display

Parameters of 8 Inch Raspberry Pi HDMI LCD Display

Raspberry Pi HDMI LCD Display
Remark: All Models Support Capacitive or Resistive Touch Panel.
Size (inch)	Resolution	Model	View	Interface	Product Size (mm)	Active Area (mm)	Audio	Touch panel	Power	OP(℃)
8	11280*800	MPI8008	IPS	HDMI	197.0132.012.0	172.22*107.64	NC	CTP	MicroUSB	-20~60°C

SKU	MPI8008
Screen Size	8 inch
LCD Type	IPS
Module Interface	HDMI
Resolution	1280*800 (Pixel)
Active Area	172.22*107.64 (mm)
Touch Screen Controller	Capacitive Touch Screen
LCD Driver IC	-
Backlight	LED
power consumption	MicroUSB（5V）
Working temperature（℃）	-20~60
Module Size	197.0132.012.0±0.2mm
Package Size	234.0164.062.0 (mm)
Rough Weight(Package containing) (g)	610 (g)

Features of 8 Inch Raspberry Pi HDMI LCD Display

8.0 inch IPS high-definition display screen

The viewing Angle is large

true color

picture quality is excellent

1280X800 resolution

HD vision

The display is very delicate

New touch panel

Tempered glass cover

Hardness up to 6H, more durable and more scratch resistant

High sensitivity capacitive touch screen

Accurate touch

Support up to 5 touch points

HDMI interface

HD input

Can be used as HDMI display

Support multiple device access

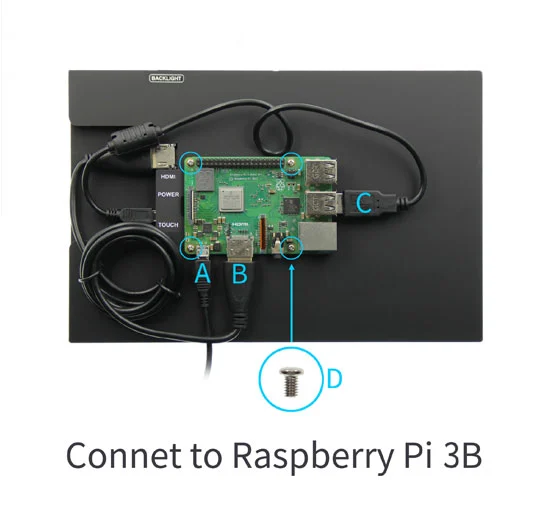

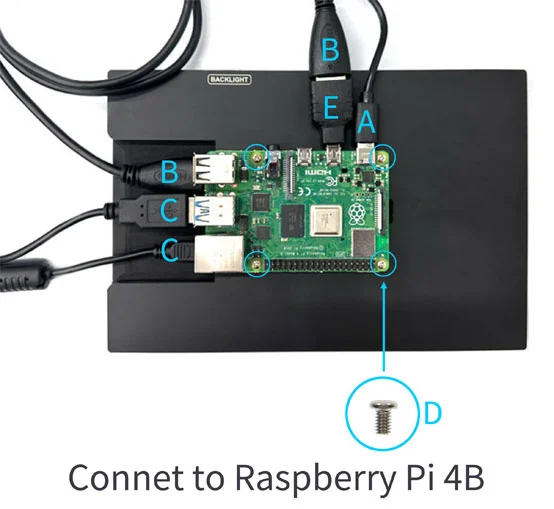

Can be connected to mainstream development boards such as raspberry pie, banana PI and BB black

Can be connected to PS4, XBOX360, switch and other mainstream game consoles

Can be connected to mainstream TV box and digital camera (display only)

Support multiple system display

Support raspbian, Kali Linux, Ubuntu, Kodi, win10 IOT and other systems, touch free drive

Support win7/8/10/11 and other systems, touch drive free

Passed CE and ROHS certification

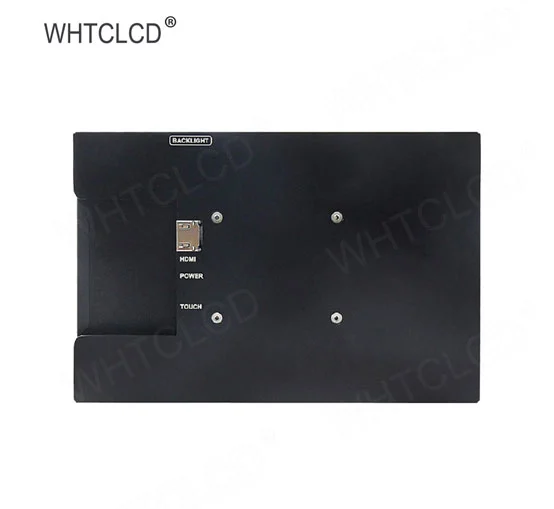

Hardware Description of 8 Inch Raspberry Pi HDMI LCD Display

stm32f103c6t6 stm32f103c8t6

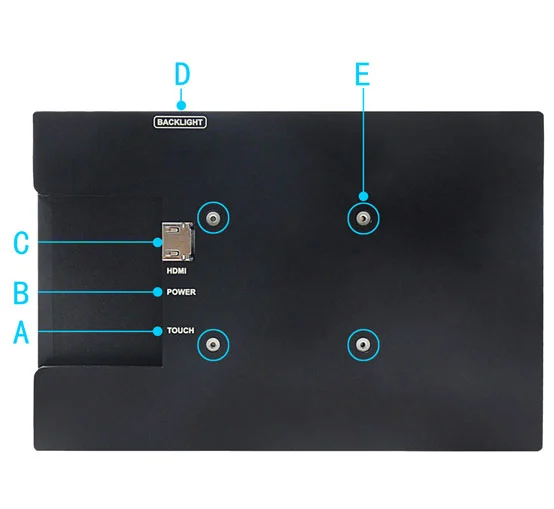

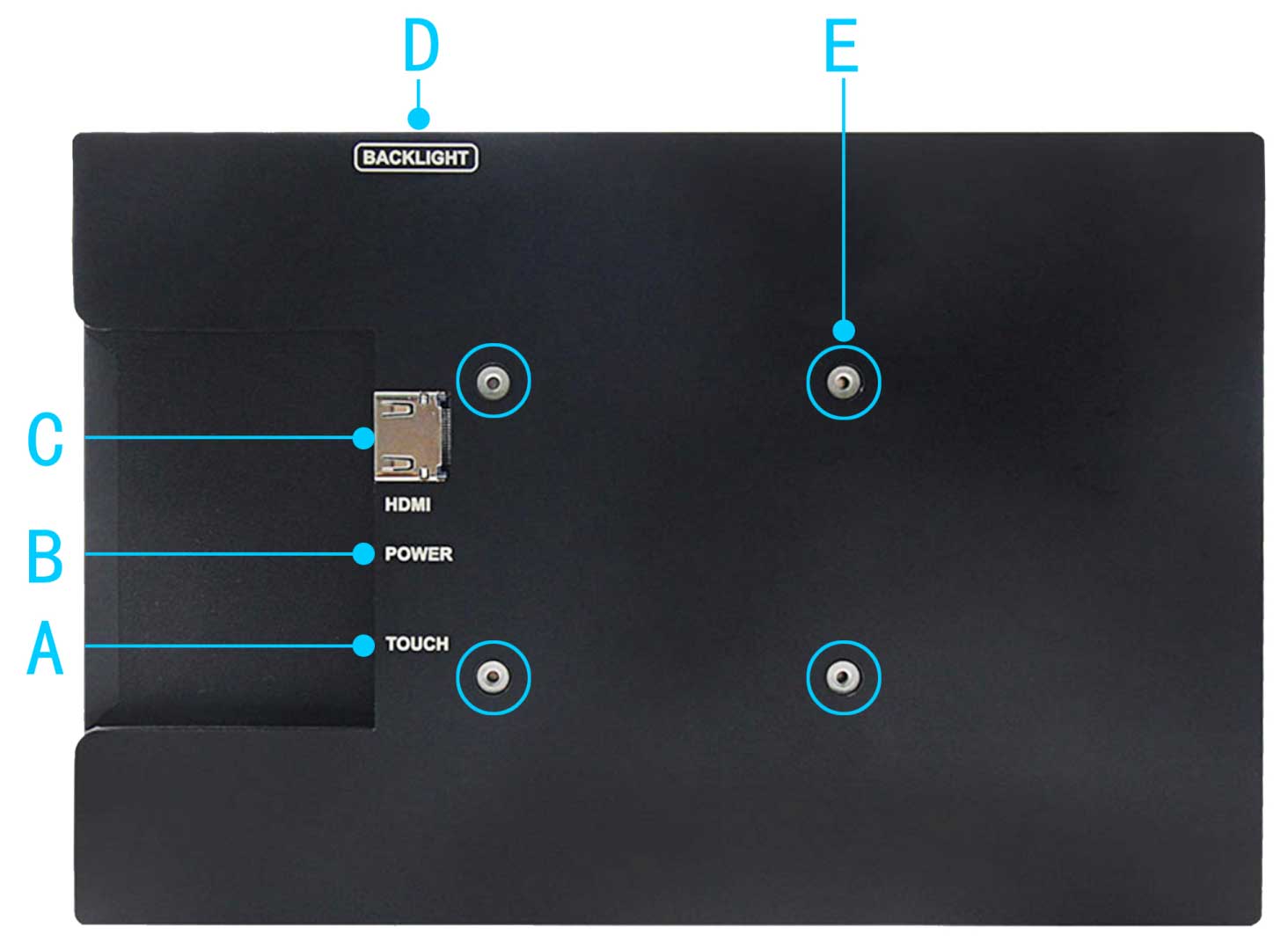

Hardware capabilities

KEY and Interface	DESCRIPTION
A: Touch touch interface	Micro USB cable is used to connect with the signal source device. This interface is used for touch and power supply
B: Power interface	Using micro USB cable and power connection, this interface is only used for power supply
C: HDMI interface	Use HDMI cable to connect with signal source equipment, and the maximum supported resolution is 1080p
D: Side key	It is used to adjust the brightness. Press once to increase the brightness by 10%. After reaching 100%, press once again to return to 10%; Press and hold for 3 seconds to turn off the backlight, and then press again to restore the original brightness

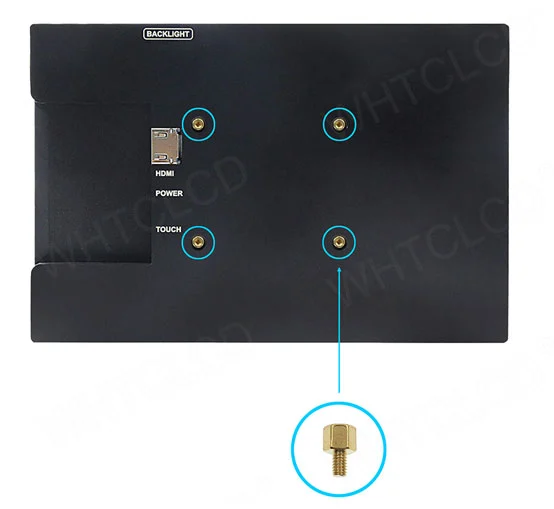

E: Copper pillar	Used to fix raspberry pie (M2.5)

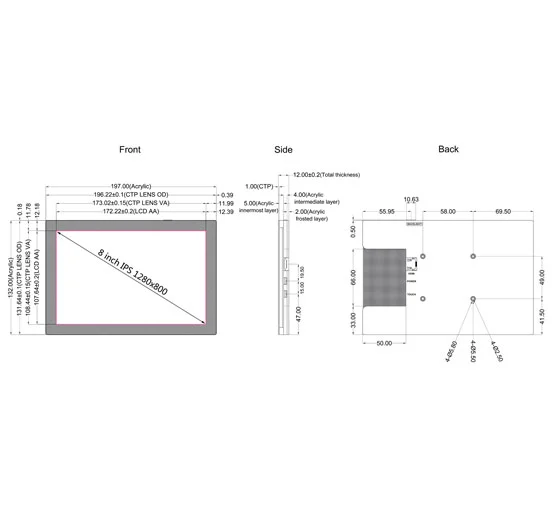

Product Size of 8 Inch Raspberry Pi HDMI LCD Display

stm32f103c8 development board
