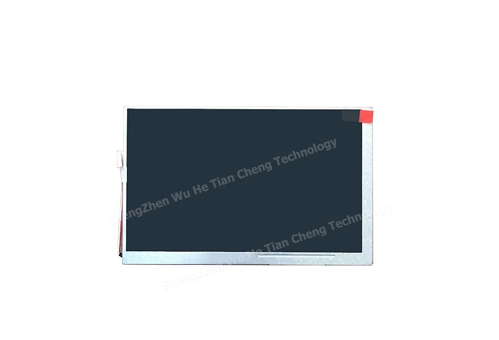

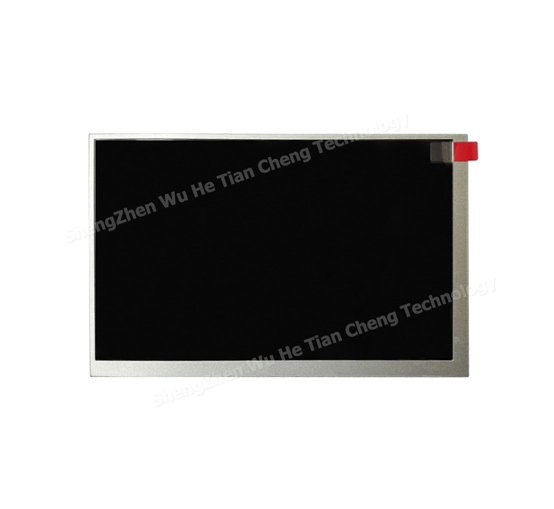

AT070TN83 V.1 7.0 Inch INNOLUX LCD Panel

Innolux 7 inch tft lcd panel AT070TN83 V.1 with 800(RGB)x480 WVGA resolution, brightness 300 cd/m². This lcd display is working temperature is -20 ~ +70 (°C) and its storage temperature is  -30 ~ +80 (°C). Based on its white LED backlight. This model is recommended for industrial use.

Original Innolux 7 Inch 800x480 WVGA TFT LCD Panel TTL Screen For Digital Photo Frame AT070TN83 V.1 With 300nit, Controller board.

Compatible resistive touch and capacitive touch options are available. Additionally, we provide a matched LCD controller board.

Products

Parameters of AT070TN83 V.1 7.0 Inch INNOLUX LCD Panel

Size(inch)ResolutionModelLCM Dimension(mm)Active Area(mm)ViewInterfaceLuminance(cd/m2)OP(℃)
7800*480AT070TN83 V.1165*104*5.5152.4*91.44TNRGB300-20~70°C



General Specifications of AT070TN83 V.1 7.0 Inch INNOLUX LCD Panel


AT070TN83 V.1

ManufacturerInnolux
Model NameAT070TN83 V.1
Screen Size7 inch
Pixel Number800(RGB)×480 , WVGA
Active Area152.4 (W) x 91.44 (H) mm
Outline165(W) x 104(H) x 5.5(D) mm
TreatmentAG
Luminance300 cd/m²
Contrast Ratio500:01:00
Viewing Angle70/70/50/70
Response time10/15ms
Work ModeTN , Normally White , Transmissive
Color Depth262K
BacklightWLED , 20K Hours , with LED driver
Net Weight130g
Touchscreenwithout
Signal Type/interface TypeTTL (1 ch, 6-bit) , 40 pins
Voltage Supply+3.3 V
TemperatureStorage Temp.: -30 ~ +80 (°C)
Operating Temp.: -20 ~ +70 (°C)
PackageInnolux original package;
50 pcs/carton;
