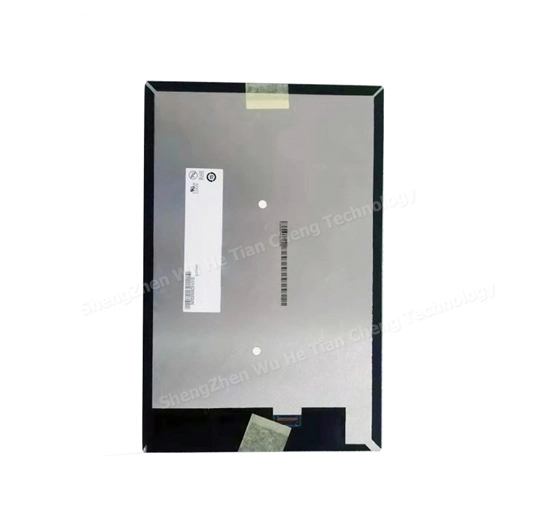

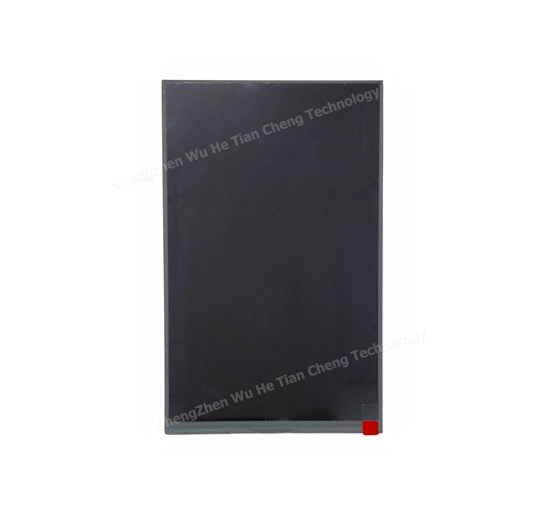

G101EAN01.0 10.1 AUO LCD Panel

Name: G101EAN01.0 10.1 AUO LCD Panel
Brand: Shenzhen Wu He Tian Cheng Technology Co., Ltd.

AUO 10.1 inch tft lcd ips panel G101EAN01.0 with 800(RGB)x1280 WXGA resolution, brightness 350 cd/m². This lcd display's working temperature is 0 ~ +50 (°C) and it's storage temperature is -20 ~ +60 (°C). Based on it's white LED backlight. This model is recommended for Industrial use.

Compatible resistive touch and capacitive touch options are available. Additionally, we provide a matched LCD controller board.

Products

Parameters of G101EAN01.0 10.1 AUO LCD Panel

Size(inch)	Resolution	Model	LCM Dimension(mm)	Active Area(mm)	View	Interface	Luminance(cd/m2)	OP(℃)
10.1	800*1280	G101EAN01.0	150.3232.434.8	135.36*216.576	IPS	MIPI	350	-0~50°C

General Specifications of G101EAN01.0 10.1 AUO LCD Panel

Manufacturer	AUO
Model Name	G101EAN01.0
Screen Size	10.1 inch
Pixel Number	800(RGB)×1280 , WXGA
Active Area(mm)	135.36 × 216.576 (H×V)
Outline(mm）	150.3 × 232.43 × 4.8 (H×V×D)
Pixel Pitch(mm)	0.1692 x 0.1692
Treatment	Anti Glare
Luminance	350 cd/m² (Typ.)
Contrast Ratio	1000 : 1 (Typ.) (TM)
Viewing Angle	85/85/85/85 (CR≥10)
Viewing Angle	Left/Right/UP/Down
Response	30(Typ.)(Tr+Td) ms
Work Mode	AHVA , Normally black , Transmissive
Color Depth	16.7M , 60% NTSC
Backlight	WLED , 15K hours , without Driver
Net Weight	161.gTyp.)
Touchscreen	without
Signal Type/interface Type	MIPI (4 data lanes) , 39 pins
Voltage Supply	+3.3 V (Typ./Max.)
Max. Ratings	Storage Temp.: -20 ~ +60 (°C)
Max. Ratings	Operating Temp.: 0 ~ +50 (°C)
Package	AUO Original package;
Package	40 pcs/carton
