Introducing our Bar TFT LCD series, available in sizes from 0.96 to 8.88 inches. These high-resolution displays deliver vibrant colors and wide viewing angles, making them perfect for industrial, automotive, and retail applications. Designed for durability and energy efficiency, they ensure reliable performance across diverse environments. Ideal for contemporary, space-constrained designs.


Products

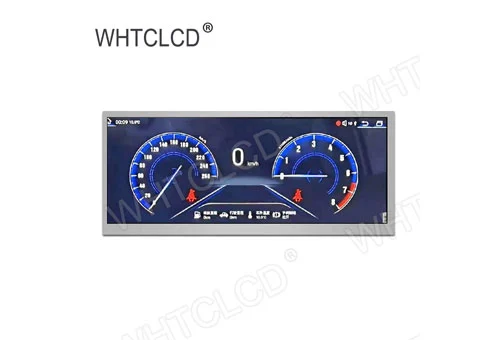

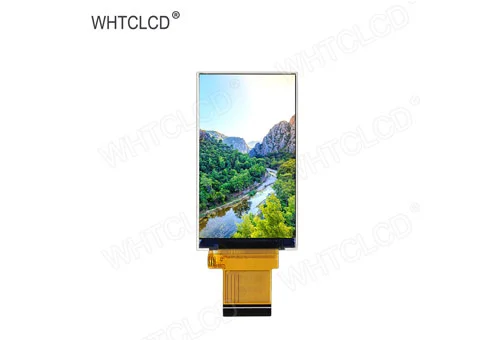

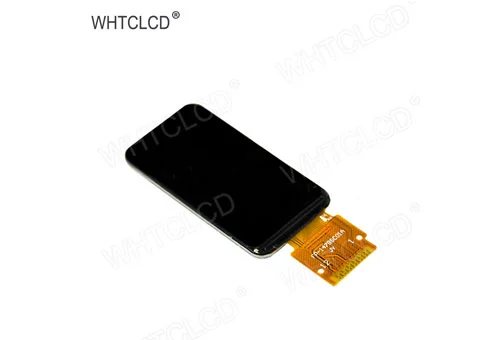

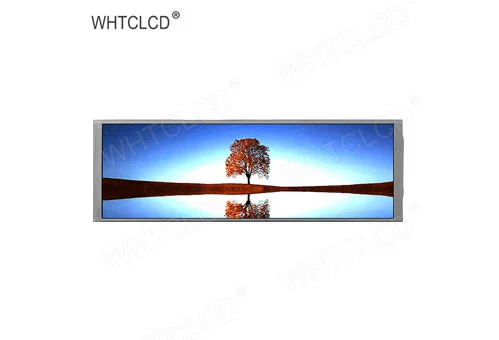

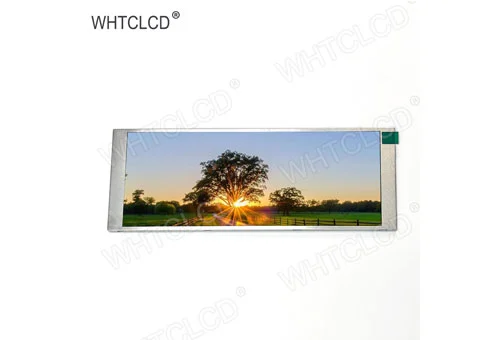

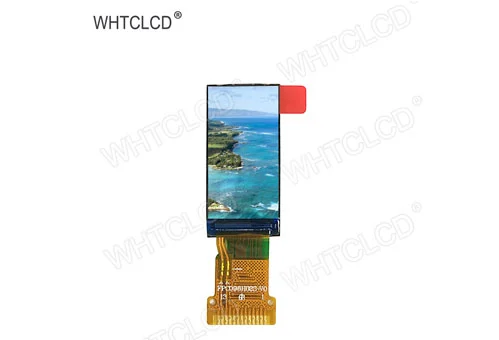

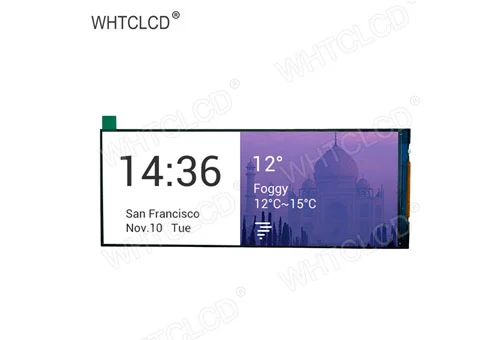

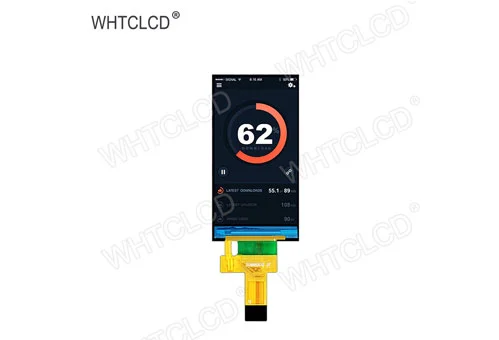

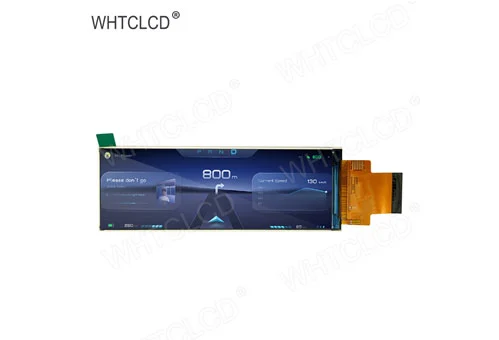

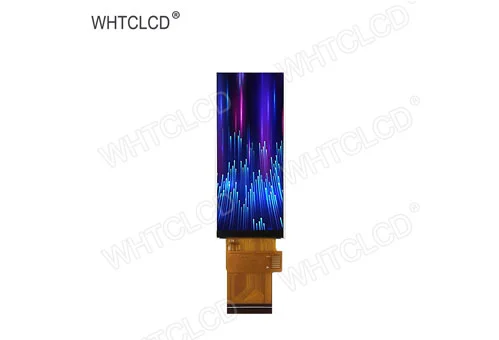

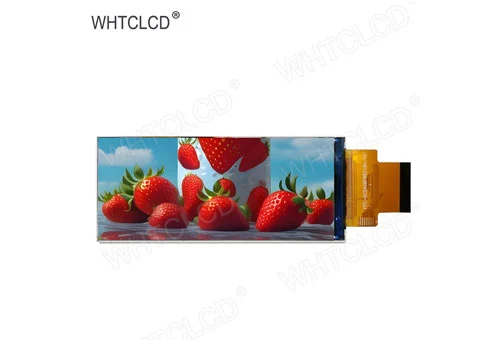

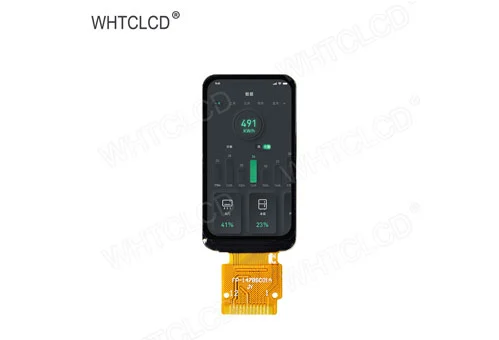

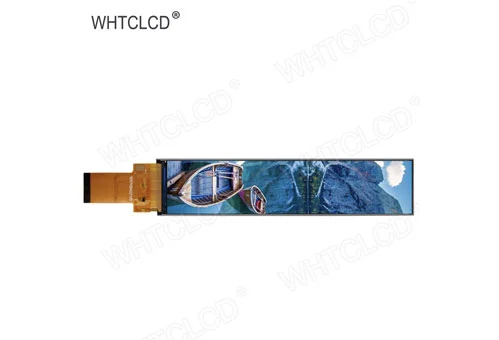

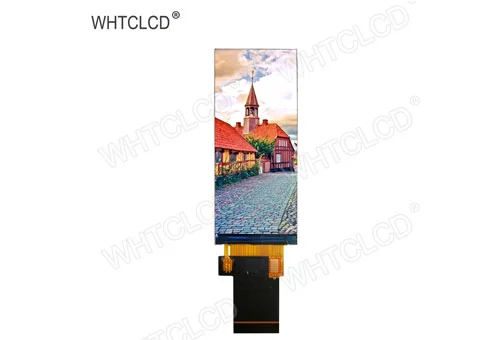

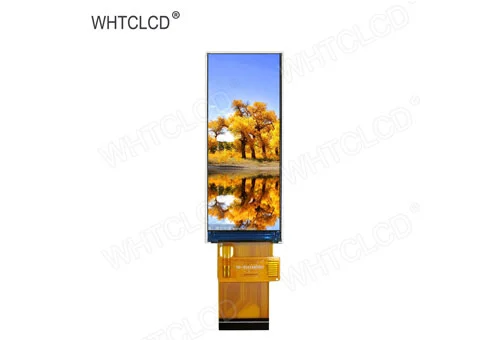

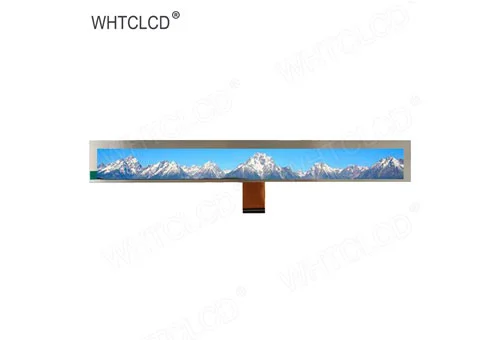

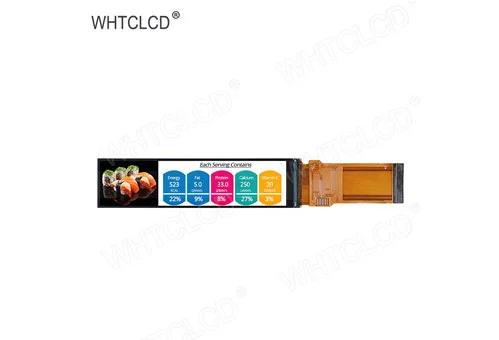

Bar TFT LCD Display For Sale

High-resolution Bar TFT LCD displays ranging from 0.96 to 8.88 inches, ideal for industrial, automotive, and consumer applications. Features vibrant colors, wide viewing angles, and robust durability.

Types of Bar TFT LCD Display

Remark: All Models Support Capacitive or Resistive Touch  Panel.
Size  (inch)ResolutionModelLCM Dimension    (mm)Active Area   (mm)ViewInterfaceBrightness    (nits)OP(℃)
0.9680*160W0096B13S1SI(Bar)13.5* 27.95* 1.5510.8*21.696IPS4-SPI300-20~70°C
1.47172*320W0147B12S1SI(Bar)19.65*36.76*1.617.65*32.83IPSSPI300-20~70°C
1.5170*320W0150B10S1SI(Bar)19.65*36.76*1.617.65*32.83IPSSPI300-20~70°C
1.9170*320W019B30S1CI-X01B0 (Bar)25.80*49.72*1.4322.70*42.72IPSMCU300-20~70°C
1.9170*320W019B16S1SI-X01B0 (Bar)25.80*49.72*1.4322.70*42.72IPSSPI300-20~70°C
2.4222*480W024B40S1RI-H02B030.3*63.11*2.1525.51*55.15IPSRGB300-20~70°C
3320*640W030B12H7MI (Bar)43.04*75.01*2.036.72*65.28IPSMIPI300-20~70°C
3268*800W030B12H8MI (Bar)26.52*78.75*1.6524.12*72IPSMIPI300-20~70°C
3.16320*820W0316B40H1RI (Bar)31.20*76.60*2.4026.40*67.65IPSRGB300-20~70°C
3.16320*820W0316B40H1MI (Bar)31.20*76.60*2.4026.40*67.65IPSMIPI300-20~70°C
3.5340*800W035B30H1MI(Bar)36.67*88.45*1.6133.97*81IPSMIPI300-20~70°C
3.5340*800W035B40H1RI(Bar)36.67*88.45*1.6133.97*81IPSMIPI300-20~70°C
3.71240*960W037B45H1RI(Bar)25.30*98.89*1.6122.86*91.44IPSRGB300-20~70°C
3.71240*960W037B30H1MI(Bar)25.30*98.89*1.6122.86*91.44IPSMIPI300-20~70°C
3.99400*960W040B40H1RI(Bar)42.9*102.08*2.2539.18*94.032IPSRGB300-20~70°C
3.99400*960W040B30H1MI(Bar)42.9*102.08*2.2539.18*94.032IPSMIPI300-20~70°C
4.58320*960W0458B40H3RI (Bar)41.57*118.80*2.5436.77*110.30IPSRGB300-20~70°C
4.58320*960W0458B30H3MI (Bar)41.57*118.80*2.5436.77*110.30IPSMIPI300-20~70°C
6.75480*1280W067B40H1RI(Bar)66.02*171.69*5.2760.19*160.51IPSRGB1000-20~70°C
6.75480*1280W067B30H1MI(Bar)66.02*171.69*5.2760.19*160.51IPSMIPI1000-20~70°C
6.86480*1280W068B40H6MI (Bar)66.6*181*4.560.22*160.59IPSMIPI300-20~70°C
7280*1424W070B40Z1RI-Z03B0 (Bar)38.2*181.47*3.4533.6*170.88IPSRGB300-20~70°C
7.84400*1280W078B40Z3RI-Z04B0 (Bar)67.8*206*4.5459.40*190.08IPSRGB300-20~70°C
10.41024*100W104P40S1RN-K1B0*288.92*41.5*6.89264.19*25.8TNRGB300-20~70°C
12.31920*720W123C40H1LI-Z016I0308.1×134.86×15.6292.32×109.62IPSLVDS300-20~71°C


How Does a Bar TFT LCD Display Differ from a Standard TFT LCD?

How Does a Bar TFT LCD Display Differ from a Standard TFT LCD?

A Bar TFT LCD Display differs from a standard TFT LCD primarily in its aspect ratio and form factor. While standard TFT LCDs typically have a more conventional aspect ratio like 16:9 or 4:3, Bar TFT LCDs feature an elongated, narrow design, often with aspect ratios such as 16:3 or 8:3. This unique shape makes Bar TFT LCDs ideal for specialized applications like digital signage, transportation displays, and industrial control panels where space constraints or specific display requirements exist. Despite the difference in shape, both types utilize the same Thin-Film Transistor technology for high-quality image rendering.


Bar TFT LCD Displays FAQs

  • Can Bar TFT LCD Displays be customized?

    Yes, many manufacturers offer customization options for size, resolution, brightness, and touch capabilities.

  • What is the power consumption of a Bar TFT LCD Display?

    Power consumption varies by size and brightness but typically ranges from 10W to 50W.

  • Are Bar TFT LCD Displays energy efficient?

    Many Bar TFT LCD Displays are designed to be energy-efficient, often incorporating LED backlighting to reduce power consumption.

  • What kind of mounting options are available for Bar TFT LCD Displays?

    Mounting options include VESA mounts, panel mounts, and custom enclosures.

  • Do Bar TFT LCD Displays support multiple input sources?

    Yes, many Bar TFT LCD Displays support multiple input sources, allowing for flexible content management.
