Our range of Capacitive Touch UART LCD Displays offers sizes from 1.54 to 10.1 inches, providing high-quality touch interaction and seamless UART communication. Ideal for various applications, these displays ensure responsive touch performance and easy integration into your projects. Perfect for enhancing user interfaces with reliable touch technology.


Products

Capacitive Touch UART LCD Displays For Sale

Discover our range of Capacitive Touch UART LCD Displays, available in sizes from 1.54 to 10.1 inches, offering responsive touch and seamless integration for your projects.

Types of Capacitance Touch UART LCD Product Model List

SizeResolutionModelBezel Opening(mm)Active Area(mm)Viewing AngleLuminance(nits)InterfaceRS485ModbusCANTouch PanelOP(℃)SKUDatasheet

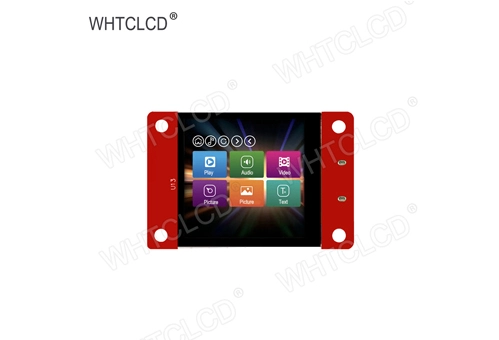

1.54”240*240W0154U2424-C48.75*32.62*1127.72*25.62IPS300UARTNCNCNCCTP-20~70°CW2060150020Click
W0154U2424M-C48.75*32.62*1127.72*25.62IPS300UARTNCYESNCCTP-20~70°CW2060150021Click
2.4”240*320W024U2432-C73.47*45*1148.96*36.72TN300UARTNCNCNCCTP-20~70°CW2060240020Click
W024U2432M-C73.47*45*1148.96*36.72TN300UARTNCYESNCCTP-20~70°CW2060240021Click
W024U2432-5-C73.47*45*1148.96*36.72TN300NCYESNCNCCTP-20~70°CW2060240022Click
W024U2432M-5-C73.47*45*1148.96*36.72TN300NCYESYESNCCTP-20~70°CW2060240023Click
2.8”240*320W028U2432-C82*52*1157.6*43.2TN300UARTNCNCNCCTP-20~70°CW2060280020Click
W028U2432M-C82*52*1157.6*43.2TN300UARTNCYESNCCTP-20~70°CW2060280021Click
W028U2432-5-C82*52*1157.6*43.2TN300NCYESNCNCCTP-20~70°CW2060280022Click
W028U2432M-5-C82*52*1157.6*43.2TN300NCYESYESNCCTP-20~70°CW2060280023Click
3.2”240*320W032U2432-C91*55.34*1164.8*48.6TN300UARTNCNCNCCTP-20~70°CW2060320020Click
W032U2432M-C91*55.34*1164.8*48.6TN300UARTNCYESNCCTP-20~70°CW2060320021Click
W032U2432-5-C91*55.34*1164.8*48.6TN300NCYESNCNCCTP-20~70°CW2060320022Click
W032U2432M-5-C91*55.34*1164.8*48.6TN300NCYESYESNCCTP-20~70°CW2060320023Click
3.5”320*480W035U3248-C96*48.96*1173.44*48.96TN300UARTNCNCNCCTP-20~70°CW2060350020Click
W035U3248M-C96*48.96*1173.44*48.96TN300UARTNCYESNCCTP-20~70°CW2060350021Click
W035U3248-5-C96*48.96*1173.44*48.96TN300NCYESNCNCCTP-20~70°CW2060350022Click
W035U3248M-5-C96*48.96*1173.44*48.96TN300NCYESYESNCCTP-20~70°CW2060350023Click

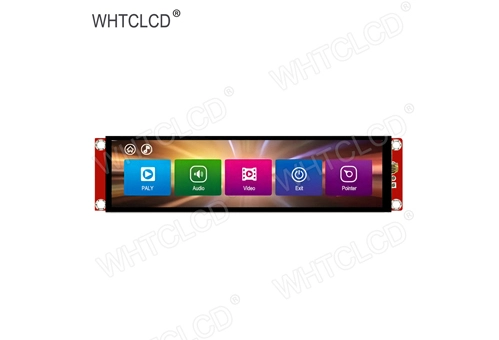

3.71”240*960W0371U2496-C26*110*1122.91*91.45IPS300UARTNCNCNCCTP-20~70°CW2060370020Click
W0371U2496M-C26*110*1122.91*91.45IPS300UARTNCYESNCCTP-20~70°CW2060370021Click
4.3”480*272W043U4827-C123*68.2*1194.4*53.86TN300UARTNCNCNCCTP-20~70°CW2060430020Click
W043U4827M-C123*68.2*1194.4*53.86TN300UARTNCYESNCCTP-20~70°CW2060430021Click
W043U4827-5-C123*68.2*1194.4*53.86TN300NCYESNCNCCTP-20~70°CW2060430022Click
W043U4827M-5-C123*68.2*1194.4*53.86TN300NCYESYESNCCTP-20~70°CW2060430023Click
4.3”800*480W043U8048-C123*68.2*1194.4*53.86IPS300UARTNCNCNCCTP-20~70°CW2060438020Click
W043U8048M-C123*68.2*1194.4*53.86IPS300UARTNCYESNCCTP-20~70°CW2060438021Click
W043U8048-5-C123*68.2*1194.4*53.86IPS300NCYESNCNCCTP-20~70°CW2060438022Click
W043U8048M-5-C123*68.2*1194.4*53.86IPS300NCYESYESNCCTP-20~70°CW2060438023Click
7”800*480W070U8048-C182*101*11154.21*85.92TN300UARTNCNCNCCTP-20~70°CW2060700020Click
W070U8048M-C182*101*11154.21*85.92TN300UARTNCYESNCCTP-20~70°CW2060700021Click
W070U8048-5-C182*101*11154.21*85.92TN300NCYESNCNCCTP-20~70°CW2060700022Click
W070U8048M-5-C182*101*11154.21*85.92TN300NCYESYESNCCTP-20~70°CW2060700023Click
7”1024*600W070U1060-C182*101*11154.21*85.92IPS300UARTNCNCNCCTP-20~70°CW2060701020Click
W070U1060M-C182*101*11154.21*85.92IPS300UARTNCYESNCCTP-20~70°CW2060701021Click
W070U1060-5-C182*101*11154.21*85.92IPS300NCYESNCNCCTP-20~70°CW2060701022Click
W070U1060M-5-C182*101*11154.21*85.92IPS300NCYESYESNCCTP-20~70°CW2060701023Click
10.1”1024*600W101U1060-C252*143.2222.72*125.28IPS300UARTNCNCNCCTP-20~70°CW2060101020Click
W101U1060M-C252*143.2222.72*125.28IPS300UARTNCYESNCCTP-20~70°CW2060101021Click
W101U1060-5-C252*143.2222.72*125.28IPS300NCYESNCNCCTP-20~70°CW2060101022Click
W101U1060M-5-C252*143.2222.72*125.28IPS300NCYESYESNCCTP-20~70°CW2060101023Click


What Is the Difference Between Resistive and Capacitive Touch Technology in Uart LCD Displays?

What Is the Difference Between Resistive and Capacitive Touch Technology in Uart LCD Displays?

Resistive and capacitive touch technologies are commonly used in UART LCD displays, each with distinct characteristics. Resistive touch screens consist of multiple layers that register touch through pressure, making them compatible with any input device, such as a stylus or gloved finger. They are generally more affordable but less durable and offer lower clarity. Capacitive touch screens, on the other hand, use a conductive layer to detect touch through the electrical properties of the human finger. They provide higher clarity, better durability, and support multi-touch gestures, but require direct skin contact or a specialized stylus.


Capacitive Touch UART LCD Display FAQs

  • How does a Capacitive Touch UART LCD Display work?

    It detects touch through changes in capacitance on the screen surface and sends data to a microcontroller or computer via UART communication.


  • What are the advantages of using a Capacitive Touch UART LCD Display?

    Advantages include multi-touch capability, high sensitivity, durability, and ease of integration with UART communication.


  • Can a Capacitive Touch UART LCD Display support multi-touch gestures?

    Yes, most capacitive touch displays support multi-touch gestures like pinch, zoom, and swipe.


  • What voltage levels are required for a Capacitive Touch UART LCD Display?

    Most displays operate at 3.3V or 5V, but you should check the specific requirements of your display model.


  • What is the typical response time for a Capacitive Touch UART LCD Display?

    The response time is usually very fast, often less than 10 milliseconds.
