Circular TFT LCD displays, ranging from 1.45" to 5.0", deliver high resolution, vibrant colors, and wide viewing angles. Ideal for wearables, automotive, medical, and consumer electronics, these displays offer optional touch functionality and robust performance, enhancing user experience with their unique and modern design.


Products

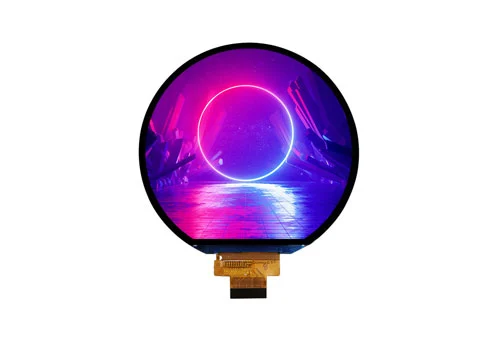

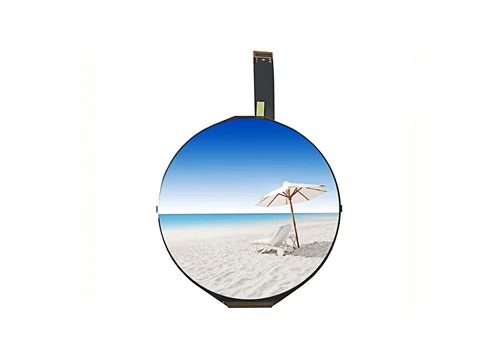

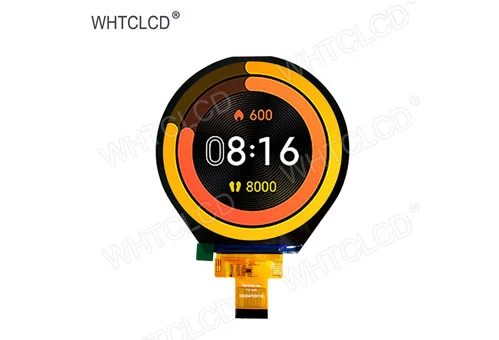

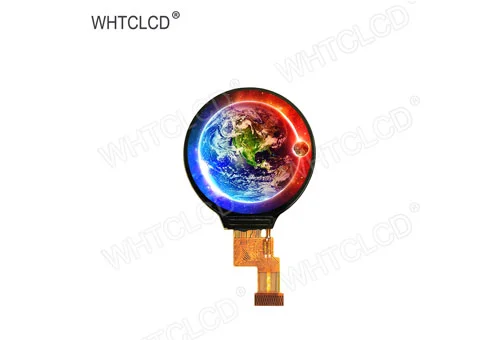

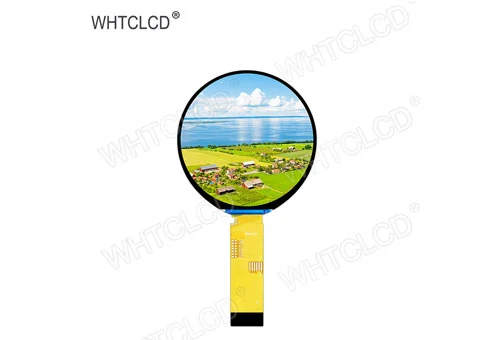

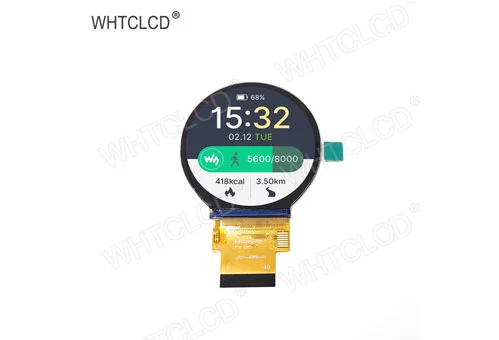

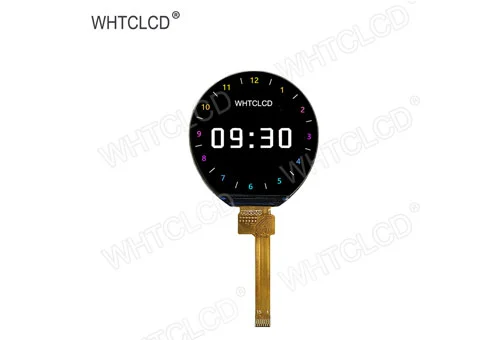

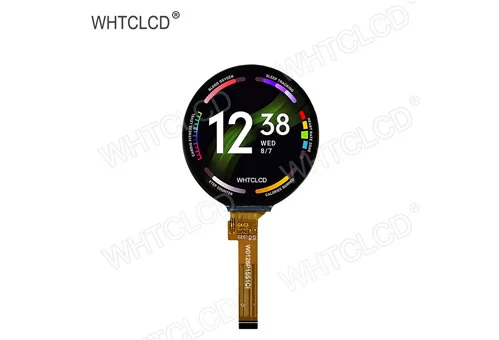

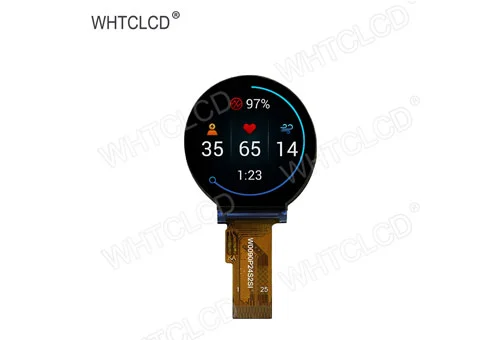

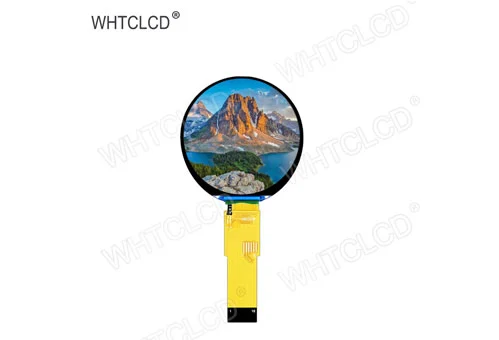

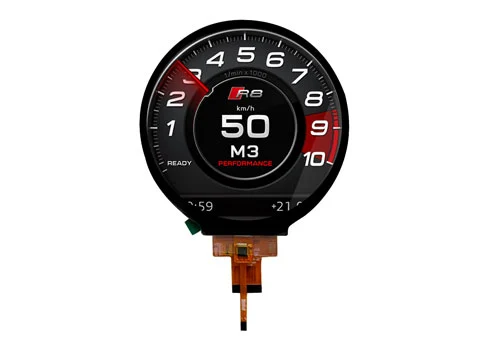

Circular TFT LCD Display For Sale

Circular TFT LCD displays, available in sizes from 1.45" to 5.0", offer high resolution, vibrant colors, and wide viewing angles, ideal for wearables, automotive, medical, and consumer electronics.

Types of Circular TFT LCD Display

Remark: All Models Support Capacitive or Resistive Touch  Panel.
Size  (inch)ResolutionModelLCM Dimension    (mm)Active Area   (mm)ViewInterfaceBrightness    (nits)OP(℃)
0.9240*240W0090R24S2SI(Round)25.24*27.14*1.5523.038*23.034IPSMCU/SPI300-20~70°C
1.28240*240W0128R15S1CI(Round)35.6* 38.1*1.5632.4*32.4IPSMCU/SPI400-20~70°C
1.32360*360W0132R15S3SI (Round)35.24*37.67*2.1530.5*91.5IPSSPI
-20~70°C
1.46360*360W0146R18S1SI (Round)39.3*40.96*1.636.94*36.94IPSQSPI
-20~70°C
1.6400*400W0160R16H1SI-X01B0 (Round)42.9*45.89*1.6040.5*40.5IPSSPI
-20~70°C
1.6400*400W0160R20H1MI-X01B0(Round)42.9*45.89*1.6040.5*40.5IPSMIPI
-20~70°C
1.8360*360W018R40S1RI-X02B0 (Circular)48.08*49.95*1.9645.86*45.86IPSRGB300-500-20~70°C
1.8360*360W018R20S1RMI-X02B0 (Circular)48.08*49.95*1.9645.86*45.86IPSMIPI300-500-20~70°C
2.1480*480W021R30S1MI-(Round)56. 18*59.71*2.353.28*53.28IPSMIPI300-600-20~70°C
2.1480*480W021R40S2RI(Round)56. 18*59.71*2.353.28*53.28IPSRGB300-600-20~70°C
2.76480*480W0276R30S1MI-H02B0 (Circular)73.03*76.48*2.370.128*70.128IPSMIPI300-20~70°C
2.76480*480W0276R40S1RI-H02B0 (Circular)73.03*76.48*2.370.128*70.128IPSRGB300-20~70°C
3.4800*800W034R40S1RI-H02B0 (Circular)94.90*96.95*1.1687.60*87.60IPSSPI+RGB300-20~70°C
3.6544*506W036R30H1LI-X02B095.46*91.81*2.389.76*83.49IPSLVDS300-20~70°C
4720*720W040R30H2MI-X02B0 (Round)105.3*109.6*2.3101.52*101.52IPSMIPI400/800/1000-20~70°C
4720*720W040R40H2RI-X02B0 (Round)105.3*109.6*2.3101.52*101.52IPSRGB400/800/1000-20~70°C
51080*1080W050R50H1MI(Round)132.2×136.53×2127.008×127.008IPSMIPI300-20~70°C

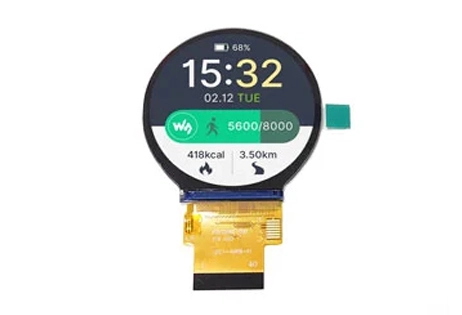

How Does a Circular TFT LCD Display Differ from a Rectangular One?

How Does a Circular TFT LCD Display Differ from a Rectangular One?

A Circular TFT LCD Display differs from a rectangular one primarily in its shape, which allows for unique design applications and aesthetic appeal. Circular displays are often used in smartwatches, automotive dashboards, and specialized industrial equipment where a round interface is more intuitive or space-efficient. Technologically, both types use Thin-Film Transistor (TFT) technology for high-quality image rendering, but the manufacturing process for circular displays can be more complex and costly due to the non-standard shape. Additionally, software interfaces may need customization to effectively utilize the circular screen area, unlike the more conventional rectangular displays.


Circular TFT LCD Displays FAQs

  • Are Circular TFT LCD Displays durable?

    Yes, they are designed to be durable and can often withstand harsh environmental conditions, including temperature extremes and vibrations.

  • What is the lifespan of a Circular TFT LCD Display?

    The lifespan can be quite long, often exceeding 50,000 hours of operation.


  • What is the typical brightness of a Circular TFT LCD Display?

    Brightness levels can range from 200 to 1000 nits, depending on the specific model and application requirements.


  • Are Circular TFT LCD Displays touch-sensitive?

    Many Circular TFT LCD Displays come with capacitive touch functionality, allowing for interactive touch control.


  • What is the viewing angle of a Circular TFT LCD Display?

    Circular TFT LCD Displays typically offer wide viewing angles, often up to 160 degrees or more.
