Introducing our range of EDP LCD Controller Boards, designed for versatile display solutions. With options supporting HDMI and Type-C inputs, multiple resolutions, and touch panel compatibility, these boards cater to LCD screens from 10.1 to 22 inches. Power supply options range from 3.3V to 20V.


Products

Different Types of EDP LCD Controller Boards

Presenting our collection of EDP LCD Controller Boards, crafted for adaptable display applications. Featuring support for HDMI and Type-C inputs, a variety of resolutions, and touch panel compatibility, these boards are ideal for LCD screens ranging from 10.1 to 22 inches.

Types of EDP LCD Controller Board

No.ModelParameterinterfaceTouchpower supply

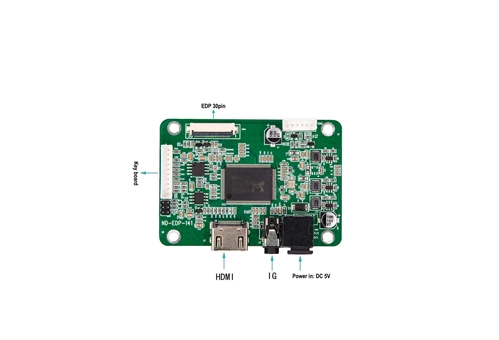

1ND-EDP-141HDMI Signal input; Supports multiple resolutions, With sound output, Supports 10.1~17.3 inch LCD screenEDP 30pinNODC+5V

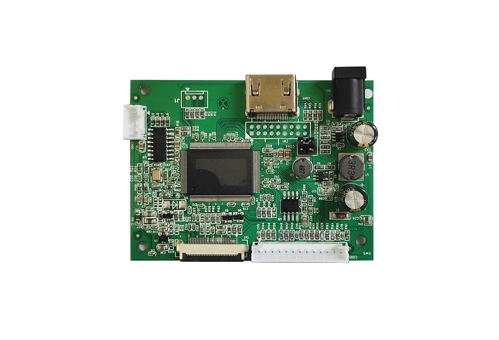

2PCB800807HDMI Signal input; Supports multiple resolutions, Supports 10.1~15.6 inch LCD screenEDP 30pinNODC+5V~20V

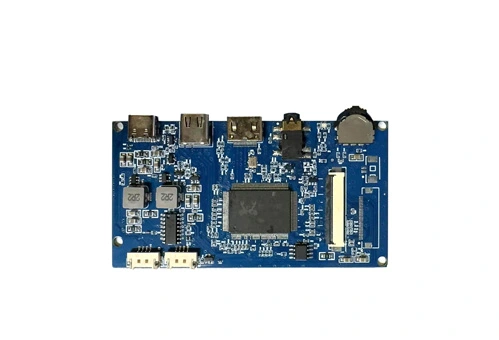

3PCB800869Type-C / HDMI Signal input; Supports multiple resolutions, sound output, TOUCH PANEL Supports 10.1~18 inch LCD screenEDP 30pin / 40pinYESDC+5V
4WH-RTD2556Type-C / HDMI Signal input; Supports multiple resolutions, sound output, TOUCH PANEL Supports 10.1~18 inch LCD screenEDP 30pin / 40pinYESDC+5V
5H50-EDPHDMI Signal input; Supports multiple resolutions, Sound putput Supports 11.6~22 inch LCD screenEDP 30pinYESDC12V

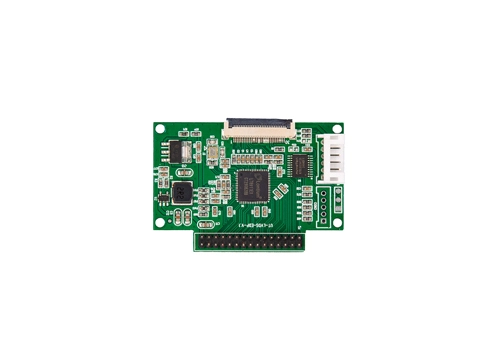

6UT-LVDS-EDP V.1LVDS to EDPEDP 30pinNO3.3 / 5V


What Is the Difference Between EDP and LVDS LCD Controller Boards?

What Is the Difference Between EDP and LVDS LCD Controller Boards?

EDP (Embedded DisplayPort) and LVDS (Low-Voltage Differential Signaling) are two types of LCD controller boards used to interface with display panels. EDP is a newer technology that offers higher data transfer rates, improved power efficiency, and supports higher resolutions and refresh rates compared to LVDS. LVDS, on the other hand, is an older standard that is widely used and known for its simplicity and reliability. While EDP is more suitable for modern, high-performance displays, LVDS remains popular for its cost-effectiveness and compatibility with a wide range of existing hardware.


EDP LCD Controller Board FAQs

  • Do EDP LCD Controller Boards support audio output?

    Some EDP LCD Controller Boards come with audio output options, such as a headphone jack or speaker connectors.


  • How do I choose the right EDP LCD Controller Board for my display?

    You need to match the controller board to your LCD panel’s resolution, refresh rate, and connector type. Check the panel’s datasheet for compatibility.


  • Can an EDP LCD Controller Board support 4K resolution?

    Yes, many modern EDP LCD Controller Boards support 4K resolution, but you need to ensure your specific board and display panel are compatible.


  • What power supply do I need for an EDP LCD Controller Board?

    Most EDP LCD Controller Boards require a 12V power supply, but you should check the specifications of your particular board.
