IPS TFT LCD Display Wholesale Manufacturer/Supplier



Our lineup of IPS TFT LCD displays spans sizes from 0.96 to 32 inches, delivering vibrant colors and wide viewing angles. These displays are perfect for a variety of applications, providing high-quality visuals and dependable performance. Ideal for consumer electronics, industrial equipment, and beyond.

Types of IPS TFT LCD Display / IPS TFT

Size(inch)	Resolution	Model	LCM Dimension(mm)	Active Area(mm)	View	Interface	Brightness(nits)	OP(℃)
1.69	240*280	W0169P12S1SI	30.0737.431.9	27.97*32.63	IPS	SPI	300	-20~70°C
1.69	240*280	W0169P12S2SI	30.0737.431.9	27.97*32.63	IPS	SPI	300	-20~70°C
2	240*320	W020P30S1CI-A02B0	37.6851.32.3	31.68*39.6	IPS	MCU	300	-20~70°C
2	240*320	W020P12S1SI-A02B0	34.647.82.1	30.82*40.8	IPS	SPI	300	-20~70°C
2	480*360	W020P24S1MI	46.140.962.53	40.82*30.62	IPS	MIPI	300	-20~70°C
2.4	240*320	W024P40S1RI-A02B0	42.7260.262.3	36.72*48.76	IPS	RGB	300	-20~70°C
2.4	240*320	W024P37S1CI-A02B0	42.7260.262.3	36.72*48.76	IPS	MCU	300	-20~70°C
2.4	240*320	W024P18S1SI-A02B0	42.7260.262.3	36.72*48.76	IPS	SPI	300	-20~70°C
2.4	240*320	W024P24S1MI	40.5257.002.15	36.72*48.76	IPS	MIPI	300	-20~70°C
2.8	240*320	W028P40S1RI-A02B0	5069.22.3	43.20*57.60	IPS	RGB	300	-20~70°C
2.8	240*320	W028P18S2SI-A02B0	5069.22.3	43.20*57.60	IPS	SPI	300	-20~70°C
2.8	240*320	W028P37S1CI-A02B0	5069.22.4	43.20*57.60	IPS	MCU	300	-20~70°C
3	480*854	W030P40H1SI	42.7074.702.50	37.44*66.61	IPS	SPI	300	-20~70°C
3	480*854	W030P40H2RI	42.7074.702.50	37.44*66.61	IPS	RGB	300	-20~70°C
3	480*854	W030P12H1MI	40.6474.681.74	37.44*66.61	IPS	MIPI	300	-20~70°C
3	480*854	W030P12H2RI	40.6474.681.74	37.44*66.61	IPS	RGB	300	-20~70°C
3.2	240*320	W032P40S1RI-A02B0	55.04772.2	48.6*64.8	IPS	RGB	300	-20~70°C
3.2	240*320	W032P18S1SI-A02B0	5477.42.4	48.6*64.8	IPS	SPI	300	-20~70°C
3.5	320*240	W035P54S1RI-H03I0	76.7863.743.20	70.08*52.56	IPS	RGB	300~1500	-30~80°C
3.5	320*480	W035P24S3MI-A02H0	53.7682.392.23	48.96*73.44	IPS	MIPI	300~1500	-20~70°C
3.5	320*480	W035P18S1SI-A02H0	54.5832.3	48.96*73.44	IPS	SPI	300~1500	-20~70°C
3.5	320*480	W035P37S1RI-A02H0	54.5832.3	48.96*73.44	IPS	MCU	300~1500	-20~70°C
3.5	320*480	W035P40S1RI-A02H0	55.2684.522.7	48.96*73.44	IPS	RGB	300~1500	-20~70°C
3.5	640*480	W035P60H1RI	76.8463.843.27	70.08*52.56	IPS	RGB	400	-30~80°C
3.5	480*800	W035P25H1MI	50.185.82.1	45.36*75.6	IPS	MIPI	400	-20~70°C
3.5	480*800	W035P40H1SI	50.185.82.1	45.36*75.6	IPS	SPI+RGB	400	-20~70°C
3.5	320*240	W035P54S2RN-H03I0	76.963.93.2	70.08*52.26	IPS	RGB	300~1500	-30~80°C
3.97	480*800	W0397P40H1SI	55.4496.151.71	51.84*86.40	IPS	SPI+RGB	300~1500	-20~70°C
3.97	480*800	W0397P40H2MI	55.4496.151.71	51.84*86.40	IPS	MIPI	300	-20~70°C
3.97	480*800	W0397P40H3MI	57.1496.852.3	51.84*86.40	IPS	MIPI	300	-20~70°C
3.97	480*800	W0397P40H4MI	55.4496.151.71	51.84*86.40	IPS	MIPI	300	-20~70°C
3.98	320*480	W0398P12S1SI-T12B0	60.8894.572.32	55.68*83.82	IPS	SPI	300	-20~70°C
4.3	480*272	W043P40S1RI-Q53B0	105.567.23	95.04*53.86	IPS	RGB	260~1500	-20~70°C
4.3	800*480	W043P40H1RI-Q53B0	105.567.23	95.04*53.86	IPS	RGB	260~1500	-20~70°C
4.3	480*800	W043P40H2MI-Z02B0	60.46103.651.86	56.16*93.70	IPS	MIPI	260~1500	-20~70°C
4.5	480*854	W045P24H1MI	58.69107.482.03	55.44*98.64	IPS	MIPI	300	-20~70°C
4.5	480*854	W045P24H2MI	58.75107.41.9	55.44*98.64	IPS	MIPI	300	-20~70°C
5	800*480	W050P40H2RI-Q53B0	105.567.23.0	95.04*53.86	IPS	RGB	300-1500	-20~70°C
5	800*480	W050P40H1RI-Q53B0	120.775.93.0	108*64.8	IPS	RGB	300-1500	-30~80°C
5	480*854	W050P40H2SI-S22B0	65.3119.32.05	62.63*110.65	IPS	SPI+RGB	340	-20~70°C
5	480*854	W050P24H1MI-S22B0	66.4120.752.1	62.56*110.53	IPS	MIPI	380	-20~70°C
5	720*1280	W050P24H2MI-S21B0	65.3119.31.8	62.9*111.2	IPS	MIPI	380	-20~70°C
5	480*854	W050P24H3MI-S22B0	65.3119.32.05	63.06*111.22	IPS	MIPI	340	-20~70°C
5.19	416*1280	W0519P50H1MI	426.52533.500.8	40.7472*125.376	IPS	MIPI	300	-20~70°C
5.5	720*1280	W055P25H1MI-S22B0	74.28133.212.86	69.24*122.16	IPS	MIPI	260	-20~70°C
5.5	720*1280	W055P31H1MI-S21B0	70.34128.11.55	68.84*122.42	IPS	MIPI	260	-20~70°C
5.5	720*1440	W055P30H1MI-S21B0	64.32130.581.75	62.68*124.37	IPS	MIPI	420	-20~70°C
5.5	1080*1920	W055P25H3MI-S21B0	70.64129.171.5	69.64*126.56	IPS	MIPI	450	-20~70°C
5.5	1080*1920	W055P25H4MI-S22B0	74.28133.212.6	69.64*126.56	IPS	MIPI	260	-20~70°C
5.5	1080*1920	W055P25H5MI-S21B0	72.14130.861.85	69.64*126.56	IPS	MIPI	450	-20~70°C
5.7	640*480	W057P30S1RI-Z011B0	147.61006	115.2*86.4	IPS	RGB	1200	-30~80°C
6	720*1440	W060P31H1MI	70.24142.593.15	69.04*137.08	IPS	MIPI	300	-20~70°C
6.9	720*1440	W069P30H1MI	83.75169.372.35	78.02*156.04	IPS	MIPI	260	-20~70°C
6.95	600*1024	W070P31H1MI-J02B0	95163.32.6	89.28*152.37	IPS	MIPI	300	-20~70°C
6.95	600*1024	W070P45H1MI-J02B0	95163.32.6	89.28*152.37	IPS	MIPI	300	-20~70°C
6.95	720*1280	W070P30H1MI-J02B0	95163.32.6	86.94*154.56	IPS	MIPI	300~500	-20~70°C
6.98	720*1280	W070P30H6MI-J02B0	91.5165.92.6	86.94*154.56	IPS	MIPI	300~500	-20~70°C
6.98	720*1280	W070P40H6MI-J02B0	921672.6	86.94*154.56	IPS	MIPI	300~500	-20~70°C
7	800*480	W070P50S3RI-J05B0	1651005.5	154.08*85.92	IPS	RGB	260~1500	-30~80°C
7	1024*600	W070P50H1RI-J02B0	1641002.8	154.08*85.92	IPS	RGB	260~1500	-20~70°C
7	1024*600	W070P50H1RI-J03B0	1641003.5	154.08*85.92	IPS	RGB	260~1500	-20~70°C
7	1024*600	W070P50H1RI-J05B0	1641005.5	154.08*85.92	IPS	RGB	260~1500	-30~80°C
7	1024*600	W070P40H6LI-J02B0	164972.6	154.08*85.92	IPS	LVDS	260~1500	-20~70°C
7	1024*600	W070P40H1LI-J02B0	1641002.8	154.08*85.92	IPS	LVDS	260~1500	-20~70°C
7	1024*600	W070P40H1LI-J03B0	1641003.5	154.08*85.92	IPS	LVDS	260~1500	-20~70°C
7	1024*600	W070P40H3LI-J05B0	1641005.5	154.08*85.92	IPS	LVDS	260~1500	-30~80°C
7	1024*600	W070P40H1MI-J03B0	1641033.5	153.6*86.64	IPS	MiPi	260~1500	-20~70°C
7	1024*600	W070P40H2MI-J03B0	1641043.5	153.6*86.64	IPS	MiPi	260~1500	-20~70°C
7	1024*600	W070P30H1MI-J03B0	163.8972.6	154.21*85.92	IPS	MiPi	260~1500	-20~70°C
7	800*1280	W070C31H1MI-J02B0	99.81612.6	94.2*150.72	IPS	MiPi	400~800	-20~70°C
7	800*1280	W070C40H1MI-J02B0	99.81612.0	94.2*150.72	IPS	MiPi	400~800	-20~70°C
7	1200*1920	W070P40F1MI-Z02B0	99.81161.662.18	94.5*151.2	IPS	MIPI	300~600	-20~70°C
8	1024*768	W080P40H2LI-J06B0	174.4135.62.8	162.048*121.536	IPS	LVDS	500	-20~70°C
8	800*1280	W080C30H1MI-J02B0	114.60184.102.6	107.64*172.23	IPS	MIPI	240~1500	-20~70°C
8	800*1280	W080C31H1MI-J02B0	114.60184.102.6	107.64*172.23	IPS	MIPI	240~1500	-20~70°C
8	800*1280	W080C40H1MI-J02B0	114.60184.102.65	107.64*172.23	IPS	MIPI	240~1500	-20~70°C
8	1200*1920	W080C39H1MI-J03B0	114.6184.13.5	107.64*172.22	IPS	MIPI	240~1500	-20~70°C
9	1024*600	W090P50H3RI-J03B0	210.7126.43.5	198*114.15	IPS	RGB	300~900	-20~70°C
9	1024*600	W090P50H3RI-J05B0	210.7126.45.2	198*114.15	IPS	RGB	300~900	-30~80°C
9	1024*600	W090P40H1LI-J03B0	210.7126.43.5	198*114.15	IPS	LVDS	300~900	-20~70°C
9	1024*600	W090P40H1LI-J05B0	210.7126.45.2	198*114.15	IPS	LVDS	300~900	-30~80°C
9	1024*600	W090P30H1MI-J03B0	210.7126.43.5	198*114.15	IPS	MiPi	300~900	-20~70°C
9	1024*600	W090P30H1MI-J05B0	210.7126.45.2	198*114.15	IPS	MiPi	300~900	-20~70°C
9	800*1280	W090C40H2MI-Z02B0	125.48202.902.60	119.28*190.85	IPS	MIPI	300	-20~70°C
9.3	1024*600	W090P50H5RI-J02B0	232.72962.8	222.72*83.52	IPS	RGB	300~500	-20~70°C
9.3	1024*600	W090P50H5LI-J02B0	232.72962.8	222.72*83.52	IPS	LVDS	300~500	-20~70°C
10. 1	1024*600	W101P50H1RI-J03B0	2351432.9	222.72*125.28	IPS	RGB	300~800	-20~70°C
10. 1	1024*600	W101P50H3RI-J02B0	233.7137.72.6	222.72*125.28	IPS	RGB	300~800	-20~70°C
10. 1	1024*600	W101P40H2RI-J05B0	2351435.1	222.72*125.28	IPS	RGB	300~800	-30~80°C
10. 1	1024*600	W101P50H2RI-J05B0	2351435.1	222.72*125.28	IPS	RGB	300~800	-20~70°C
10. 1	1024*600	W101P40H1RI-J03B0	2351432.9	222.72*125.28	IPS	LVDS	300~800	-20~70°C
10. 1	1024*600	W101P40H3RI-J02B0	233.7137.72.6	222.72*125.28	IPS	LVDS	300~800	-20~70°C
10. 1	1024*600	W101P40H4RI-J03B0	2351433.5	222.72*125.28	IPS	LVDS	300~800	-20~70°C
10. 1	1024*600	W101P40H1LI-J05B0	2351435.1	222.72*125.28	IPS	LVDS	300~800	-30~80°C
10. 1	1024*600	W101P30H1MI-J05B0	2351435.1	222.72*125.28	IPS	MIPI	300~800	-20~70°C
10. 1	1024*600	W101P31H1MI-J05B0	2351435.1	222.72*125.28	IPS	MIPI	300~800	-20~70°C
10. 1	1024*600	W101P40H1MI-J05B0	2351435.1	222.72*125.28	IPS	MIPI	300~800	-20~70°C
10. 1	1280*800	W101C30H1LI-J02B0	228.91148.572.6	216.96*135.6	IPS	LVDS	300~800	-20~70°C
10. 1	1280*800	W101C40H1LI-J02B0	229.46149.12.65	216.96*135.6	IPS	LVDS	300~500	-30~80°C

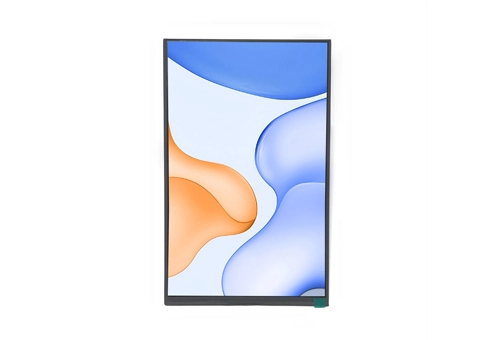

10. 1	800*1280	W101C40H3LI-J02B0	143.06228.662.6	135.36*216.58	IPS	LVDS	300~1500	-20~70°C
10. 1	800*1280	W101C40H3LI-J04B0	143.06228.664	135.36*216.58	IPS	LVDS	300~1500	-30~80°C
10. 1	800*1280	W101C31H1MI-J02B0	143.06228.662.6	135.36*216.58	IPS	MIPI	300~1500	-20~70°C

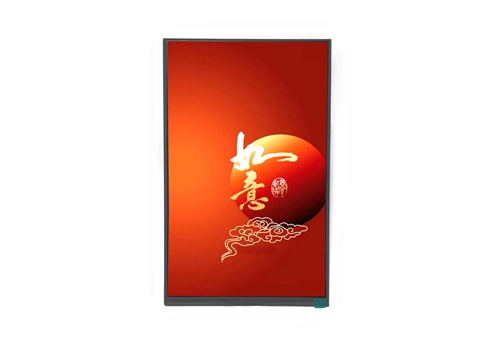

10. 1	800*1280	W101C31H2MI-J04B0	143.06228.664	135.36*216.58	IPS	MIPI	300~1500	-30~80°C
10. 1	800*1280	W101C40H1MI-J02B0	143.06228.662.6	135.36*216.58	IPS	MIPI	300~1500	-20~70°C
10. 1	800*1280	W101C40H2MI-J04B0	143.06228.664	135.36*216.58	IPS	MIPI	300~1500	-30~80°C

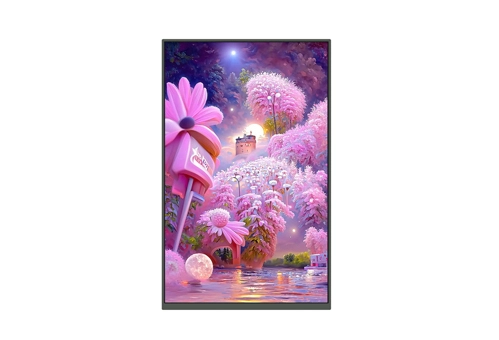

10. 1	1200*1920	W101C40G1MI-S02B0	143228.552.4	135.36*216.58	IPS	MIPI	300	-20~70°C

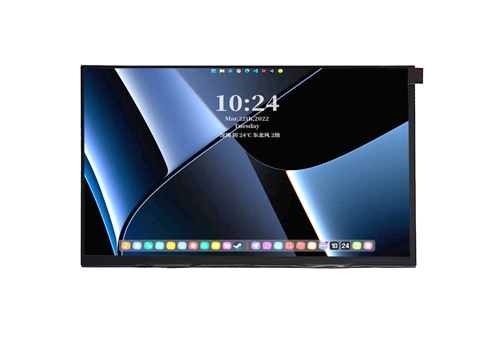

10. 1	1920*1200	W101C40G1LI-S05B0	228.51494.55	216.96*135.6	IPS	LVDS	300	-20~70°C
10.4	800*1332	W104C40F1MI-J02B0	140.92234.922.6	135.36*225.38	IPS	MIPI	360	-20~70°C
10.4	1200*2000	W104045G1MI-J03B0	153.36244.23	135.36*225.6	IPS	MIPI	320	-20~70°C
11.6	1920*1080	W116C30H1EI-J02B0	263.4157.222.55	256.32*144.18	IPS	e-DP	300	-20~70°C
12.1	800*600	W121C20E1LI-H19A0	2762099	246*184.5	IPS	LVDS	300	-30~80°C
12.1	1024*768	W121C20E2LI-H18A0	260.52048.51	245.76*184.32	IPS	LVDS	300	-20~70°C
12.1	1280*800	W121C40H2LI-Z07A0	283185.17.16	261.120*163.2	IPS	LVDS	1200	-20~70°C

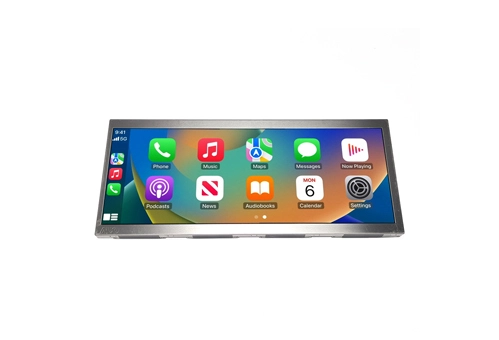

12.3	1920*720	W123C40H1LI-Z016I0	308.1×134.86×15.6	292.32×109.62	IPS	LVDS	700	-30~80°C
13.3	1920*1080	W133C30H1EI-J02B0	305.2187.92.6	293.76*165.24	IPS	e-DP	300	-20~70°C
13.3	1920*1080	W133C30H2EI-J05B0	307.6183.055.5	293.76*165.24	IPS	e-DP	300	-20~70°C

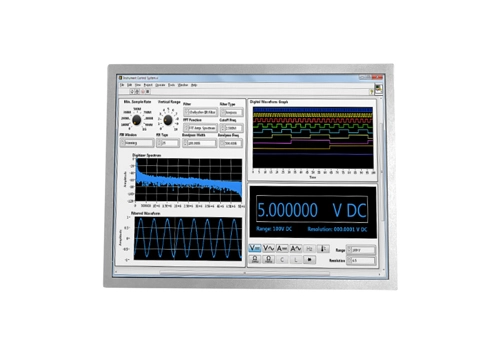

15	1024*768	W150C20E1LI-H19A0	326.5253.59.6	304.128*228.096	IPS	LVDS	350	-20~70°C
15.6	1920*1080	W156C30H1EI-J03B0	350.76204.962.9	344.16*193.59	IPS	e-DP	300	-20~70°C

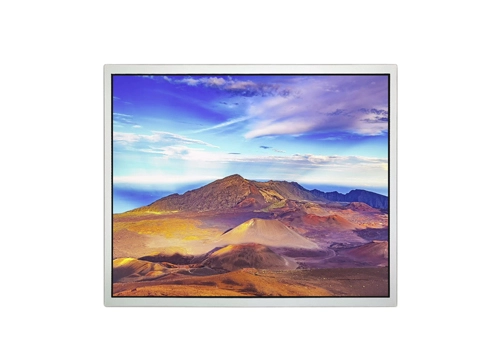

17	1280*1024	W170C30H1LI-Z010A0	358.5296.510.2	337.92*270.34	IPS	LVDS	260	-20~70°C
18.5	1920*1080	W185C30H1LI-S012B0	430.37254.611.5	408.96*230.04	IPS	LVDS	300	-20~70°C

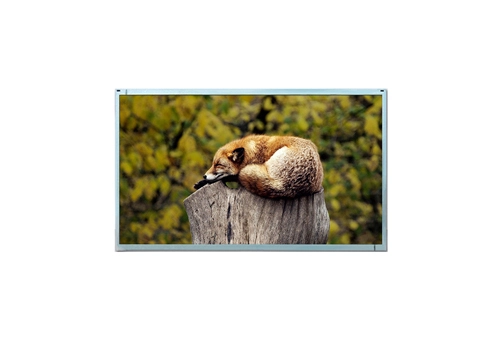

21.5	1920*1080	W215C30H1LI-S011B0	495.6292.210.57	476.64*268.11	IPS	LVDS	250	-20~70°C
23.6	1920*1080	W236C30H1LI-S09B0	543316.729	521.18*293.22	IPS	LVDS	250	-20~70°C

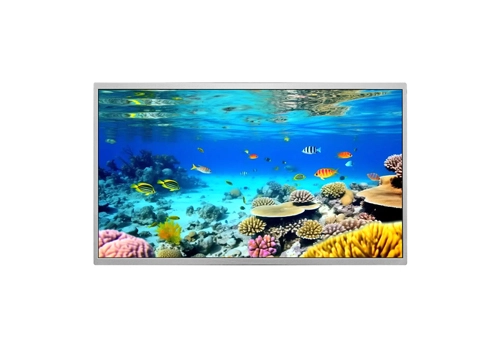

23.8	1920*1080	W238C30H2LI-S08B0	543.08316.728.3	527.04*296.46	IPS	LVDS	200-1000	-20~70°C

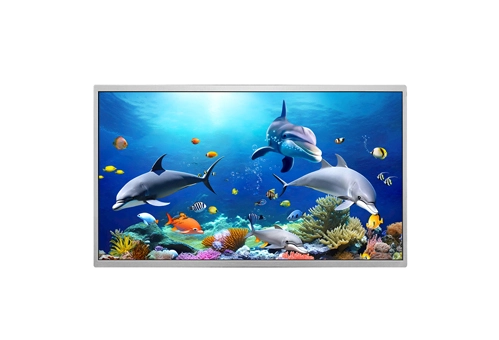

27	1920*1080	W270C30H1LI-S09B0	630368.210	597.89*336.31	IPS	LVDS	200-1500	-20~70°C
31.5	1920*1080	W315C51H1LI-S014B0	725.2422.714.4	698.4*392.85	IPS	LVDS	200-1500	-20~70°C

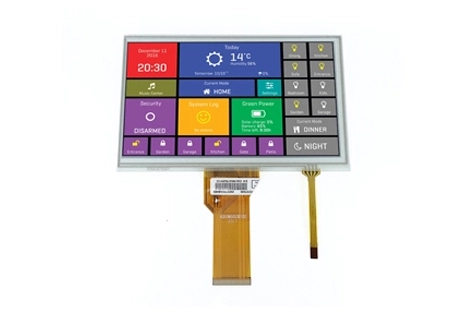

What Is the Difference Between IPS TFT LCD Displays and Oled Displays?

IPS TFT LCD displays and OLED displays differ primarily in their technology and performance characteristics. IPS TFT LCDs use a backlight that passes through liquid crystals and color filters to produce images, offering wide viewing angles and good color accuracy. However, they can suffer from lower contrast ratios and less vibrant colors compared to OLEDs. OLED displays, on the other hand, use organic compounds that emit light when an electric current is applied, allowing for true blacks and higher contrast ratios since each pixel can be turned off individually. OLEDs generally provide more vibrant colors and better energy efficiency, especially for darker images.

IPS TFT LCD Display FAQs



How does an IPS TFT LCD Display differ from a standard TFT LCD?


An IPS TFT LCD Display provides better color reproduction and wider viewing angles compared to standard TFT LCDs, which can suffer from color distortion when viewed from different angles.


Can IPS TFT LCD Displays be used in outdoor environments?


Yes, IPS TFT LCD Displays can be used outdoors, but they may require additional features like anti-glare coatings or higher brightness levels to be easily readable in direct sunlight.


Do IPS TFT LCD Displays consume more power than other types of displays?


IPS TFT LCD Displays can consume more power than standard TFT LCDs, but advancements in technology have made them more energy-efficient over time.


Are IPS TFT LCD Displays available in touch screen versions?


Yes, many IPS TFT LCD Displays are available with touch screen capabilities, making them suitable for interactive applications.


How do IPS TFT LCD Displays handle color calibration?


IPS TFT LCD Displays handle color calibration very well, making them a preferred choice for professional applications that require precise color accuracy.
