Introducing our versatile LVDS LCD Controller Boards, supporting multiple resolutions and various signal inputs including HDMI, VGA, and DVI. Designed for 7 to 32-inch screens, these boards offer sound output, touch panel options, and flexible power supply configurations, ensuring seamless integration and superior performance for your display needs.


Products

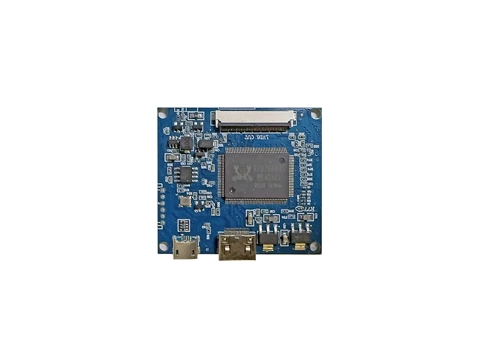

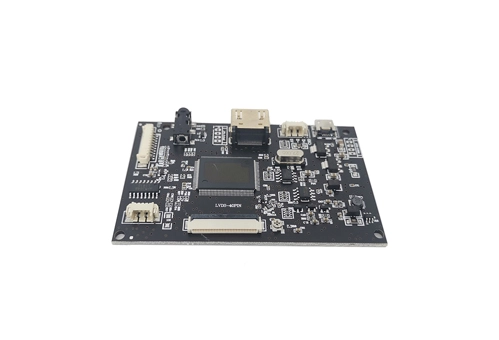

Different Types of LVDS LCD Controller Boards

Introducing our versatile LVDS LCD Controller Boards, supporting multiple resolutions and various signal inputs including HDMI, VGA, and DVI.

Types of LVDS LCD Controller Board

No.ModelParameterinterfaceTouchpower supply
1PCB800853HDMI Signal input; Supports multiple resolutions, With sound output, Supports 7 / 8 / 9 / 10.1 inch LCD screenLVDS 40pinNOUSB +5V

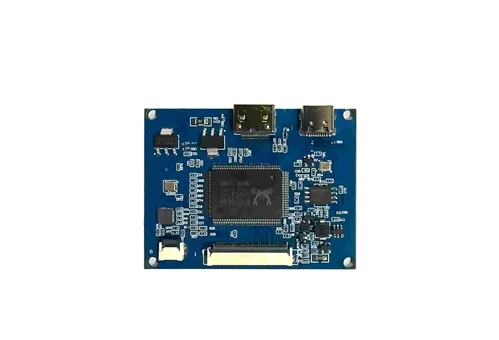

2PCB800885HDMI Type-C Signal input; Supports multiple resolutions, TOUCH PANEL, Supports 7 / 8 / 9 / 10.1 inch LCD screenLVDS 40pinNOType-C +5V
3PCB800812HDMI Signal input; Supports multiple resolutions, With sound output, Supports 7 / 8 / 9 / 10.1 inch LCD screenLVDS 40pin / RGB TTL 50pinYESUSB +5V
4PCB800815HDMI Signal input; Supports multiple resolutions, With sound output, Supports 7 / 8 / 9 / 10.1 inch LCD screenLVDS 40pinNOUSB +5V
5PCB800661 V.9HDMI Signal input; Supports multiple resolutions, With sound output, Supports 7 / 8 / 9 / 10.1 inch LCD screenLVDS 40pinNODC12V

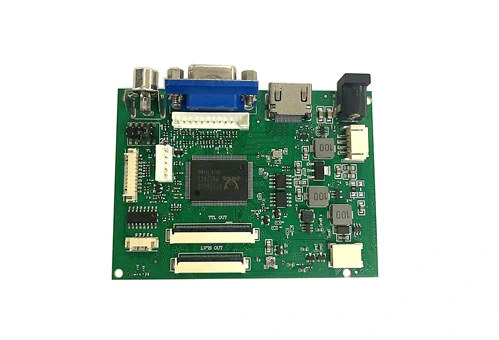

6PCB800809AV / VGA / HDMI Signal input; Supports multiple resolutions, With sound output, Supports 7 / 8 / 9 / 10.1 inch LCD screenLVDS 40pin / RGB TTL 50pinNODC 5~18V
7PCB800810Type-C / VGA / HDMI Signal input; Supports multiple resolutions, sound output, TOUCH PANEL Supports 7 / 8 / 9 / 10.1 inch LCD screenLVDS 40pin / RGB TTL 50pinYESDC12V
8PCB800823USB / HDMI Signal input; Supports multiple resolutions, With sound output, Supports 7 / 8 / 9 / 10.1 inch LCD screenLVDS 30pinNODC12V

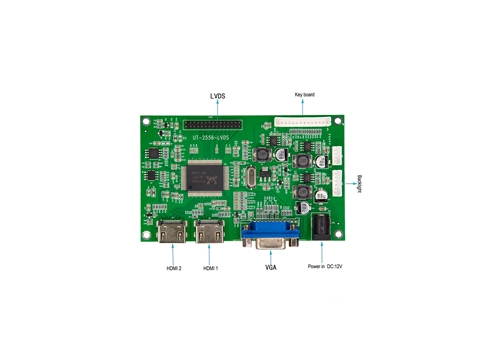

9UT-2556 V.2VGA / 2 x HDMI Signal input; Supports multiple resolutions, Supports 7~ 23 inch LCD screenLVDS 30pinNODC12V
10UT-2660 V.1AV / VGA / HDMI Signal input; Supports multiple resolutions, Supports 7~ 23.8 inch LCD screenLVDS 40pin / 30pin RGB TTL 50pinNODC12V

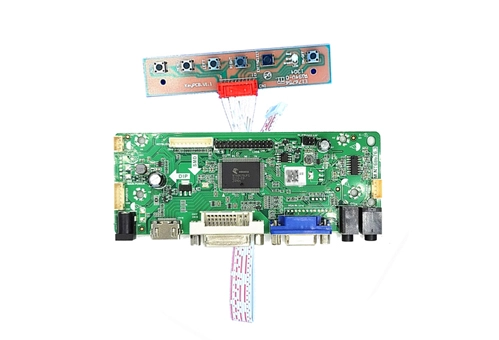

11ND-R60HVGA / DVI / HDMI Signal input; Supports multiple resolutions, sound output, Supports 7~ 23.8 inch LCD screenLVDS 30pinNODC12V
12M.NT68676.3VGA / DVI / HDMI Signal input; Supports multiple resolutions, sound output, Supports 7~ 32 inch LCD screenLVDS 30pinNODC12V
13JRY-W9KFHD-EV1VGA / HDMI Signal input; Supports multiple resolutions, sound output, Supports 7~ 32 inch LCD screenLVDS 30pinNODC12V
14WH-RTD3513-V7VGA / HDMI Signal input; Supports multiple resolutions, sound output, Supports 7~ 32 inch LCD screenLVDS 30pinNODC12V

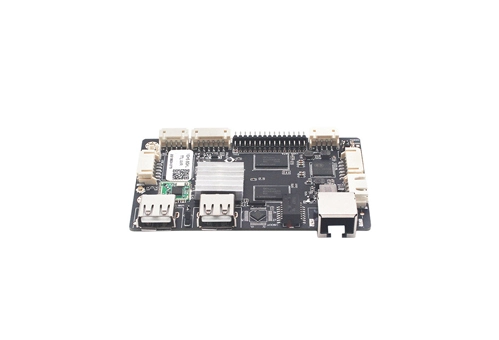

15WH-A40IAndroid 7.1.1 Quanzhi A40l ; WIFI, USB, RJ45, UART, Supports 7~ 32 inch LCD screenLVDS 30pinYESDC12V

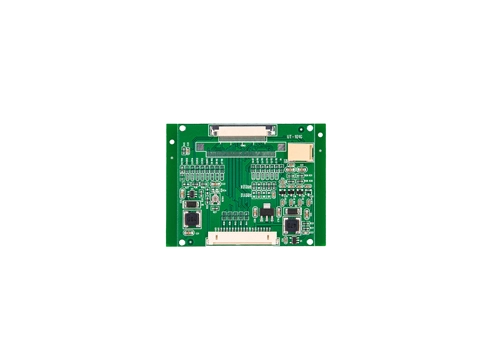

16UT-101G20pin LVDS to LVDS 40pinLVDS 40pinNO3.3 / 5V


What Is the Difference Between LVDS LCD and RGB TTL Controller Board ?

What Is the Difference Between LVDS LCD and RGB TTL Controller Board ?

LVDS (Low-Voltage Differential Signaling) LCD and RGB TTL (Transistor-Transistor Logic) controller boards are used to interface with different types of LCD panels. LVDS LCD controller boards transmit data using differential signaling, which reduces electromagnetic interference and allows for higher data rates over longer distances. This makes them ideal for high-resolution displays. In contrast, RGB TTL controller boards use single-ended signaling, which is simpler and cheaper but more susceptible to noise and limited to shorter distances and lower resolutions. Choosing between them depends on the specific requirements of your display application, such as resolution, distance, and cost.


LVDS LCD Controller Board FAQs

  • Can LVDS LCD Controller Boards support multiple displays?

    Some advanced boards can support multiple displays, but this depends on the specific model and its capabilities.


  • What types of video inputs do LVDS LCD Controller Boards support?

    Common inputs include HDMI, VGA, DVI, DisplayPort, and sometimes composite video.


  • Why is LVDS used in LCD panels?

    LVDS is used because it allows for high-speed data transfer with low power consumption and minimal electromagnetic interference, making it ideal for high-resolution display


  • What is the difference between single-channel and dual-channel LVDS?

    Single-channel LVDS supports lower resolutions and data rates, while dual-channel LVDS supports higher resolutions and data rates by using two sets of differential pairs.
