The RGB Display Module delivers vibrant colors and high brightness, making it perfect for dynamic visual applications. Compatible with various microcontrollers, it supports multiple interfaces for easy integration. Ideal for creating eye-catching displays, interactive installations, and colorful user interfaces in both educational and professional projects.


Products

RGB Display Module For Sale

The RGB Display Module provides vibrant colors and high brightness, perfect for dynamic visuals. Compatible with various microcontrollers, it excels in interactive displays and colorful user interfaces.

Types of RGB Display Module

Remark: All Models Support Capacitive or Resistive Touch  Panel.
Size  (inch)ResolutionModelViewInterfaceProduct Size  (mm)Active Area   (mm)AudioTouch panelPowerOP(℃)
4.3800*480MRG4301TNRGB105.41*86.41*1095.04*53.86NCNC0.08A*5V-20~60°C
4.3800*480MRG4311TNRGB105.41*86.41*1095.04*53.86NCCTP0.08A*5V-20~60°C
5800*480MRG5101TNRGB121.11*95.24*1095.04*53.86NCNCMicroUSB-20~60°C
5800*480MRG5111TNRGB121.11*95.24*1095.04*53.86NCCTPMicroUSB-20~60°C
7800*480MRG7101TNRGB164.90*124.27*10154.08 * 85.92NCNCMicroUSB-20~60°C
7800*480MRG7111TNRGB164.90*124.27*10154.08 * 85.92NCCTPMicroUSB-20~60°C
71024*600MRG7102IPSRGB164.90*124.27*10154.08*85.92NCNCMicroUSB-20~60°C
71024*600MRG7122IPSRGB164.90*124.27*10154.08*85.92NCCTPMicroUSB-20~60°C

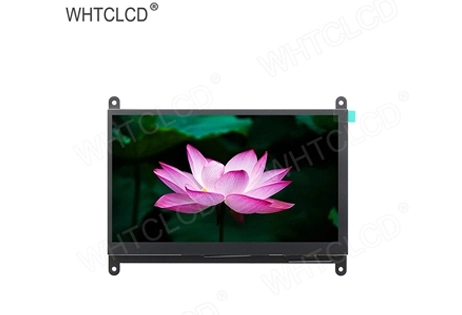

What Is RGB Display Module ?

What Is RGB Display Module ?

The product is a RGB TTL interface TFT LCD display module. The supports the screen switching of 480x272, 800x480, 1024x600, and supports up to 24bit rgb888 16.7M colordisplay. There is no controller inside the module, so external controller is needed. Forexample, ssd1963 driver lC can be used as MCU LCD, and MCU with RGB controller(such as stm32f429,stm32f767, stm32h743, etc.) can be used as RGB LCD. The modulealso supports the switching function of capacitive touch screen and resistance touchscreen.

RGB Display Modules FAQs

  • How does an RGB Display Module work?

    The product is an RGB TTL interface TFT LCD display module. It supports up to 24-bit rgb888 16.7M color display. Since there is no controller inside the module, an external controller is required. For instance, the ssd1963 driver IC can be used for MCU LCD, and MCUs with RGB controllers (such as stm32f429, stm32f767, stm32h743, etc.) can be used for RGB LCD Display Module. Additionally, the module also supports the switching function between capacitive touch screen and resistive touch screen.


  • What are the common applications of RGB Display Modules?

    They are widely used in human-machine interface display operations for the motherboards of various small systems, including industrial equipment, consumer electronics, household appliances, medical beauty devices, and other industrial fields.


  • What is the resolution of an RGB Display Module?

    The resolution of RGB display modules varies depending on their size, and generally supports resolutions such as 480x272, 800x480, and 1024x600.

  • Can RGB Display Modules be used outdoors?

    Yes, the RGB display module has high brightness display level and can effectively resist direct sunlight. This module has a wide operating temperature range. In addition, to meet the needs of outdoor use, a specially designed casing with wind and rain resistance is required.
