The RGB TTL LCD Controller Boards are versatile solutions for various display needs, supporting multiple resolutions and screen sizes. They offer HDMI, VGA, AV, and Type-C signal inputs, with options for sound output and touch panel integration. Compatible with LCD screens ranging from 3.5 to 15 inches, these boards are powered by DC12V, USB +5V, or Type-C +5V, ensuring flexibility and ease of use for diverse applications.


Products

Different Types of RGB TTL LCD Controller Boards

The RGB TTL LCD Controller Boards are versatile solutions for various display needs, supporting multiple resolutions and screen sizes.

Types of RGB TTL LCD Controller Board

No.ModelParameterinterfaceTouchpower supply
1PCB800099-V.9HDMI / VGA / AV Signal input; Supports multiple resolutions, Supports 5 / 7 / 8 / 9 / 10.1 / 10.4 / 15 inch LCD screenRGB TTL 50pin / LVDS 30pinNODC12V
2PCB800168HDMI Signal input; Supports multiple resolutions, Supports 5 / 7 / 8 / 9 / 10.1 inch LCD screenRGB TTL 50pinNOUSB +5V
3PCB800827HDMI USB Signal input; Supports multiple resolutions, With sound output, Supports 5 / 7 / 8 / 9 / 10.1 inch LCD screenRGB TTL 50pinNODC12V
4PCB800850HDMI Signal input, Supports 3.5 inch LCD screenRGB TTL 54pinNOUSB +5V
5PCB800851HDMI Signal input; Supports multiple resolutions, Supports 4.3 / 5 / 7 inch LCD screenRGB TTL 40pinNOUSB +5V
6PCB800852HDMI Signal input; Supports multiple resolutions, Supports 5 / 7 / 8 / 9 / 10.1 inch LCD screenRGB TTL 50pinNOUSB +5V
7PCB800872HDMI Type-C Signal input; Supports multiple resolutions, sound output, TOUCH PANEL, Supports 7 / 8 / 9 / 10.1 inch LCD screenRGB TTL 50pinNOType-C +5V
8PCB800882HDMI Type-C Signal input; Supports multiple resolutions, TOUCH PANEL, Supports 4.3 / 5 / 7 inch LCD screenRGB TTL 40pinNOType-C +5V
9PCB800883HDMI Type-C Signal input; Supports multiple resolutions, TOUCH PANEL, Supports 7 / 8 / 9 / 10.1 inch LCD screenRGB TTL 50pinNOType-C +5V
10SD070-706-V.3AV(CVBS) Signal input; Supports multiple resolutions, Supports 4.3 / 5 / 7 inch LCD screenRGB TTL 40pinNODC12V
11UT-MD07080 V.3HDMI / VGA / AV Signal input; Supports multiple resolutions, Supports 5 / 7 / 8 / 9 / 10.1 / 10.2inch LCD screenRGB TTL 50pin / 2 x 30pinNODC12V
12UT-706-035AV(CVBS) Signal input; Supports 3.5 inch LCD screenRGB TTL 54pinNODC12V
13UT-2660HDMI / VGA / AV Signal input; Supports multiple resolutions, Supports 5 / 7 / 8 / 9 / 10.1 inch LCD screenRGB TTL 50pin / LVDS 40pin / LVDS 30pinNODC12V

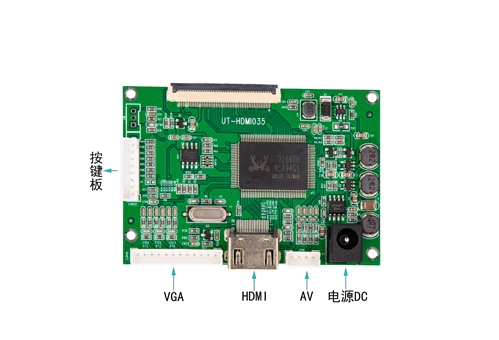

14UT-HDMI035AV / VGA / HDMI Signal input; Supports 3.5 inch LCD screenRGB TTL 54pinNODC12V
15UT-MD043050 V.2AV / VGA Signal input; Supports multiple resolutions, Supports 4.3 / 5 / 7 inch LCD screenRGB TTL 40pinNODC12V
16UT-MD070201 V.1AV / VGA Signal input; Supports multiple resolutions, Supports 6.2 / 7 / 8 /8.4 / 9 / 10.4 inch LCD screenRGB TTL 60pinNODC12V
17UT-TCON-035LVDS to RGB 54pinRGB TTL 54pinNO3.3 / 5V
18UT-LVDS-5LVDS to RGB 40pinRGB TTL 40pinNO3.3 / 5V
19UT-TCON-N1.1LVDS to RGB 50pinRGB TTL 50pinNO3.3 / 5V


How Does an RGB TTL LCD Controller Board Work?

How Does an RGB TTL LCD Controller Board Work?

An RGB TTL LCD Controller Board is a crucial component that interfaces between a digital video source and an LCD panel. It converts digital RGB signals from devices like computers or media players into TTL (Transistor-Transistor Logic) signals that the LCD can interpret. The board manages timing, resolution, and color depth to ensure accurate display output. It typically includes connectors for power, video input, and the LCD panel, along with control buttons or interfaces for adjusting display settings. By handling these conversions and adjustments, the controller board enables seamless and high-quality visual output on the LCD screen.


RGB TTL LCD Controller Board FAQs

  • What are the common applications of RGB TTL LCD Controller Boards?

    They are used in industrial displays, medical equipment, automotive displays, and other applications where specific LCD panels are required.


  • What types of displays are compatible with RGB TTL LCD Controller Boards?

    These boards are typically compatible with LCD panels that accept TTL input signals, commonly found in older or industrial displays.


  • Can I use an RGB TTL LCD Controller Board with any LCD panel?

    No, the LCD panel must support TTL input and match the resolution and timing specifications of the controller board.


  • Can I use an RGB TTL LCD Controller Board with a Raspberry Pi?

    Yes, you can use it with a Raspberry Pi, but you may need an adapter or additional configuration to match the signal levels and timings.
