The SPI LCD Display Module provides rapid, high-quality visuals with outstanding color and clarity. It easily integrates with various microcontrollers through the SPI interface, making it ideal for responsive and detailed applications. Perfect for projects needing quick refresh rates, such as gaming interfaces, real-time data monitoring, and interactive displays.


Products

SPI Disaply LCD Module For Sale

The SPI LCD Display Module offers fast, high-quality visuals, ideal for responsive and detailed Arduino and microcontroller projects.

Types of SPI Disaply LCD Module

Remark: All Models Support Capacitive or Resistive Touch  Panel.
Size  (inch)ResolutionModelViewInterfaceProduct Size  (mm)Active Area   (mm)AudioTouch panelPowerOP(℃)

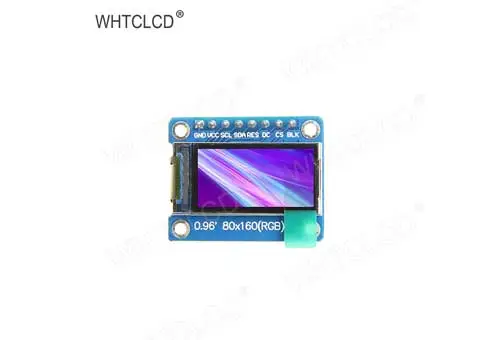

0.9680*160MSP0961IPSSPI30.00*24.04 *610.80x21.70NCNC / RTP5V/3.3V-20~60°C

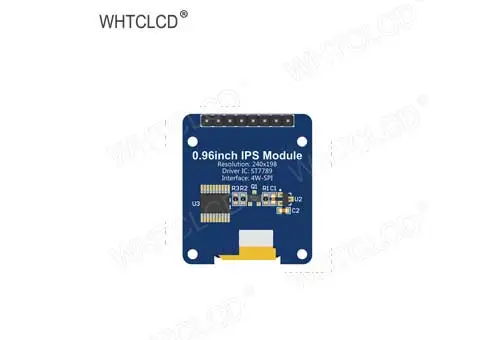

0.96240*198MSP0964IPSSPI28.4*33*624.408*20.137NCNC / RTP5V/3.3V-20~60°C
0.96240*198MSP0962IPSSPI29.73*28.14*624.408*20.137NCNC / RTP5V/3.3V-20~60°C

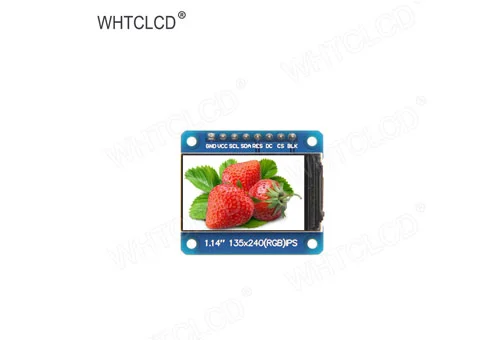

1.14135*240MSP1141IPSSPI31.4*28*614.86*24.91NCNC / RTP5V/3.3V-20~60°C

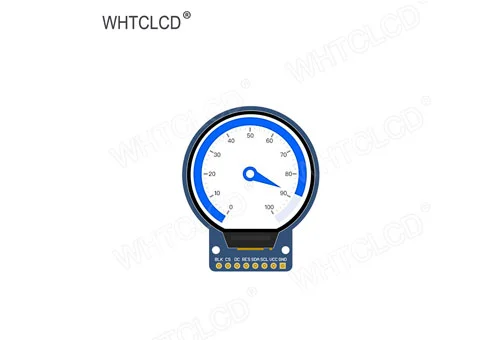

1.28240*240MSP1281IPSSPI38.03*45.80*632.40*32.40NCNC / RTP5V/3.3V-20~60°C
1.3240*240MSP1308IPSSPI39.22*27.78*623.40*23.40NCNC / RTP5V/3.3V-20~60°C
1.44128*128MSP1443TNSPI29.7*43.36*626.2*27.2NCNC5V/3.3V-20~60°C
1.44128*128MAR1441TNSPI29.7*43.36*626.2*27.2NCNC5V/3.3V-20~60°C
1.54240*240MSP1541IPSSPI32.00*43.72*627.72*27.72NCNC / RTP5V/3.3V-20~60°C
1.6130*130MSP1601TNSPI35.40*53.82*1.628.86*28.86NCNC5V/3.3V-20~60°C

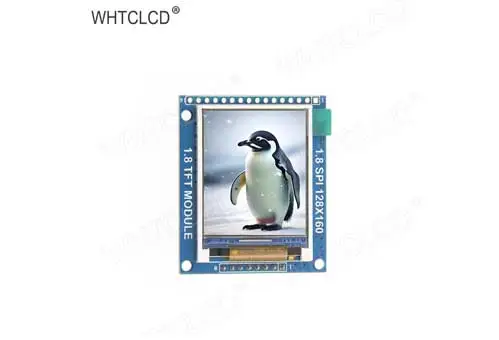

1.8128*160MSP1803TNSPI34.5*58.0*628.03*35.04NCNC5V/3.3V-20~60°C
1.8128*160MSP1804TNSPI44.96*53.47 *628.03*35.04NCNC5V/3.3V-20~60°C
1.8128*160MSP1805TNSPI59.79*42.01*628.03*35.04NCNC5V/3.3V-20~60°C
1.8128*160MAR1801TNSPI38.30*62.48*628.03*35.04NCNC5V/3.3V-20~60°C
2176*220MA R2001TNSPI38.30*62.48*631.68*39.60NCNC5V/3.3V-20~60°C
2.2176*220MA R2201TNSPI42.46*67.20*634.85*43.56NCNC5V/3.3V-20~60°C
2.2240*320MSP2202TNSPI40.10*67.20*633.84*45.12NCNC5V/3.3V-20~60°C
2.4240*320MSP2402TNSPI77.18*42.72*636.72*48.96NCNC / RTP5V/3.3V-20~60°C
2.8240*320MSP2807TNSPI50.0*86.0*643.2*57.6NCNC / RTP5V/3.3V-20~60°C
2.8240*320MSP2833IPSSPI50.0*86.0*12.7843.20*57.60NCCTP5V/3.3V-20~60°C
3.2240*320MSP3208TNSPI55.04*89.3*648.6*64.8NCNC / RTP5V/3.3V-20~60°C
3.2240*320MSP3222IPSSPI55.04*90.5*12.8848.60*64.80NCCTP5V/3.3V-20~60°C
3.5320*480MSP3520TNSPI56.34*98*648.96*73.44NCNC / RTP5V/3.3V-20~60°C
3.5320*480MSP3526IPSSPI55.5*98.0*12.9848.96*73.44NCCTP5V/3.3V-20~60°C
4320*480MSP4022TNSPI61.74*108.04*655.68*83.52NCNC / RTP5V/3.3V-20~60°C
4320*480MSP4030TNSPI60.88*108.0*14.8055.68*83.52NCCTP5V/3.3V-20~60°C

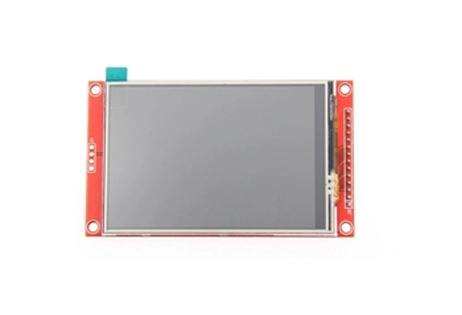

What Is the Function of an SPI Display LCD Module?

What Is the Function of an SPI Display LCD Module?

An SPI (Serial Peripheral Interface) display LCD module is used to render visual information on electronic devices. It functions by receiving data from a microcontroller or microprocessor through the SPI communication protocol, which allows for high-speed data transfer with minimal wiring. The module interprets the received data to control the pixels on the LCD screen, displaying text, images, or graphical user interfaces. SPI display modules are commonly used in applications like embedded systems, IoT devices, and portable electronics due to their efficient communication and low power consumption.

SPI Display LCD Modules FAQs

  • Can I use an SPI Display LCD Module with Arduino?

    Yes, many SPI Display LCD Modules are compatible with Arduino and can be easily interfaced using libraries like Adafruit GFX and Adafruit ST7735.


  • What is the typical voltage requirement for SPI Display LCD Modules?

    Most SPI Display LCD Modules operate at 3.3V or 5V, but it's important to check the specific module's datasheet.


  • What is the role of the CS (Chip Select) pin in SPI communication?

    The CS pin is used to select the SPI device for communication. It is active low, meaning the device is selected when the CS pin is low.

  • Can I use multiple SPI Display LCD Modules on the same SPI bus?

    Yes, you can use multiple SPI devices on the same bus by assigning different CS pins for each device.
