Square TFT LCD displays, available in 2.51", 3.4", and 4.0" sizes, offer high resolution, vibrant colors, and wide viewing angles. Ideal for industrial controls, medical devices, and consumer electronics, these displays provide robust performance and optional touch functionality, ensuring a versatile and engaging user experience.


Products

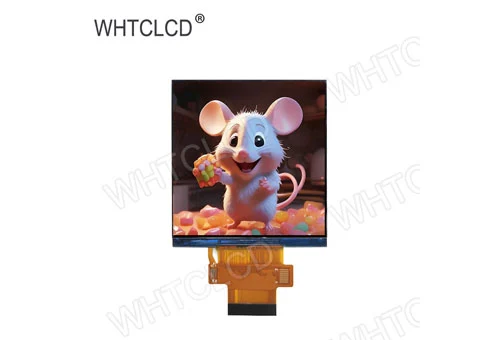

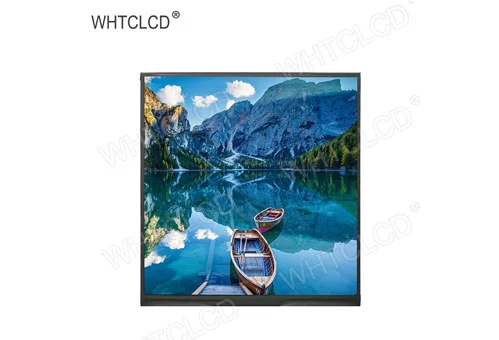

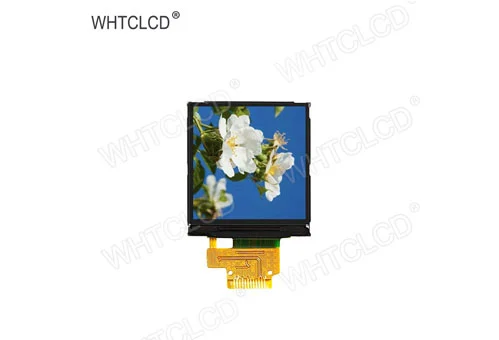

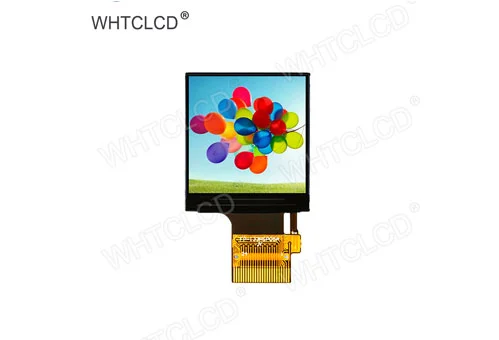

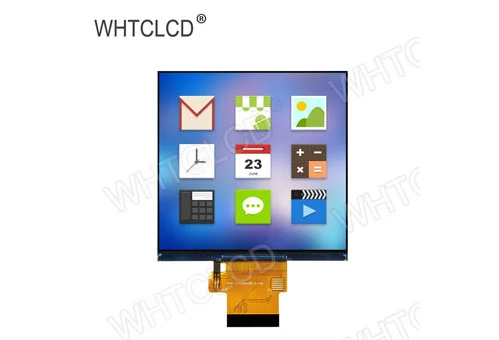

Square TFT LCD Display For Sale

Square TFT LCD displays, available in 2.51", 3.4", and 4.0" sizes, provide high resolution, vibrant colors, and wide viewing angles, making them perfect for industrial, medical, and consumer electronics applications.

Types of Square TFT LCD Display

Remark: All Models Support Capacitive or Resistive Touch  Panel.
Size  (inch)ResolutionModelLCM Dimension    (mm)Active Area   (mm)ViewInterfaceBrightness    (nits)OP(℃)
1.3240*240W0130S24S1CI (Square)26. 17*29.22*1.5323.40*23.40IPSMCU300-20~70°C
1.3240*240W0130S13S2SI (Square)26. 17*29.22*1.5323.40*23.40IPSSPI300-20~70°C
1.44128*128W0144S14S1SN-A02B029.5*36.5*2.2525.5*26.5TNSPI300-20~70°C
1.5240*240W0150S10S2CI(Square)31.52*33.72*1.9427.72*27.72IPSMCU300-20~70°C
1.54240*240W0154S22S1CI (Square)31.50*35.0*1.9127.72*27.72IPSMCU300-20~70°C
1.54320*320W0154S16S1MI (Square)31.52*33.72*1.927.744*27.744IPSMIPI300-20~70°C
2.51240*240W0251S15S1SN-X02B0(Square)50.58*56.18*2.445.07*45.07TNSPI300-20~70°C
3.4480*480W034S40S1SI (Square)65.72*69.64*2.4560.48*60.48IPSRGB300-20~70°C
3.4480*480W034S20S3MI(Square)65.72*69.64*2.4560.48*60.48IPSMIPI300-20~70°C
3.95480*480W0395S40S1RI-H02B0 (Square)74.83*78.68*2.1571.856*70.176IPSRGB300-20~70°C
3.95480*480W0395S40S1MI-H02B0 (Square)74.83*78.68*2.1571.856*70.176IPSMIPI300-20~70°C
3.95720*720W0395S40H1RI-H02B0(Square)74.83*78.98*2. 1471.93*71.93IPSRGB300-20~70°C
3.95720*720W0395S30H1MI-H02B0(Square)74.83*78.98*2. 1471.93*71.93IPSMIPI300-20~70°C
7.6800*800W076S30H1MI-H05B0 MI (Square)142.56*148.24*5.1135.36*135.36IPSMIPI1000-20~70°C

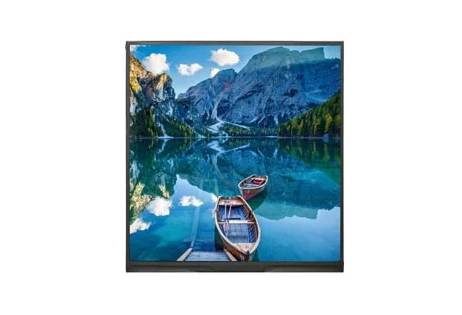

What Is the Resolution of a Typical Square TFT LCD Display?

What Is the Resolution of a Typical Square TFT LCD Display?

A typical square TFT (Thin-Film Transistor) LCD display often features a resolution of 1280x1280 pixels. These displays are designed to provide high-quality visuals with sharp and clear images, making them suitable for various applications such as industrial controls, medical devices, and specialized consumer electronics. The square aspect ratio is particularly useful in scenarios where equal dimensions are required for both width and height, ensuring a balanced and symmetrical display area. Additionally, TFT technology enhances the display’s performance by offering better color accuracy, faster response times, and improved viewing angles compared to traditional LCDs.


TFT LCD Display FAQs

  • What are the advantages of using a Square TFT LCD Display?

    Advantages include a balanced aspect ratio, high resolution, vibrant colors, and wide viewing angles.

  • How do you interface a Square TFT LCD Display with a microcontroller?

    Square TFT LCD Displays typically use interfaces like SPI, I2C, or parallel interfaces to connect with microcontrollers.

  • Can Square TFT LCD Displays show full-color images?

    Yes, most Square TFT LCD Displays support full-color images with 16.7 million colors (24-bit color depth).


  • What is the response time of a Square TFT LCD Display?

    Response times typically range from 10ms to 30ms.


  • What is the contrast ratio of a Square TFT LCD Display?

    Contrast ratios typically range from 500:1 to 1000:1.
