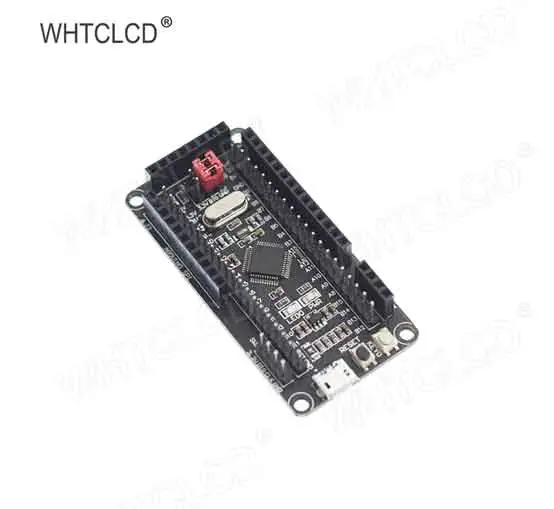

STM32 Development Board

Name: STM32 Development Board
Brand: Shenzhen Wu He Tian Cheng Technology Co., Ltd.

CPU: STM32F103C8T6, main frequency: 72MHz, internal FLASH: 64KB, internal SRAM: 20KB. Small and delicate appearance, convenient for various DIY projects. Support SWD and serial download, easy to debug. Support SPI interface and IIC interface display module direct insertion. Extended GPIO port for easy connection to various peripherals. Rich development resources, easy to learn, easy to get started.

Products

Parameters of STM32 Development Board

Remark: All Models Support Capacitive or Resistive Touch Panel.
Type	LCD Interface	Model	FLASH	SRAM	Main chip	function	Touch panel	Power	OP(℃)
1	SPI	STM3202	64K	20KB	STM32F103C8T6	GPIO; SWD; USB; IIC	NC / RTP	USB 5V	-20~60°C

transparent lcd display arduino

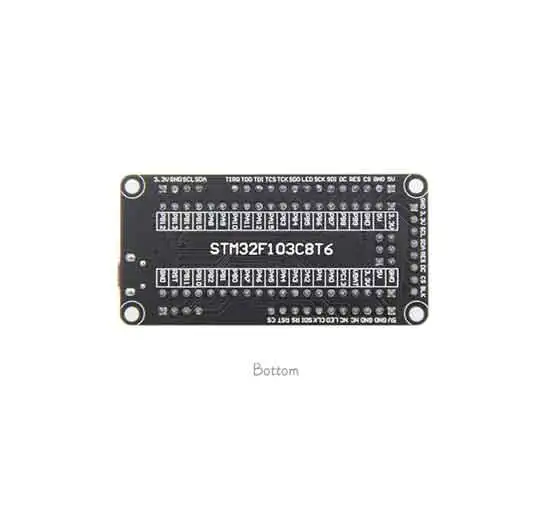

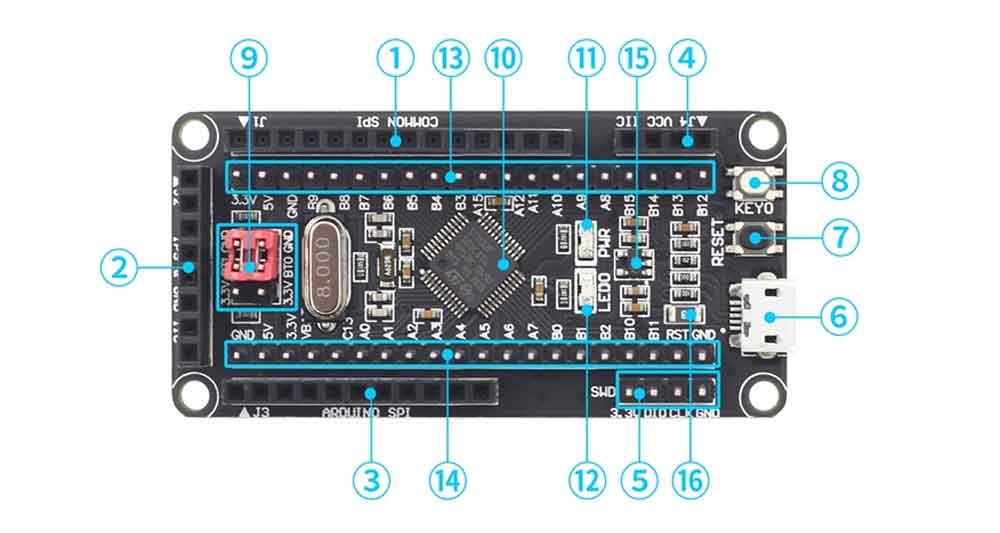

Serial number	Name	Description

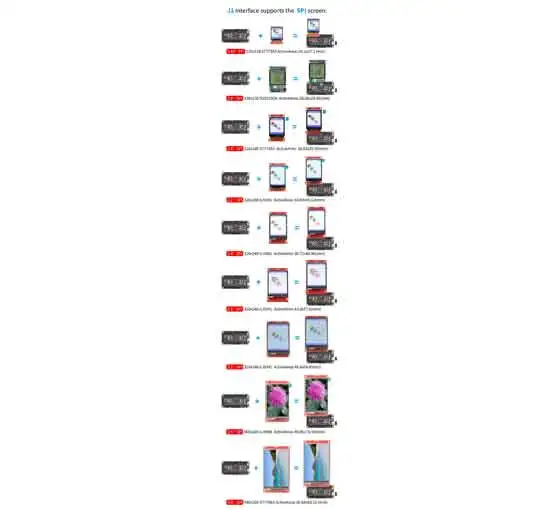

①	J1	Connect to the Common-SPI display module

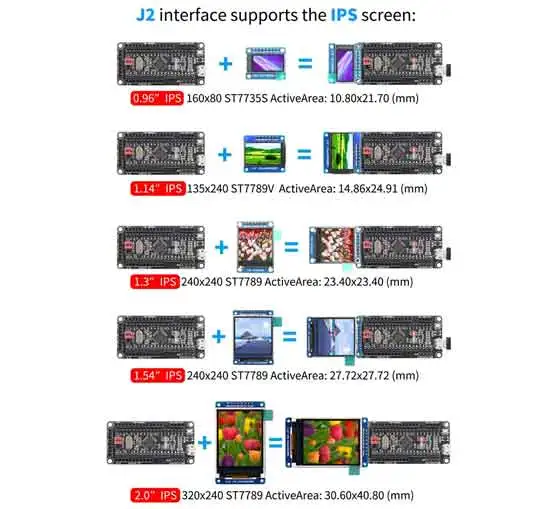

②	J2	Connect to the Common-SPI/IPS display module

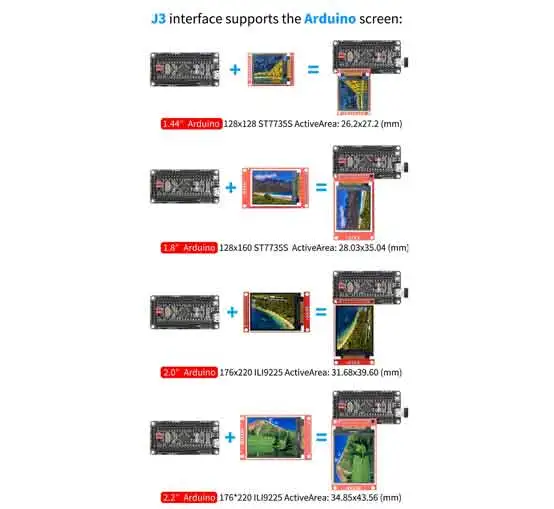

③	J3	Connect to the Arduino-SPI display module

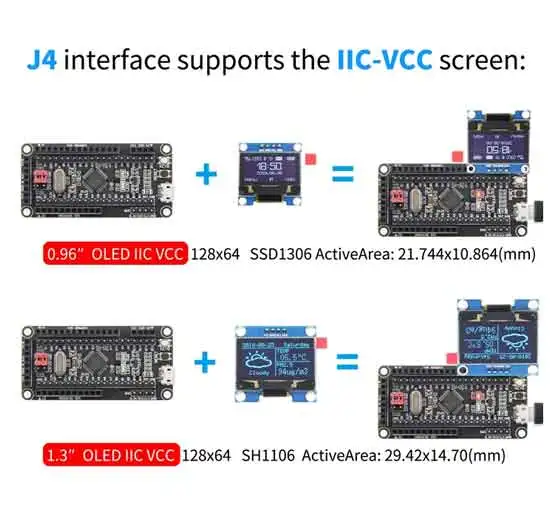

④	J4	Connect to the IIC-VCC display module
⑤	SWD	For SWD download and emulation
⑥	USB interface	Used for USB communication and power supply
⑦	Reset button	Reset development board
⑧	KEY0	For standby wake up or program button function design
⑨	BT0/BT1	Used to select the startup mode after the development board is reset
⑩	STM32F103C8T6	Main chip, main frequency: 72MHz, internal FLASH: 64KB, internal SRAM: 20KB, support RTC, interrupt, PWM, DMA and other functions
⑪	Power light	Red LED light is used to indicate whether the development board is normally powered
⑫	LED0	Blue LED light, used to indicate the running status of the program and DIY program lighting effect design
⑬，⑭	IO expand	It is used to connect various peripherals to facilitate project development
⑮	Power stabilized IC	5V in，3.3V out
⑯	Self restoring fuse	Ensure the safety of the circuit in case of short circuit or other fault

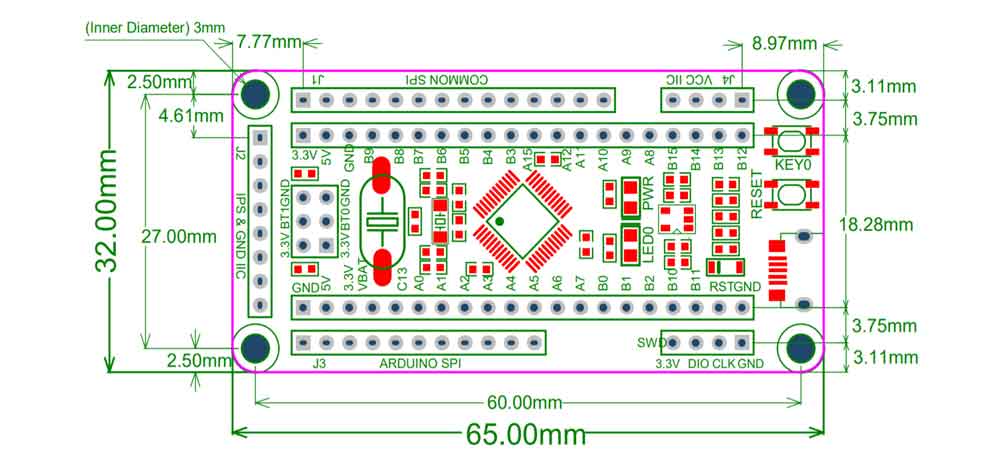

Product Size of STM32 Development Board
