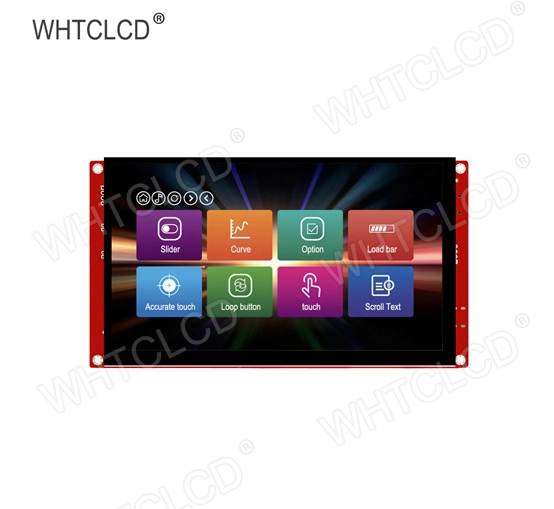

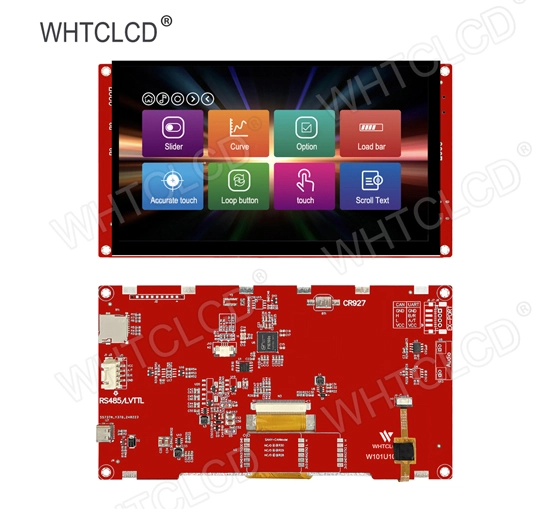

W070U8048-C 7.0 Inch Capacitive Touch Uart LCD Display

Name: W070U8048-C 7.0 Inch Capacitive Touch Uart LCD Display
Brand: Shenzhen Wu He Tian Cheng Technology Co., Ltd.

The W070U series intelligent display and control terminal is an intelligent display and control device with multiple modules and free combinations independently developed and designed by our company. This intelligent display and control terminal itself has a set of RS485 serial communication, and can also achieve BLE communication, WIFI communication (Station + SoftAP), CAN communication, IO control module (freely configured as input, interruption, output, PWM, capture, ADC acquisition), extended RS485/RS232, isolated communication, etc. through the free combination of modules. It can be widely applied in the fields of Internet of Things (IoT), mobile devices, smart home, industrial control, small instrument equipment, etc.

Products

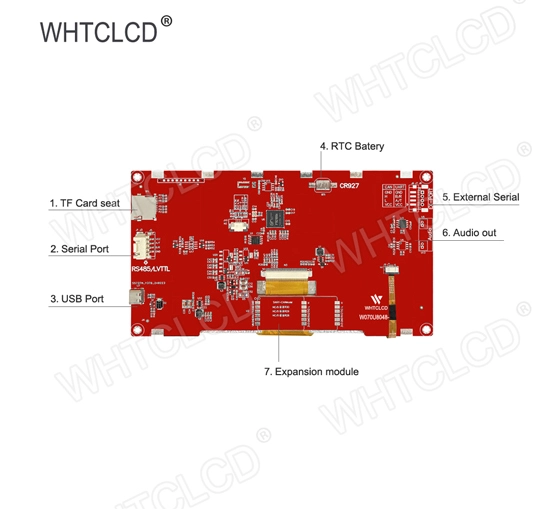

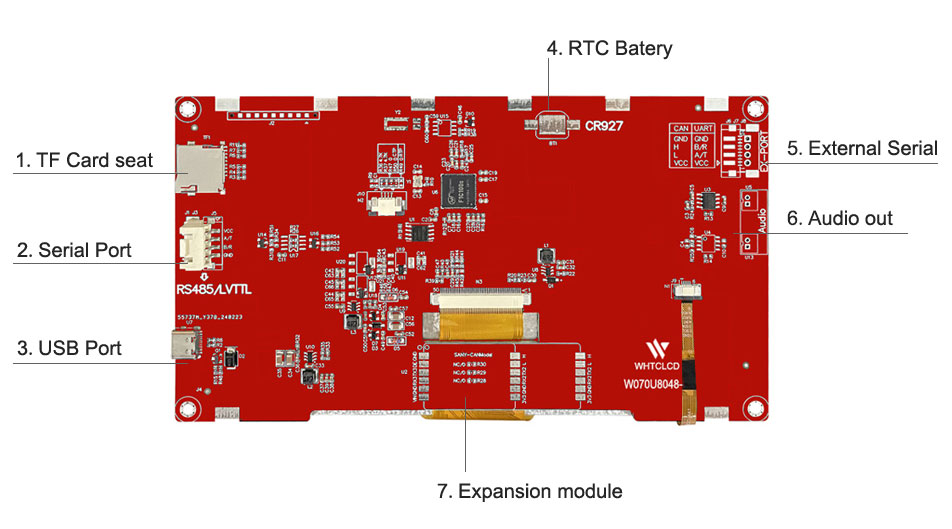

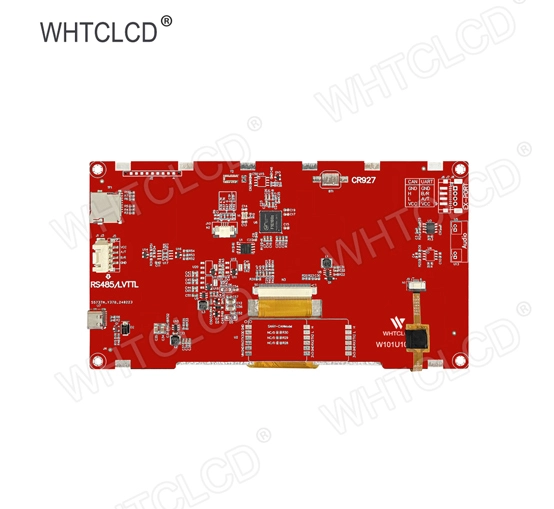

Interface Diagram of 7.0 Inch Capacitive Touch Uart LCD Display

tft display 0.96

Number
1	TF Card seat
2	XH2.54-4P: 1. VCC 2. TX/485-A 3. RX/485-B 4. GND
	FPC 1.0-10P: 1-3 pin: VCC; 4 pin: NC; 5 pin: TX485/A; 6 pin: TX485/B; 7 pin: NC; 8-10 pin: GND

3	USB Seat
4	RTC Battery, 927 specifications
5	Expansion module interface, with the same specifications as 2
6	Audio output interface, specification: PH2.0 - 2 pin
7	Expansion module, with options such as TTL, RS485, RS232, isolated CAN, Bluetooth, Wi-Fi, and others. Customization is supported.

Display Specifications of 7.0 Inch Capacitive Touch Uart LCD Display

Product type	Data
Resolution	800x480 pixel	1024×600 pixel
Viewing Angle	TN	IPS
Display Color	262K/16.7M, 24bit, RGB888
Refresh rate	30-50F/S
Size	7 inch
Layout size	182mm(L)×101mm(W)×11mm(H)
Visual Area (V.A.)	157mm(L)×89.5mm(W)
Active Area (A.A.)	154.08mm(L)×85.92mm(W)
Touchscreen	4 Line resistance type \ 6 Line capacitive type（IICInterface）
Touches	> 1 million
Backlight source	LED
Backlight lifetime (Average)	>30,000 Hours
Brightness	300nits
Net weight	220g
Display Direction	0, 90, 270, 180 Adjustable
Storage space	8Mbyte/64bit
SD Card file system	FAT32 format, support maximum 32G Micro SD Card

Electronic Characteristics of 7.0 Inch Capacitive Touch Uart LCD Display

Parameter	Test conditions
Operating Voltage		5	12	38	V
Operating Current	Backlight is the brightest	~	200	~	MA
	Backlight off	~	60	~	MA
With speaker current	-	-	660	~	MA
The recommended power supply is as follows: A 5V/1A DC stabilized power supply is suitable for the device without a speaker; a 5V 2A or 12V 1A DC stabilized power supply is appropriate for the device with a speaker.
Postscript: When a laptop power supply is utilized with a speaker, the device might fail to start or function properly.

Working Environment & Reliability Parameter of 7.0 Inch Capacitive Touch Uart LCD Display

Parameter	Test conditions
working temperature	Humidity 60%	-30	25	70	°C
Storage temperature	-	-40	25	85	°C
Working humidity	Ambient temperature: 25°C	10%	60%	90%	RH

Interfaces Performance of 7.0 Inch Capacitive Touch Uart LCD Display

Parameter	Test conditions	Min	Typ	Max	Company
Serial Port Baudrate	Standard	2400	115200	921600	bps
Output High Voltage (TXD)	IOH=1mA	3	3.3	5	V
Output Low Voltage(TXD)	IOL=-1mA	~	0.1	0.2	V
Input High Voltage(RXD)	~	~	3	5	V
Input Low Voltage(RXD)	~	-0.7	0	1.3	V
Serial Port Mode	3.3V/5.0V TTL
Communication methods	8, 1, None
CAN Interface Baud Rate	-	20K	250K	1M	bps
CAN methods	2.0 Ver
Serial Port 1	4P 2.54MM DIP /10P 1.0MM FPC Socket
SD card	Supports FAT32 format file read and write, with a maximum supported capacity of 32GB and storage space for video and audio. In addition, customizable configurations are possible.				Byte
RTC	The device supports RTC. The battery utilized is a 927 button lithium battery.
USB	Utilized in engineering incineration and product commissioning. The download velocity of the USB flash drive amounts to 200K/S.				Byte
Extended interface	Expansion module interface, with the same specifications as 2
	SMD Port
	Expansion module, with options such as TTL, RS485, RS232, isolated CAN, Bluetooth, Wi-Fi, and others. Customization is supported.

Memory Features of 7.0 Inch Capacitive Touch Uart LCD Display

Parameter	Test conditions	Min	Typ	Max	Company
Flash	Store fonts, audio and images	4M	8M	32M	Byte
Expand storage	TF card FAT32 Format, Storing audio, video, and user files	512M	4G	32G	Byte


Running memory	64M				Byte
Instruction Buffer	Instruction Buffer	1K			Byte

Audio and Video Characteristics (Standard) of 7.0 Inch Capacitive Touch Uart LCD Display

Number		Explain
Video Format		MP4 H.264
refresh rate		50 fps/s
Video storage		TF card (recommended), False (not recommended, can play boot screen video)
Audio Format		MP3, WAV（16bit）
Audio output		2CH MP3, stereo
Audio storage		FLASH memory (prompt sound, background music, etc.), TF card (large amount of music)
Default amplifier		Two power amplifiers, each with a power of 3W, with high fidelity output

Model Selection of 7.0 Inch Capacitive Touch Uart LCD Display

Model	LVTTL	RS485	MODBUS	R-Touch	C-Touch	Video	Audio	QR code
W070U8048-C	√	×	×	×	√	√	√	√

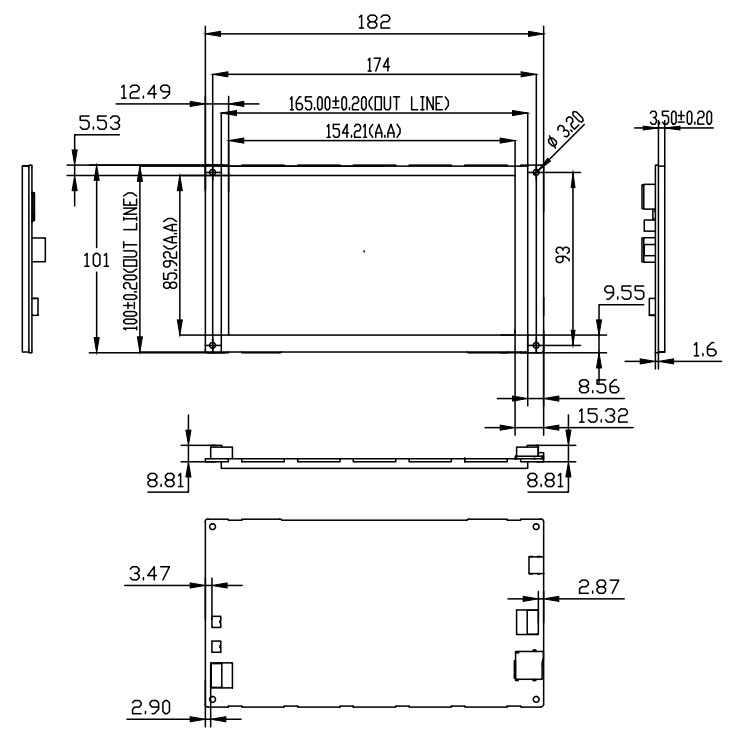

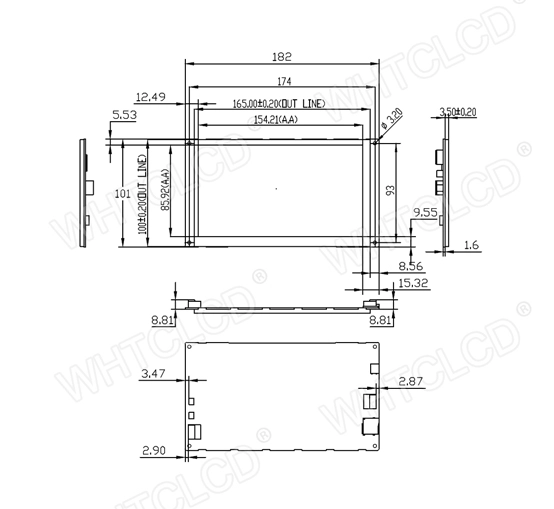

Structural Size of 7.0 Inch Capacitive Touch Uart LCD Display

tft 7 inch display
