What Are The Differences Between IPS Display And TFT Display

While IPS (In-Plane Switching) and TFT (Thin-Film Transistor) displays are often positioned as competing technologies in marketing campaigns, they are fundamentally interconnected. IPS is an advanced iteration of TFT LCD technology, offering enhanced performance while retaining the core TFT architecture. Below, we explore their technical distinctions and highlight specialized applications, including innovative form factors like the 2.51 inch Square TFT LCD and UART-enabled 3.2 inch TFT panels.

Structural Basis and Functional Improvements

TFT LCDs rely on thin-film transistors to control individual pixels, enabling precise image production through liquid crystal manipulation. This "active matrix" design revolutionized displays by offering faster response times and better color reproduction than older passive matrix screens. However, traditional TFT displays faced limitations such as narrow viewing angles and color distortion when viewed off-axis.

IPS technology addresses these shortcomings by reorienting liquid crystal molecules horizontally rather than vertically. This adjustment allows light to pass through consistently at extreme angles (up to 178°), making IPS ideal for collaborative workstations or industrial HMIs requiring 15 inch TFT screens with wide visibility. Additionally, IPS displays achieve superior color accuracy—critical for medical imaging systems using 3.5 inch TFT LCD modules with IPS for diagnostic precision1.

Key Performance Comparisons

• Viewing Angles:
  Standard TFT displays exhibit color shifts beyond 140°, while IPS maintains consistency even at 178°. This makes IPS the choice for flight simulator displays with 19 TFT LCD monitors, where pilots need undistorted visuals from multiple positions.

• Response Times:
  Advanced TFT panels like 2.4 inch Bar TFT LCD achieve 5ms response rates, suitable for basic interfaces. IPS improves this to 4–5ms through optimized molecular switching, enabling smoother transitions in 5.5 inch TFT LCD displays for gaming or video playback.

• Contrast Ratios:
  IPS delivers higher contrast ratios (1500:1 vs 800:1 in standard TFT) due to better light modulation. This enhancement benefits 3.2 inch TFT UART LCD panels used in outdoor IoT sensors, where readability under sunlight is critical.

• Power Efficiency:
  Standard TFT consumes less power, making it ideal for low-energy devices like 0.96 inch Bar TFT LCD status indicators. IPS balances efficiency with performance, often requiring brighter backlights for color accuracy.

Specialized Applications and Form Factors

The versatility of TFT technology allows customization for niche industries:

• Automotive Displays:
  2.4 inch Bar TFT LCD panels integrate into dashboards due to their slim profiles and wide-temperature resilience (−40°C to 85°C). IPS variants with UART 2.8 inch TFT displays support touch interfaces for infotainment systems.

• Industrial HMIs:
  Ruggedized 3.4 inch Circular TFT LCD Displays withstand vibrations in factory settings, while 5 inch TFT LCD modules with resistive touch serve control panels.

• Consumer Electronics:
  Circular designs like the 1.8 inch Circular TFT enable smartwatch displays, and 7 inch IPS TFT LCDs enhance tablet responsiveness.

Interface and Connectivity Innovations

Modern TFT displays integrate advanced communication protocols:

• UART Technology:
  The 3.2 TFT LCD UART TOUCH panel simplifies wiring with serial communication, ideal for Raspberry Pi projects requiring minimal GPIO usage2.

• SPI Integration:
  High-speed SPI interfaces in 1.44 inch IPS TFT LCDs support real-time data updates for wearable devices.

IPS as a TFT Subset: Why the Distinction Matters

Despite marketing narratives, IPS cannot exist independently of TFT technology. The TFT layer remains essential for pixel addressing, while IPS governs the liquid crystal arrangement. This relationship explains why:

• Custom TFT modules like 2.76 inch Circular TFT LCD Displays can adopt IPS for wider viewing angles.

• Industrial TN TFT screens prioritize response speed over color fidelity, whereas IPS TFT monitors dominate sectors requiring visual accuracy.

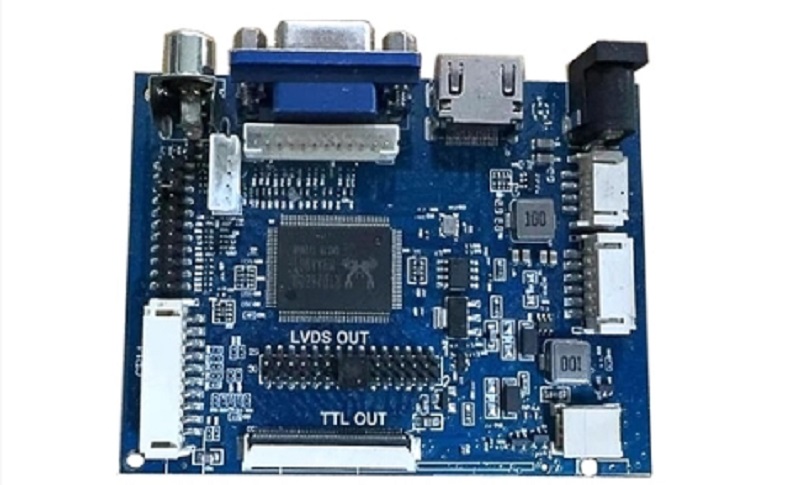

Recent advancements in TFT LCD controller boards allow OEMs to hybridize technologies—for example, combining IPS with 800x1280 TFT LCD modules for 4K signage.

Choosing Between IPS and Standard TFT

Selecting the right technology depends on use-case priorities:

Conclusion

IPS represents a refined evolution of TFT LCD technology, offering superior color accuracy and viewing angles at the cost of marginally higher power consumption. However, standard TFT remains indispensable for cost-sensitive or power-constrained applications. Innovations like UART-enabled panels and automotive-grade TFTs demonstrate the adaptability of this core technology across industries. By understanding their shared foundation and distinct advantages, engineers can optimize display solutions—from 2.51 inch Square TFT LCDs for retail POS systems to IPS-driven 27 TFT monitors for graphic design studios.
