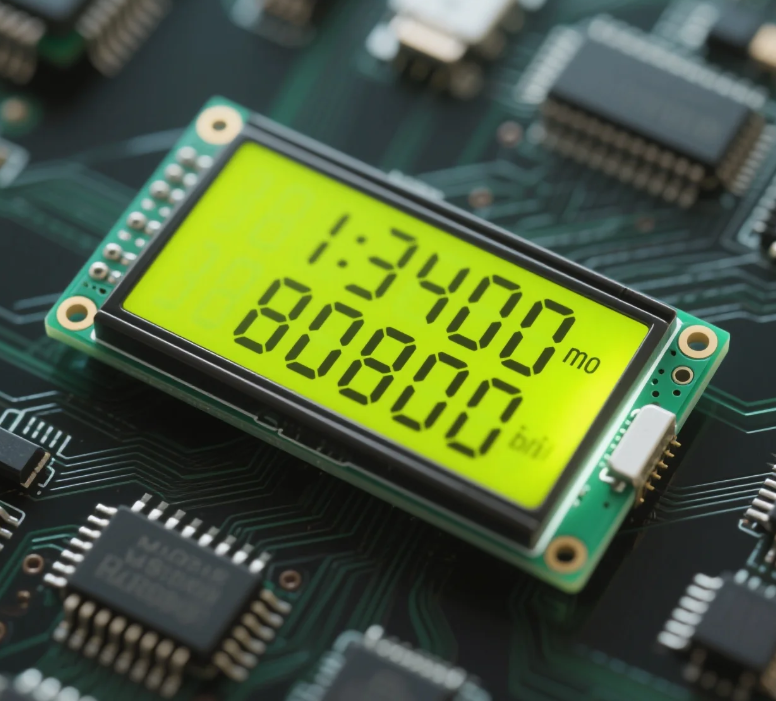

What Is Liquid Crystal Display Module?

Liquid Crystal Display (LCD) modules are compact, integrated systems that combine liquid crystal panels, driver circuits, backlighting, and control electronics. These precision-engineered components form the visual interface for modern electronics, enabling seamless interaction across industries—from medical diagnostics to automotive infotainment. Below, we analyze their architecture, operational advantages, and liquid crystal display applications, supported by comparative data and design insights.

Core Components of LCD Modules

An LCD module’s functionality depends on the synergy of four critical subsystems:

1. Liquid Crystal Panel

• Contains millions of pixels manipulated by an electric field to control light passage.

• Available in twisted nematic (TN), vertical alignment (VA), or in-plane switching (IPS) configurations for varying viewing angles and color accuracy.

2. Driver Circuit & Controller IC

• Converts input signals (HDMI, LVDS, or RGB) into voltage patterns for pixel activation.

• Example ICs: STM32 microcontrollers for industrial HMIs, RA8875 for high-resolution panels.

3. Backlight Unit

• LED arrays (edge-lit or direct-lit) provide uniform illumination.

• Advanced modules integrate local dimming for improved contrast ratios (>3000:1).

4. Touch Interface (Optional)

• Resistive: Pressure-sensitive layers (4-wire or 5-wire) for rugged environments.

• Capacitive: Projected capacitive (PCAP) technology supporting 10-point multi-touch.

Key Advantages Over Legacy Technologies

LCD modules have largely replaced CRT and passive matrix displays due to their unparalleled efficiency and adaptability:

Comparative analysis of display technologies.

These attributes make LCD modules ideal for liquid crystal display applications requiring compact form factors, such as wearable medical monitors or aerospace control panels.

Types of LCD Modules

Modules are categorized by display output and use case:

1. Monochrome LCDs

• Segment Displays: Custom icons or alphanumeric characters (e.g., microwave timers).

• Dot Matrix Displays: 128x64 or 240x128 resolutions for industrial HMIs.




  Parameter	Segment LCD	Dot Matrix LCD
  Resolution	Fixed icons	128x64 / 240x128
  Power Use	0.1–0.5W	0.3–2.5W
  Interface	Parallel / SPI	SPI / I2C
  Cost	0.50–5	8–50




2. Color LCDs

• TFT LCDs: Active matrix with 16.7M colors (24-bit RGB), ideal for consumer electronics.

• IPS LCDs: Enhanced viewing angles (178°), used in tablets and surgical monitors.

Liquid Crystal Display Applications by Industry

The versatility of LCD modules enables their integration into specialized systems across sectors:

Notable examples of liquid crystal display applications.

For instance, 5.7-inch TFT modules with capacitive touch serve airport self-check-in kiosks, while 10.1-inch IPS panels enable interactive menus in smart restaurants.

Design Considerations for Optimal Performance

1. Environment Resilience

• Automotive modules require conformal coating to resist humidity and vibrations.

• Industrial-grade displays need optical bonding to prevent dust ingress.

2. Power Management

• Incorporate LED PWM dimming to reduce energy use in portable devices.

• Example: A 3.5-inch medical LCD consumes 0.8W at 200 cd/m² brightness.

3. Interface Optimization

• MIPI DSI for high-speed video transmission (e.g., 4K surgical monitors).

• LVDS for noise-resistant industrial communication.

4. Optics Customization

• Anti-reflective coatings for outdoor ATMs (700+ cd/m² brightness).

• Privacy filters for banking terminals.

Case Study: A Tier 1 automotive supplier reduced dashboard glare by 60% using a 7-inch TFT module with anti-glare glass and optical bonding.

Challenges in Module Selection

Despite standardized manufacturing, subtle variations impact performance:

1. Backlight Uniformity

• Poor LED arrangement causes “mura” defects (uneven illumination).

2. Color Calibration

• Delta-E < 2 is critical for medical imaging accuracy.

3. Latency

• Touch response times below 15 ms ensure smooth GUI interactions.

Future Trends in LCD Module Technology

1. Mini-LED Backlighting

• 10,000+ dimming zones for HDR performance in 15.6-inch gaming displays.

2. Flexible LCDs

• Ultra-thin glass substrates enabling curved automotive displays.

3. Embedded AI

• On-device processors for gesture recognition in smart refrigerators.

Conclusion

LCD modules remain indispensable in bridging digital interfaces with human interaction. Their evolution—from monochrome segment displays to sunlight-readable IPS variants—has unlocked liquid crystal display applications once deemed impossible. Engineers can deliver optimized solutions across industries by aligning module specifications with operational demands (e.g., ruggedization, touch precision). As innovations like Mini-LED and MIPI DSI redefine performance benchmarks, LCD technology continues to adapt, ensuring its relevance in an increasingly connected world.
